ADEMCO 6128 Installation Manual

KEYPAD FEATURES
Backlit Display
Dedicated Panic Keys
Flush Mount Option
All the above keypads have backlit keys, are keypad addressable, have a Red ARMED indicator and a Green READY indicator.
ADEMCO CONTROLS
VIA16*/4110XM* / 4110DL*
VIA30P † */ VIA30PSE † *
VISTA 10SE † */VISTA 20SE † *
4120XM † *
4140XMP */VISTA 40 † **
VISTA-50 P † **/VISTA-50 UL † ** /
VISTA-128B † **
5110XM † */5120XM † *
5140XM † **/VISTA-32FB † **/ VISTA-
100 † **/VISTA 128FB † **
†
A 2-Line alpha-numeric display keypad must be used to program these controls.
*
Use non-addressable mode with these controls (set to address 31).
**
Use addressable mode (addresses 00–30).
***
Keypad color subject to approval of local authority having jurisdiction.
Note: Permanent display backlighting is an option on some controls; see the control's instructions.
GENERAL INFORMATION
The 6128, 6137, 6137R, 6138, 6139, and 6139R Remote Keypads are
keypad addressable (no DIP switches), and are intended for use
with the controls listed in the table above. They can be set for the
non-addressable operation (address 31) if required by the control
with which they are used.
Note: The 6137R and 6139R have red bezels instead of gray.
Otherwise, they are exactly the same as the 6137 and 6139,
respectively.
The 6128 and 6137 are fixed-word keypads that provide a two-digit
display for zone identification, and a set of predesignated English
language prompts (e.g., ALARM, AWAY, STAY, CHECK, etc.) for
indicating the system's status.
The 6138 is a one-line alpha keypad that displays a 2-line message
one line at a time. To display the second line of information, press
the [#] key. Press the [#] key again to return to the first line of
information. The display automatically returns to the first line of
information if no key is pressed for three seconds.
Note: After pressing the [#] key to view the second line or return to
the first line, wait at least three seconds before entering a control
panel command (e.g., arm the system).
The 6139 is a two-line alpha keypad equipped with a programmable
2-line, 32-character (16 characters per line) English language
display for complete zone identification (if descriptors are
programmed), plus system status.
The keys on the keypads are located behind a decorative door, and
are continuously backlit for convenience.
decorative door has space for a zone ID label (supplied) on which
the installer can write descriptions of each zone for handy user
reference.
All keypads allow panic alarm activation (if enabled in control
programming). For the 6128, panic alarms are activated by
]
pressing key pairs [1] & [✱ , [✱] & [#], and [3] & [#].
,167$//$7,21*8,'(
6128
Fixed-Word Fixed-Word
Keypad
No Yes (see note
No
No
9
Yes
Yes
Yes
Yes
Yes
No
No
The inside of the
6128, 6137, 6137R, 6138, 6139, & 6139R
6137/6137R 6138
1-Line Alpha
Keypad Keypad
Yes (see note
below) below)
Yes Yes
No Yes
9 9
Yes, 6137 No
Yes, 6137 Yes
Yes, 6137 No
Yes, 6137 No
Yes, 6137 No
Yes, 6137 or
No
6137R***
No No
The 6137/6137R, 6138, and 6139/6139R are equipped with
dedicated single keys for panic activation — keys A, B, and C (the D
key is not used as panic), which are equivalent to the [1] & [✱],
[✱] & [#], and [3] & [#] keys, respectively.
Single panic keys (A, B, and C) must be held down for at least
2 seconds to activate an alarm.
A set of adhesive-backed labels with some typical panic symbols
(i.e., fire, police, personal emergency, etc.) is provided. These labels
can be placed on or next to the keys to identify each key's function
for the end user (as determined by the control panel's capability
and programming; see the control's instructions).
ARMED READY
A
B
C
INSTANT
D
READY

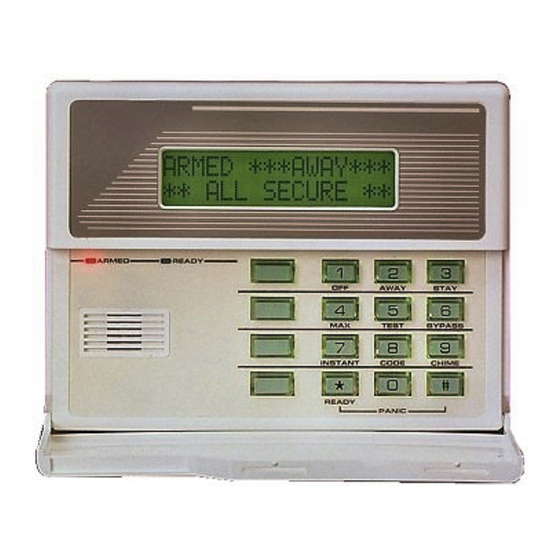

Figure 1. 6139 Keypad (Shown for Reference)
WIRING AND INSTALLATION
The keypads can be surface mounted directly to a wall, or to a
single- or double-gang electrical box. For flush mounting the 6138
and 6139/6139R to drywall, use the optional 6139TRK Flush Mount
Kit (6128 & 6137/6137R cannot be flush mounted).
REMOTE KEYPADS
6139/6139R
2-Line Alpha Keypad
Yes (see note below)
Yes
Yes
9
No
Yes, 6139
Yes, 6139
Yes, 6139
Yes, 6139
Yes, 6139 or 6139R***
Yes, 6139 or 6139R***
1 2 3
OFF AWAY STAY
4 5 6
MAX TEST BYPASS
7 8 9
CODE CHIME
* 0
#
PANIC
N6752V9 2/03

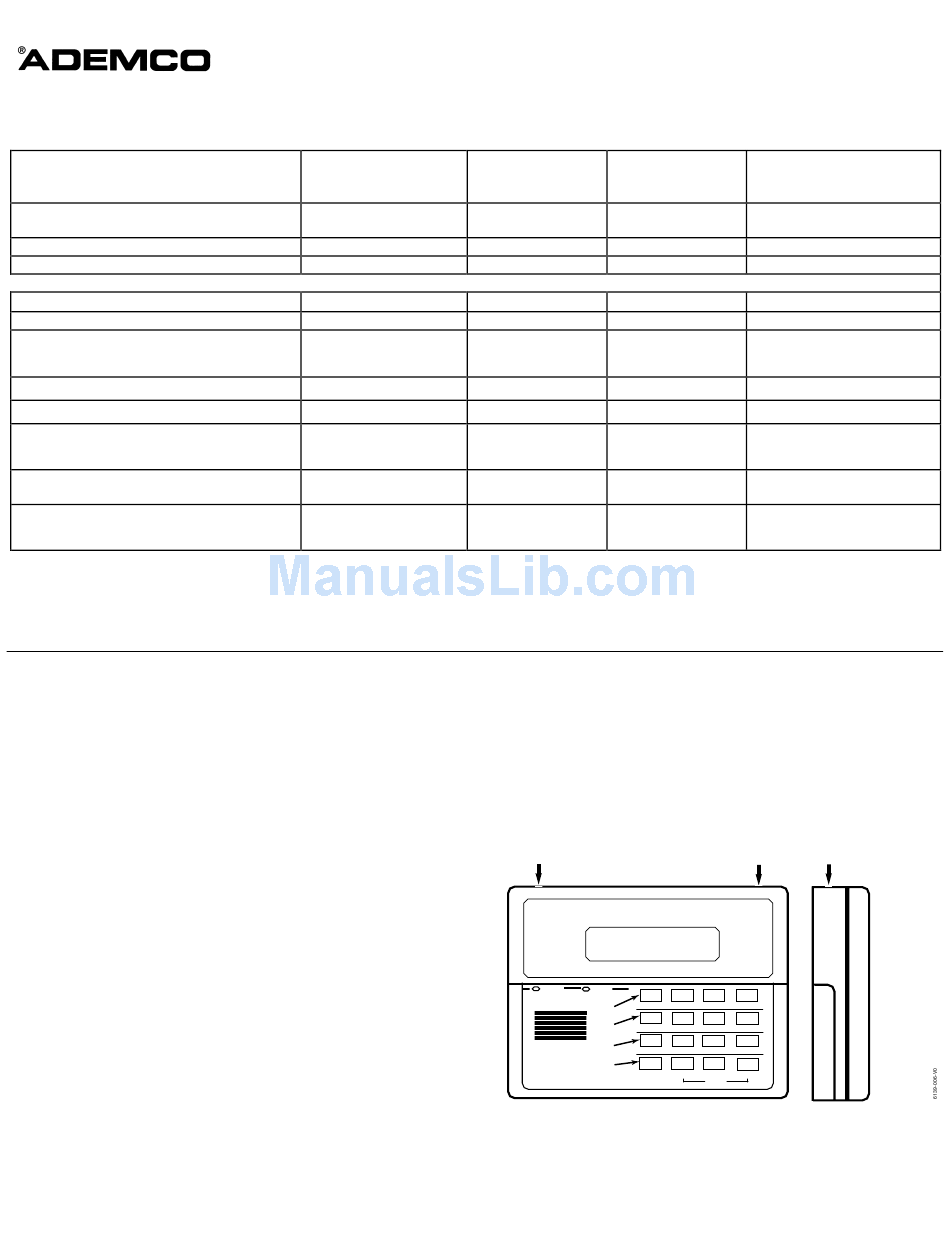

Remove
case back
by pushing
down the
2 "snaps"
along the
keypad's
top edge
and pulling
the case
apart.
