ADEMCO 6128RF Installation Instructions Manual

About the 6128RF

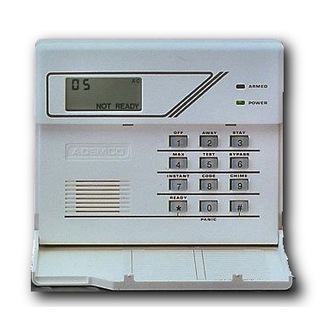

The 6128RF is a combination unit that contains:
•
A 6128 Fixed Addressable Keypad
•
A 5881M RF Receiver
The 6128RF Keypad/Transceiver may be used on any control panel that supports the 6128 Keypad.
Features of the 6128RF
Wireless Features
•
Supports up to 8 wireless keys locally (programmed directly into 6128RF) without occupying any zones of
the control panel.
•
Supports button-type transmitters (5804, 5804BD) for local operation.
•
Supports a maximum of 16 transmitters programmed into any 5800 Series supported control panel.
•
Provides low battery indications for the local wireless keys.
•
Supports wireless keys with encryption (high security) (e.g., 5804E).
•
Provides a nominal range of 200' for the RF transmitters (some transmitters have a shorter range).
•
Supports RF Jam detection when the receiver is enabled.
•
Provides wireless key support for control panels that do not support RF (such as 4110DL).
The following transmitters are not intended for use in UL installations:
U L
5804, 5804BD, 5804BDV, 5804WATCH, 5804E and 5827BD.
Programming Features
•
Provides an "Auto Enroll" mode for programming of the wireless keys.
•
Provides a method for deleting a serial number and re-enrolling a new one in its place.
•
Provides default settings for the functions of the wireless keys.
Additional Features
•
Can send status signals (Armed, Ready, etc.), to bi-directional units such as 5804BD and 5827BD.
•
Can operate the on-board relay in conjunction with the receiver (trip a garage door opener).
•
Can activate relays programmed into the control panel.
•
Provides an "End User" mode to enable/disable local wireless keys (i.e., if a user accidentally loses a
wireless key). See the 6128RF User Guide for this procedure.
Application Guidelines for the 6128RF
Use the following guidelines when planning an installation:
•
Local wireless keys are programmed directly into the 6128RF and may be used regardless of whether the
RF receiver is enabled or disabled.
•
If using bi-directional devices, be sure to enable the transmitter module in the 6128RF.
•
If transmitters are programmed into the control panel, be sure to enable the receiver. (Make sure you do not
exceed the number of receivers supported by the control panel).
•
If a local wireless key is programmed to arm/disarm or to trigger a relay on the control panel, a user code
must be entered into the 6128RF. This user code must also be programmed into the control panel.
•
You must set the House ID only if you are using RF keypads and/or Bi-directional devices AND the House
ID Source is the 6128RF (Local).
INSTALLATION INSTRUCTIONS
Keypad/Transceiver
•
A 5800TM Transmitter Module
•
A normally-open relay output.
K3897V1 8/02
6128RF
