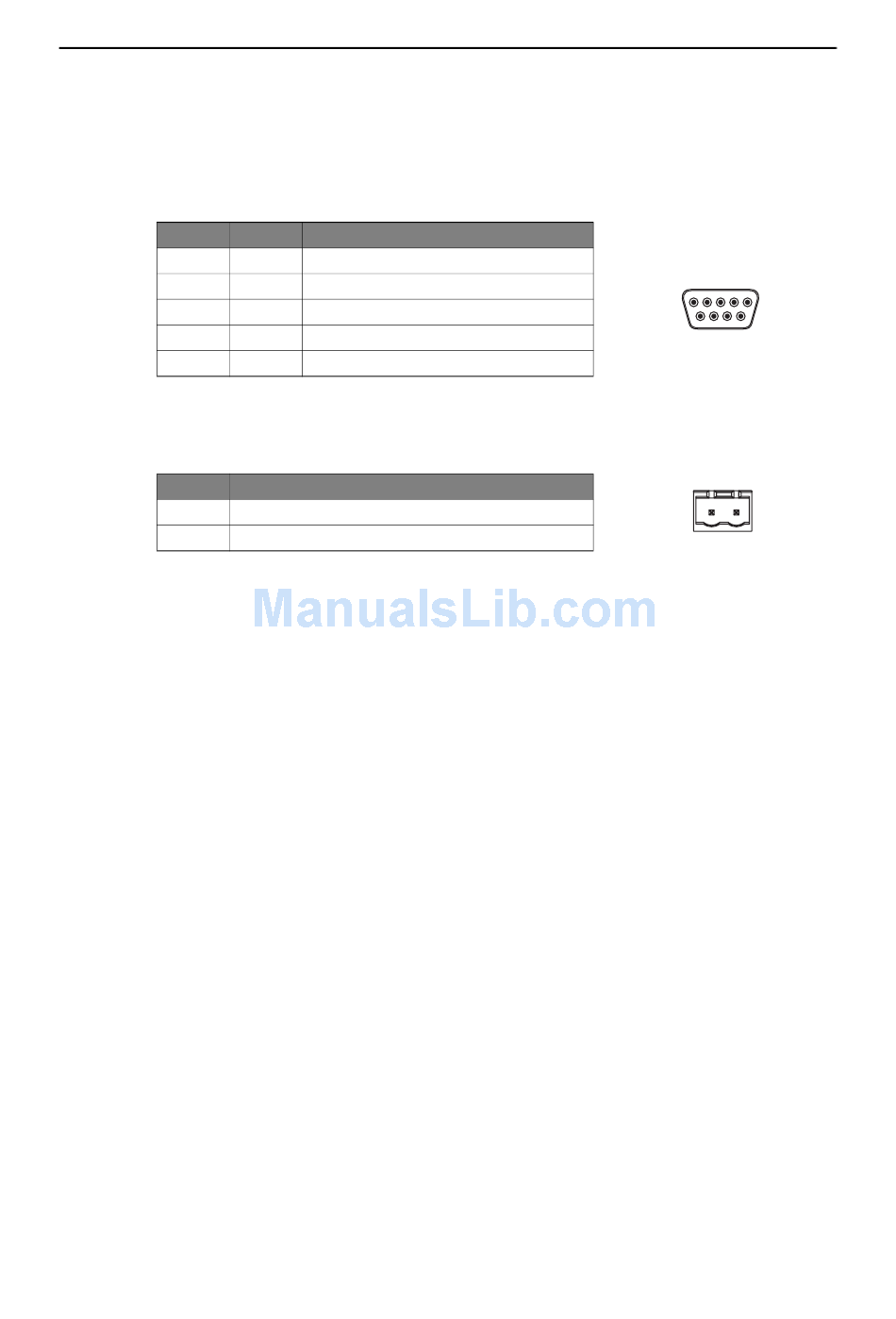

A. Connector Pin Assignments
A.1 Modbus Plus Connector
Pin Signal
Housing PE
1 Shield
2 Line B
3 Line A
4... 9 -
A.2 Power Connector
Pin Description
1 +24V DC
2 GND
Notes:
• Use 60/75 or 75×C copper (CU) wire only.
• The terminal tightening torque must be between 5... 7 lbs-in (0.5... 0.8 Nm)
Anybus Communicator for Modbus Plus
Doc.Rev. 3.01
Description
Protective Earth (PE)
Bus cable shield
RS485 Line B
RS485 Line A
(reserved, do not connect)
Appendix A
5 (female) 1
9 6
1 2
Doc.Id. SCM-1200-093
