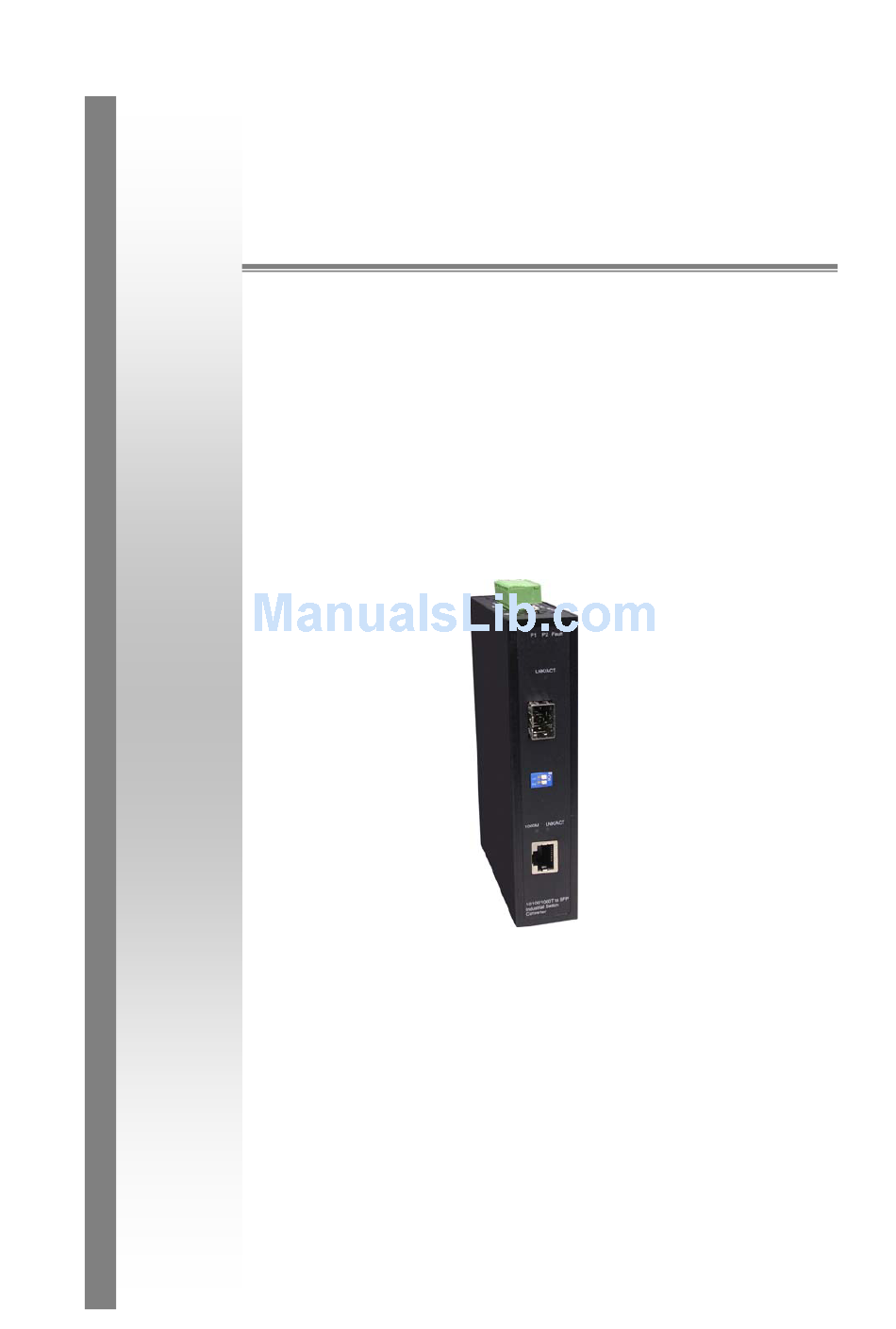

- Page 1 Lantech IGC-0101GB 10/100/1000T to Mini-GBIC Industrial Switch Converter User Manual...
-
Page 2: Table Of Contents
Lantech Content Overview ............. 1 Introduction .............. 1 Features ..............3 Packing List .............. 3 Safety Precaution ............. 3 Hardware Description ......... 4 Front Panel ............... 4 Top View ..............5 Wiring the Power Inputs ........... 5 Wiring the Fault Alarm Contact ........ 6 LED Indicators ............ - Page 3 Lantech DIN-Rail Mounting ..........14 Wall Mount Plate Mounting ........16 Hardware Installation ........17 Installation Steps ............ 17 Troubles shooting ..........19 Technical Specification ........20...
- Page 4 Lantech FCC Warning This Equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy.
-
Page 5: Overview
Lantech Overview Introduction The 10/100/1000TX to MINI-GBIC Industrial Switch Converter is designed to convert Gigabit Ethernet networks to Gigabit fiber networks by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmission capability. - Page 6 Lantech Dual Power Input To reduce the risk of power failure, the 10/100/1000TX to MINI-GBIC Industrial Switch Converter provides +12 ~ 48 V dual power inputs. If there is power failure, 10/100/1000TX to MINI-GBIC Industrial Switch Converter will switch automatically to the secondary power input.
-
Page 7: Features
Lantech Features Provides 1 x SFP (mini-GBIC) type socket (10/100/1000TX to MINI-GBIC model) Provides 1 x 10/100/1000Mbps Ethernet ports with RJ-45 connector Supports full/half duplex flow control Supports MDI/MDI-X auto-crossover Supports surge (EFT) protection 3,000 V for power line Supports 6,000 V... -
Page 8: Hardware Description
Lantech Hardware Description Hardware Description In this paragraph, we will introduce the Industrial switch converter’s In this paragraph, we will introduce the Industrial switch converter’s hardware spec, port, cabling information, and wiring installation. hardware spec, port, cabling information, and wiring installation. -
Page 9: Top View
Lantech Top View The top panel of the Industrial Switch Converter is equipped one terminal block connector of two DC power inputs. Top panel of the Industrial Switch Converter Wiring the Power Inputs Please follow the steps below to insert the power wire. -
Page 10: Wiring The Fault Alarm Contact
Lantech 2. To tighten the wire-clamp screws for preventing the DC wires to loose. Wiring the Fault Alarm Contact The fault alarm contact is in the middle of terminal block connector as the picture shows below. Inserting the wires, it will detect the fault status which the power is failure or port link failure (for managed model) and form an open circuit. -
Page 11: Led Indicators
Lantech LED Indicators There are few LEDs display the power status and network status located on the front panel of the Industrial switch converter, each of them has its own specific meaning as below table. Table 2.1: Industrial Switch Converter LED Definition... -
Page 12: Dip-Switch
Lantech DIP-Switch The DIP-Switch is used to configure operation mode for LLF (Link Lost Forwarding) and power alarm. The default value of DIP-switch is OFF. Table 2.2: Industrial Switch Converter DIP-Switch Definition S/W No Status Description Enable Power Alarm Disable Power Alarm... -
Page 13: Ports
Lantech Ports RJ-45 ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX or 1000Base-T devices connections. Auto MDI/MDIX means that you can connect to another switch or workstation without changing straight through or crossover cabling. See figures as below for straight through and crossover cable schematic. -
Page 14: Cabling
Lantech Straight Through Cable Schematic Cross Over Cable Schematic Cabling Twisted-pair segment can use unshielded twisted pair (UTP) or shielded twisted pair (STP) cabling. The cable between the link partner (switch, hub, workstation, etc.) and the converter must be less than 100 meters (328 ft.) long and comply with the IEEE 802.3ab 1000Base-T... - Page 15 Lantech First, insert the transceiver into the SFP module. Notice that the triangle mark is the bottom of the module. Figure 2.8: Transceiver to the SFP module Figure 2.9: Transceiver Inserted...
- Page 16 Lantech Second, insert the fiber cable of LC connector into the transceiver. Figure 2.10: LC connector to the transceiver To remove the LC connector from the transceiver, please follow the steps shown below: First, press the upper side of the LC connector from the transceiver and pull it out to release.
- Page 17 Lantech Second, push down the metal loop and pull the transceiver out by the plastic part. Figure 2.12: Pull out from the SFP module...
-
Page 18: Mounting Installation
Lantech Mounting Installation Mounting Installation DIN-Rail Mounting DIN-Rail Mounting The DIN-Rail is screwed on the industrial switch when out of factory. If The DIN-Rail is screwed on the industrial switch when out of factory. If the DIN-Rail is not screwed on the industrial switch, please see the the DIN-Rail is not screwed on the industrial switch, please see the following figure to screw the DIN-Rail on the switch. - Page 19 Lantech First, insert the top of DIN-Rail into the track. Then, lightly push the button of DIN-Rail into the track. Check the DIN-Rail is tightly on the track. To remove the industrial switch from the track, reverse steps above.
-
Page 20: Wall Mount Plate Mounting
Lantech Wall Mount Plate Mounting Follow the steps below to mount the industrial switch with wall mount plate. Remove the DIN-Rail from the industrial switch; loose the screws to remove the DIN-Rail. Place the wall mount plate on the rear panel of the industrial switch. -
Page 21: Hardware Installation
Lantech Hardware Installation Hardware Installation In this paragraph, we will describe how to install the 5-port In this paragraph, we will describe how to install the 5-port 10/100/1000Base-TX Industrial Switch converter and the installation points for 10/100/1000Base-TX Industrial Switch converter and the installation points for the attention. - Page 22 Lantech To hang the Industrial switch converter on the DIN-Rail track or wall, please refer to the Mounting Installation section. Power on the Industrial switch converter. How to wire the power; please refer to the Wiring the Power Inputs section. The power LED on the Industrial switch converter will light up.
-
Page 23: Troubles Shooting
Lantech Troubles shooting Verify that you are using the right power cord/adapter (DC 12 ~ 48V), please don’t use the power adapter with DC output higher than 48V, or it will burn this switch converter down. Select the proper UTP cable to construct your network. Please check that you are using the right cable. -
Page 24: Technical Specification
Lantech Technical Specification The technical specifications of the Industrial Switch Converter are listed as follows. Communications IEEE 802.3, 802.3ab, 802.3u, 802.3x, Standard 802.3z 10/100/1000Base-TX, 1000Base-SX, 1000Base-LX Multi-Mode Fiber: 550m (SX) Transmission Distance Single-Mode Fiber: 10km (LX) SFP (mini-GBIC) Fiber: Up to 110km... - Page 25 Lantech Power 10/100/1000TX to Mini-GBIC model: Power Consumption 5.28 W 10/100/1000TX to 1000SX/LX model: 5.19 W 2 x Unregulated +12 ~ 48 V Power Input 1 Relay Output Fault Output Mechanism 30 x 95 x 140 mm Dimensions (WxDxH) IP30, Metal shell with solid mounting kits...
- Page 26 Lantech Certifications UL, cUL, CE/EN-60950-1 Safety FCC Class A CE EN61000-4-2 (ESD) CE EN61000-4-3 (RS) CE EN-61000-4-4 (EFT) CE EN61000-4-5 (Surge) CE EN61000-4-6 (CS) CE EN61000-4-8 CE EN61000-4-11 CE EN61000-4-12 CE EN61000-6-2 CE EN61000-6-4 IEC60068-2-32 Free Fall IEC60068-2-27 Shock IEC60068-2-6...
