1. Checklist
The package should contain the following items:
- Media Converter
- User's Guide
Please notify your sales representative immediately if any item is
missing or damaged.
2. Overview
This Media Converter supports IEEE802.3at PoE feature and is
specifically designed to supply power to PoE-enabled devices
such as WiFi AP or surveillance cameras. It is a power supply
equipment (PSE) that can transmit data and supply power at the
same time to the powered devices (PD). The maximum cable
distance that can reach the powered devices from the Media
Converter is up to 80M, allowing your powered devices to be
installed in a place where power is not easily accessible.
Besides, this Media Converter aims at industrial applications that
demand wide range of operating temperature and require
redundant power supplies to create a reliable and stable
networking environment in the event of power failure. It can also
be mounted on the wall or onto 35mm DIN rail using DIN rail clip
on the media converter. The installation and operation procedures
are simple and straightforward. Operation status can be locally
monitored through a set of diagnostic LED indicators located on
the front panel.
Major Features:
- Support IEEE 802.3, 802.3u, 802.3ab, 802.3z, 802.3x, 802.3at
standards
- Auto-Negotiation in TP port
- Store and Forward Switching Mechanism
- Support MDI/MDIX Auto-Crossover
- Support Flow Control
- Support fault alarms for power failures
- Support 1K MAC address
- Support 9K bytes Jumbo Frame
- Support 32k bytes Memory Buffer
- Support redundant AC and DC power supply
- Support wide range of operating temperature (-20
- Support DIN Rail and Wall Mounting
-
3. Network Installation
- Attach fiber cable from the Media Converter to the fiber
network.
- Attach a UTP cable from the 10/100/1000Base-TX network
to the RJ-45 port on the Media Converter.
- Connect the power adapter to the Media Converter and
check that the Power LED lights up. The TP Link/ACT and
F/O Link/ACT LED will light when all the cable connections
are satisfactory.
4. Terminal Block
TB1 and TB2 Power Supply: There are two pairs of power
supply connection (TB1 and TB2) on the terminal block for power
redundancy purpose. You can use both pairs of power supply
(TB1 and TB2) or use either one pair of power supply on the
terminal block and AC external power supply to create redundant
setup. The redundant power supply will take over seamlessly
when one power source is down to protect your device or
network from the loss of power. When you use only one power
supply (no redundant power is available), the LED Power/Port
Status will flash in orange to alert the user.
Use flat-head
screwdriver to
loosen and tighten
the screw.

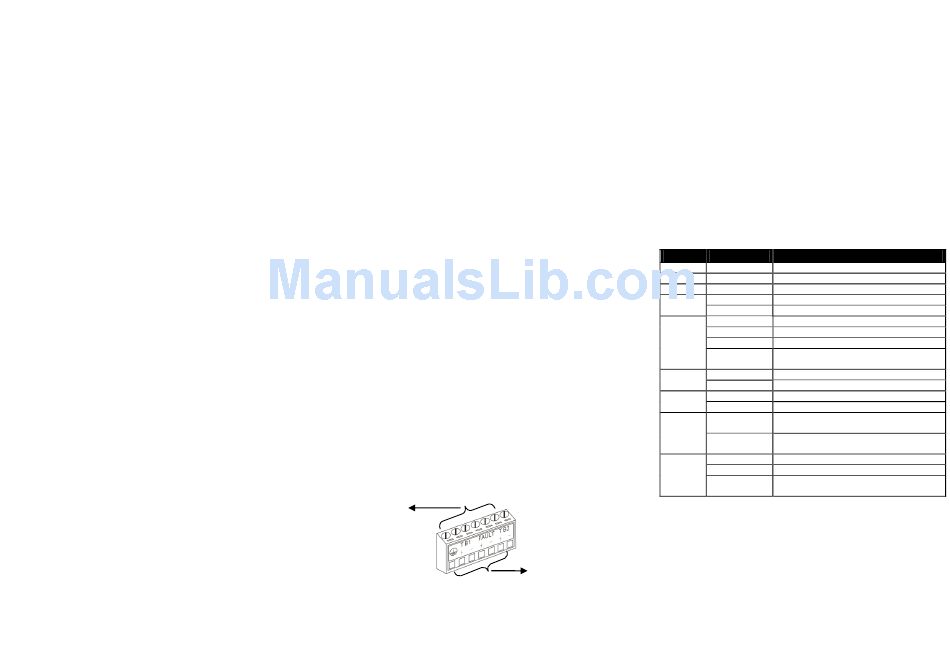

Figure 1. Terminal Block Front and Top View
5. Link Alarm
Link Alarm allows users to easily identify and diagnose the linking
status. TP and F/O can link up only when both linking conditions
are good. In addition, if the TP or F/O port link is down during
operation, the other port will also be turned down to alert the user.
Setting Link Alarm DIP switch to Enable gives the user a
transparent link indication between two network devices
interconnected by the Media Converter.
o o
C~60 C)
If Link Alarm is disabled, the TP and F/O will link up based on their
individual linking condition. Furthermore, if either port link (TP or
F/O) is down during operation, it will not turn down the other port
link.

6. LED Description

LED
PW ADC
PW T1
PW T2
TP
Link/ACT
Green Blinking TP is receiving and transmitting data.
Speed
FDX
F/O
Link/ACT Green Blinking F/O is receiving and transmitting data.
PWR/Port
Status
Green Blinking Device does not provide power.
PoE
Insert positive or
negative wire as
indicated.
Color Function
Green AC or DC power is available.
Green Terminal Block 1 powers up.
Green Terminal Block 2 powers up.
Green TP link is up.
Off Link is down or TP works in 10M.
Green TP works in 100M.
Orange TP works in 1000M.
Green/Orange
TP is receiving and transmitting data.
Blinking
Off TP port works in half duplex mode.
Green TP port works in full duplex mode.
Green F/O link is up.
TP or F/O link is down. (This indication only
Orange
works when DIP 8 and 9 are set to Enable.)
Orange Redundancy system is abnormal (only one
Blinking power source is available).
Green Device provides power and works normally.
Fast Green Device's PoE function is working
Blinking abnormally.
