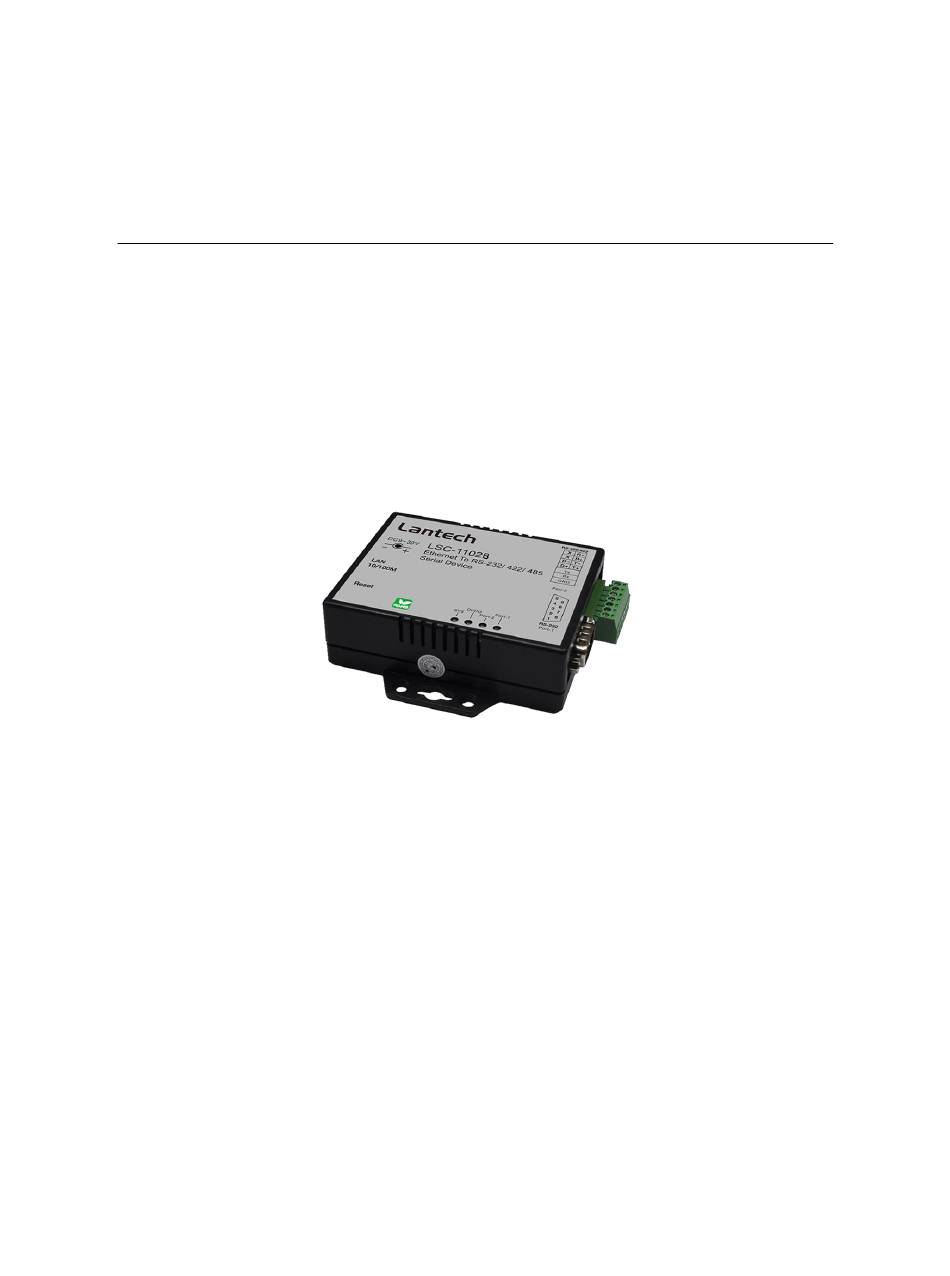

- Page 1 Lantech LSC-1102B SERIAL TO TCPIP CONVERTER User Manual V1.0 Sep 2016...
-
Page 2: Table Of Contents
Table of Contents 1. Introduction ……………………………………………… Overview ……………………………………………………… Product Specifications ………………………………………… 2. Description & Installation ……………………………… 10 Product Panel Views …………………………………………… 10 LED Indicators ………………………………………………… 12 Wiring Architecture …………………………………………… 13 RS-232 ………………………………………………………… RS-422/RS-485 ………………………………………………… …………………………… 3. Converter Configuration 4. Setting Verification ……………………………………... -
Page 3: Introduction
Introduction Lantech LSC-1102B is a full set serial device within two serial ports as one is a RS-232 port and other one is a 422/ 485 (Auto-Detective) and it provides one socket connection port. Lantech provides new ways of connecting legacy serial devices to a Local Area Network (LAN) or Wide Area Network (WAN). -
Page 4: Product Specifications
Product Specifications Serial Ports Port RS-232 * 1 Port ( DB9 ) , RS- 422 / 485 * 1 Port ( Auto Detect ) Speed 300 bps ~ 230.4 Kbps Parity None , Odd , Even , Mark , Space Data Bit 5 , 6 , 7 , 8 1 , 2... -
Page 5: Description & Installation
Transforming the sensor which connecting on the Lantech TCP/IP converters equipment statuses into the TCP/IP package data and send out by the Ethernet DataStream ( The Lantech TCP/IP converters must indicate the IP address and Com Port) or activating the indicated Digital output (Remote WinSock must indicate the... - Page 6 Connect the power line to the power jack at the left side of LSC-1102B TCP/IP converter device and put the adapter into the socket. If the power is properly supplied, the “PWR” red color LED will be on..
-
Page 7: Led Indicators
Rx (Red): Data received indicator (When data are receiving to the network, the LED will blink.) SYS (Green): It is a device statues indicator (When Lantech TCP/IP converter is operated in normal statues, the LED will blink once per second.) -
Page 8: Wiring Architecture
Wiring Architecture RS-232 Wiring Architecture LSC-1102B LSC-1102B LSC-1102B RS-422/RS-485 Wiring Architecture LSC-1102B LSC-1102B... - Page 9 When you finish the steps mentioned above and the LED indicators are as shown, the converter is installed correctly. You can use the Setup Tool “CVBrowser.exe” to setup the IP Address. To proceed the advanced parameter setup, please use a web browser (IE or Netscape) to continue the detailed settings.
-
Page 10: Converter Configuration
Converter Configuration Software installation 1. Copy CVBrowser.EXE file from CD to your desktop . 2. Execute CVBrowser.EXE. - Page 11 Hardware Installation Connect LSC-1102B to your desktop directly or by switch. Power on LSC-1102B Click scope icon of CVBrowser to search the LSC-1102B(Default IP 192.168.0.100) Make sure the IP of your desktop and LSC-1102B are in the same domain (192.168.0.x)
- Page 12 How to change the IP address of LSC-1102B 5-1.Hoover your mouse to the icon of LSC-1102B 5-2.click the icon and it will be highlight by blue color...
- Page 13 5-3.choose Modify IP 5-4.Change the IP address of LSC-1102B 5-5.Set the password of log in...
- Page 14 Fresh the CVBrowser and find the new IP address Press WEB Browser Log in LSC-1102B via web browser.
- Page 15 Set Serial I/O Port...
- Page 16 Remember to press update after you modify the setting...
- Page 17 Factory Default Setting If by chance, you forget the setup password, or have incorrect settings making the converter inoperable, there are two ways to reset the setting and the following procedures can be used to reset all settings to factory default: 1.
-
Page 18: Setting Verification
Setting Verification After completing the wiring and parameter setting, we should verify if the setting is correct. This chapter will introduce how to use a single computer to test if the converter behaves well. The operating system can be Windows 95, 98, ME, XP, 2000. The “Hyper Terminal”... -
Page 19: Hyper Terminal For Tcp/Ip Winsock
Hyper Terminal for TCP/IP WinSock Initiate a Hyper Terminal from the Start Menu in Windows (see Figure 6.1), give a terminal name, choose an icon, and press “OK” button (see Figure 6.2). (Figure 6.1) - Page 20 (Figure 6.2) Select “TCP/IP(Winsock)” option at the “Connect using:” field (see Figure 6.3).
- Page 21 (Figure 6.3) After “OK” button is pressed, Figure 6.4 appears. Enter the converter’s IP address (e.g. 192.168.123.10) at the “Host address:” field, and the Socket port number set for the Serial Port 1 at the “Port number:” field (e.g 4660). (The Socket type of the Serial Port 1 should be “TCP Server”.)
- Page 22 (Figure 6.4) After “OK” button is pressed, Figure 6.5 appears. If the Hyper Terminal connects with the converter successfully, the time clock at the left lower corner “Connected hh:mm:ss” will start counting.
- Page 23 (Figure 6.5)
-
Page 24: Hyper Terminal For Com Port
Hyper Terminal for COM Port Initiate another Hyper Terminal as a COM Port Terminal (in Figure 6.3, select COM 1 or other COM port instead of “TCP/IP (Winsock)”). Set the COM port Properties to be the same as those set for the Serial Port 1 of the converter. (Figure 6.3) -
Page 25: Data Transmission
Data Transmission When all steps described above are finished, type any characters on the COM Port Terminal and check if the typed characters are also displayed on the TCP/IP Winsock Terminal. Alternatively, check if the characters typed on the TCP/IP Winsock Terminal are also displayed on the COM Port Terminal. -
Page 26: Appendix Afaq
Q. Why can’t the CVBROWSER.exe detect the converter on the network? A. Please check □ □ □ if the power is properly plugged to the converter. □ □ □ if the network cable is properly connected between the converter and the Hub. Refer to the “Hardware Installation”... -
Page 27: Appendix B - Pin Outs And Cable Wiring
Pin outs and Cable Wiring □ □ DC-In Jack □ □ RJ-45 Pin Assignment □ □ LSC-1102 Series Interface Nameplate View RS-232 Pin No. Name Lantech DC 9V ， CONVERTER RS-232 RJ-45 Connector Picture RJ-45 TX RX RJ-45 RS-422/485 10/100M RS-422/485 Pin No. -
Page 28: Rs-232 Wiring Diagram
□ □ RS-232 Wiring Diagram □ Serial Device Lantech Converter 2 RX 3 TX 3 TX 2 RX 5 GND 5 GND 7 RTS 8 CTS 8 CTS 7 RTS □ □ RS-422 Pin Assignment □ The pin assignment scheme for a 4-pin RS-422 is given below. -
Page 29: Appendix C Firmware Upgrade
Firmware Upgrade As the firmware of the converter always keeps on enhancing with latest technologies and network standards, if your applications need the latest release of firmware, you will receive a Win32 executable utility and a ROM binary file to upgrade the converter firmware through network: 1.
