Lantech CM-011 User Manual

Fast fiber converter module

Advertisement

Quick Links

Fast Fiber Converter Module
MODEL:CM-011
User Guide
Rev.1.24
29-May-2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CM-011 and is the answer not in the manual?

Questions and answers

Summary of Contents for Lantech CM-011

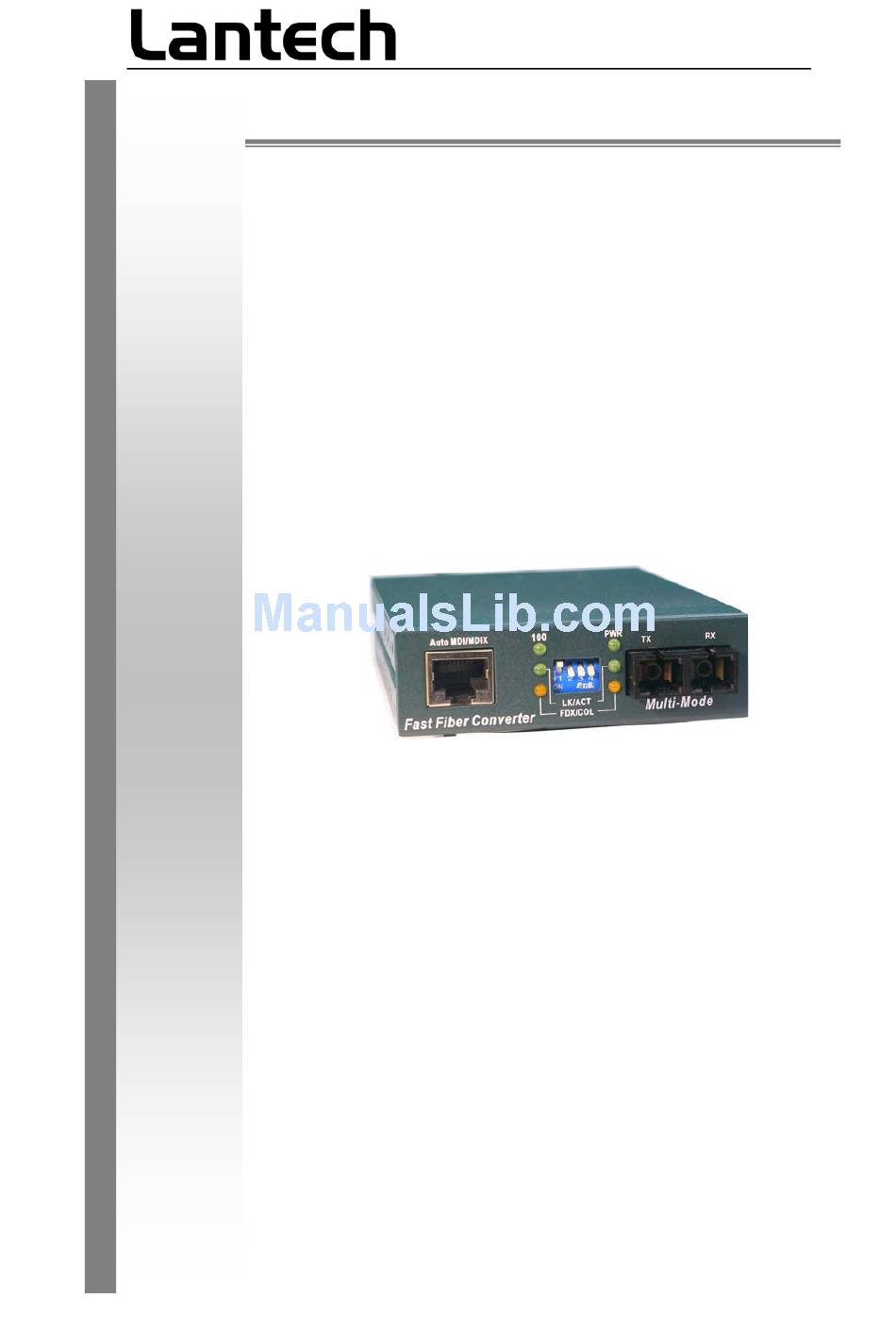

  • Page 1 Fast Fiber Converter Module MODEL:CM-011 User Guide Rev.1.24 29-May-2007...
  • Page 2: Table Of Contents

    Content Introduce ............1 Features............2 Package Contents .......... 3 Hardware Description ........4 Front Panel ............. 4 Ports..............5 LED Indicators ..........5 DIP-switch............7 Rear Panel ............8 Installing Converters module......9 Cabling............10 Troubles shooting .......... 11 Optical Fiber Specification ......
  • Page 3: Introduce

    Introduce The Fast Fiber Converter Module (Auto MDI/MDIX) is a cost-effective solution for the converting between 10/100Base-TX and 100Base-FX cabling, It allows you to extend the cabling distance of your 100Base-FX network up to 2 kilometers for multi-mode fiber or 30 kilometers for single-mode fiber.
  • Page 4: Features

    Features Fast Fiber Converter Module Comply with IEEE 802.3, 802.3u, and 802.3x standards. Convert between UTP cabling and Fiber-optic cabling. One RJ-45 connector, Auto-MDI/MDIX for UTP port. Support 10/100 Mbps Auto-negotiation for UTP port. Fiber cabling connectivity up to 30Km. Store-and-forward switching architecture.
  • Page 5: Package Contents

    6 LEDs for Per port: 100, Link/Activity, Full/Collision, Per Unit: Power. External DC power adapter 9V/0.7A. Two types of module: Stand-alone and mounted in converter chassis. FCC Class A, CE, UL, and CUL Mark certification Package Contents Beware of which type of converter module that you have purchased. And, please refer to the package content list below to verify them against the checklist.
  • Page 6: Hardware Description

    Hardware Description Fast Fiber Converter Module dimension (L x W x H) is : 119mm x 85mm x 26mm Front Panel The Front Panel of the Fast Fiber Converter Module consists of one RJ-45 Port (Auto MDI/MDIX), 6 LED Indicators (UTP 100, LK/ACT, FDX/COL, Fiber LK/ACT, FDX/COL and PWR) and one fiber 100Base-FX Port.
  • Page 7: Ports

    Fast Fiber Converter Module-- ST & SC Fast Fiber Converter Module--SC-SM30 (1) RJ-45 Port (3) DIP-Switch (2) LED (4) Fiber Connector Ports RJ-45 Port (Auto MDI/MDIX): the Ethernet RJ-45 will auto-sense for 10Base-T or 100Base-TX connections. Auto MDI/MDIX means that you can connect to another Switch or workstation without changing non-crossover or crossover cabling.
  • Page 8 status. The indicator includes Power, UTP 100, LK/ACT, FDX/COL, Fiber LK/ACT, FDX/COL. The following table provides description of the LED status and their meanings. Status Meaning Green Power on Green 100Mbps UTP Speed 10 Mbps UTP Speed Green The unit is linking with it’s link partner. LK/ACT The unit is transmitting or receiving packets Blinks...
  • Page 9: Dip-Switch

    DIP-switch The DIP-switch is used to configure operation mode for LLF (Link Lost Forwarding) and operation mode for UTP/Fiber port. The default value of DIPswitch is OFF. S/W No Status Description UTP 100Mbps Full Duplex mode UTP Auto-Nego Fiber in Half Duplex Fiber in Full Duplex LLF Enable LLF Disable...
  • Page 10: Rear Panel

    Rear Panel The rear panel contains a power socket. This power socket accepts DC9V voltage and minimum 0.7A supplied current. DC IN...
  • Page 11: Installing Converters Module

    Installing Converters module This installation is only for mounted in converter chassis converter module. You can follow the steps below to install converter module. A、 Remove the blank bracket by rotating thumbscrew counterclockwise. Put the blank bracket aside, but don’t discard blanket bracket. B、...
  • Page 12: Cabling

    Cabling Twisted-pair segment can be use unshielded twisted pair (UTP) or shielded twisted pair (STP) cabling. The cable must comply with the IEEE 802.3u 100Base TX standard for Category 5. The cable between the converter and the link partner (switch, hub, workstation, etc.) must be less than 100 meters (328 ft.) long.
  • Page 13: Troubles Shooting

    Troubles shooting Check the configuration DIP-switch. It must be setting in the same operation mode with the link partner. Select the proper UTP/Fiber cable to construct your network. The single-mode converter must use single-mode fiber cable. Please check that you are using the right cable.
  • Page 14: Optical Fiber Specification

    Optical Fiber Specification The following table shows the optical Fiber Specification Avg. Wavelength Avg. Launch Module Name Sensitivity (nm) Power (dB) (dB) Fast Fiber Converter 1310 (nm) -18 (dB) -30 (dB) Module (SC) Fast Fiber Converter Module (SC-Single 1310 (nm) -6 (dB) -34 (dB) mode)
  • Page 15 Fast Fiber Converter 62.5/125 17 (dBm) 2 (Km) Module (VF-45) 50/125 Optical Specifications of Transceivers Transmitter (Output Center Wavelength): 1261~1360 nm 1310 nm Receiver (Wavelength of Operation): 1100~1600 nm Single mode Optical Transmit Power: Min. –15 dBm, Max. –7 dBm Sensitivity: Min.
  • Page 16: Technical Specification

    Technical Specification Fast Fiber Converter Module technical specification is as following: IEEE802.3 10BASE-T IEEE802.3u 100BASE-TX/100BASE-FX Standard IEEE802.3x Flow Control and Back pressure Fiber: Duplex ST/SC/MT-RJ, VF-45, Simplex SC (WDM single mode) RJ-45 Socket: CAT-3/5 (10/100Mbps) Twisted Pair cable Auto MDI/MDI-X and Auto-Negotiation Connector Function Support [Multi-Mode] power budget : Min: 9dB , MAX: 19dB.
  • Page 17 DIP Switch 1: UTP Auto-Nego / 100Mbps Full Duplex mode DIP Switch 2: Fiber Full/Half Duplex DIP Switch DIP Switch 3: LLF (Link Lose Forwarding) Disable/Enable DIP Switch 4: Switch Converter / Pure converter mode Module: Power, TX (100Mbps, LK/Act, FDX/COL) Fiber (LK/Act, FDX/COL) Stand-alone (external adapter): DC9V / 0.7A Power...
