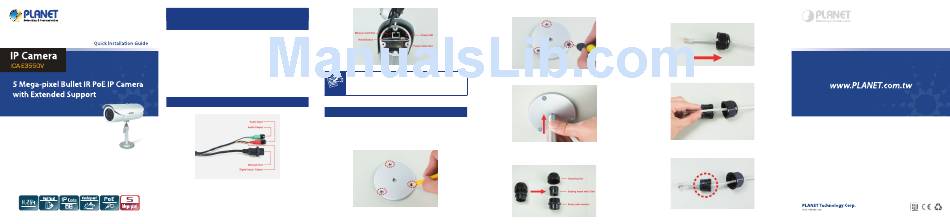

Planet ICA-E3550V Quick Installation Manual

5 mega-pixel bullet ir poe camera with extended support

Download this manual

Enlarged version

VERIFY THE CONTENTS INSIDE THE BOX

The package should contain the following items. If any item is missing

or damaged, please contact the seller immediately.

 Camera x 1

 Quick Installation Guide x 1

 Mounting Screw Kit x 1

 Cable Gland Package x 1

 Sunshield x 1

 Bracket x 1

 Bracket Plate x 1

Note

1. Hardware Overview

2. Installation

Step 1: Hardware Installation

1. Install the bundled bracket

A. Mark the location of the three screw holes using the bracket plate

included in the package.

B. Attach the plate to the surface using the three supplied screws.

C. Attach the bracket to the plate.

When user closes the back cover, please make sure the

rubber seal is properly attached and the power cable is

plugged well into power cable slot.

2. Install Cable Gland with RJ45 cable.

A. Disassemble the cable gland as shown below:

B. Slip the clamping nut through the Ethernet cable. (Ethernet cable

is not included)

C. Wrap around the cable with the sealing insert with claw.


