Section 3

Connecting to the Computer

At the right side of the Optical Module are two connectors (see Figure 3.1):
• Round 9-pin power connector: This provides power to the Optical Module via the
optical system power supply.
• Parallel-port connector: This uses a cable that is 25 pin male-to-male and connects to the
computer. The computer requires an IEEE 1284 compatible, 8-bit bi-directional, or EPP
type, parallel port. Data are transferred to the computer via this cable.
At the right rear corner of the reaction module is a single connector.
• Miniature phone plug connector: This senses when the handle is lifted. When the handle
is lifted, the emission filter wheel shifts to the home position, blocking light to the
intensifier and the CCD detector.
At the left rear corner of the iCycler thermal cycler is a single connector.
• Serial connector: The iCycler Program directs the operation of the iCycler via this cable.

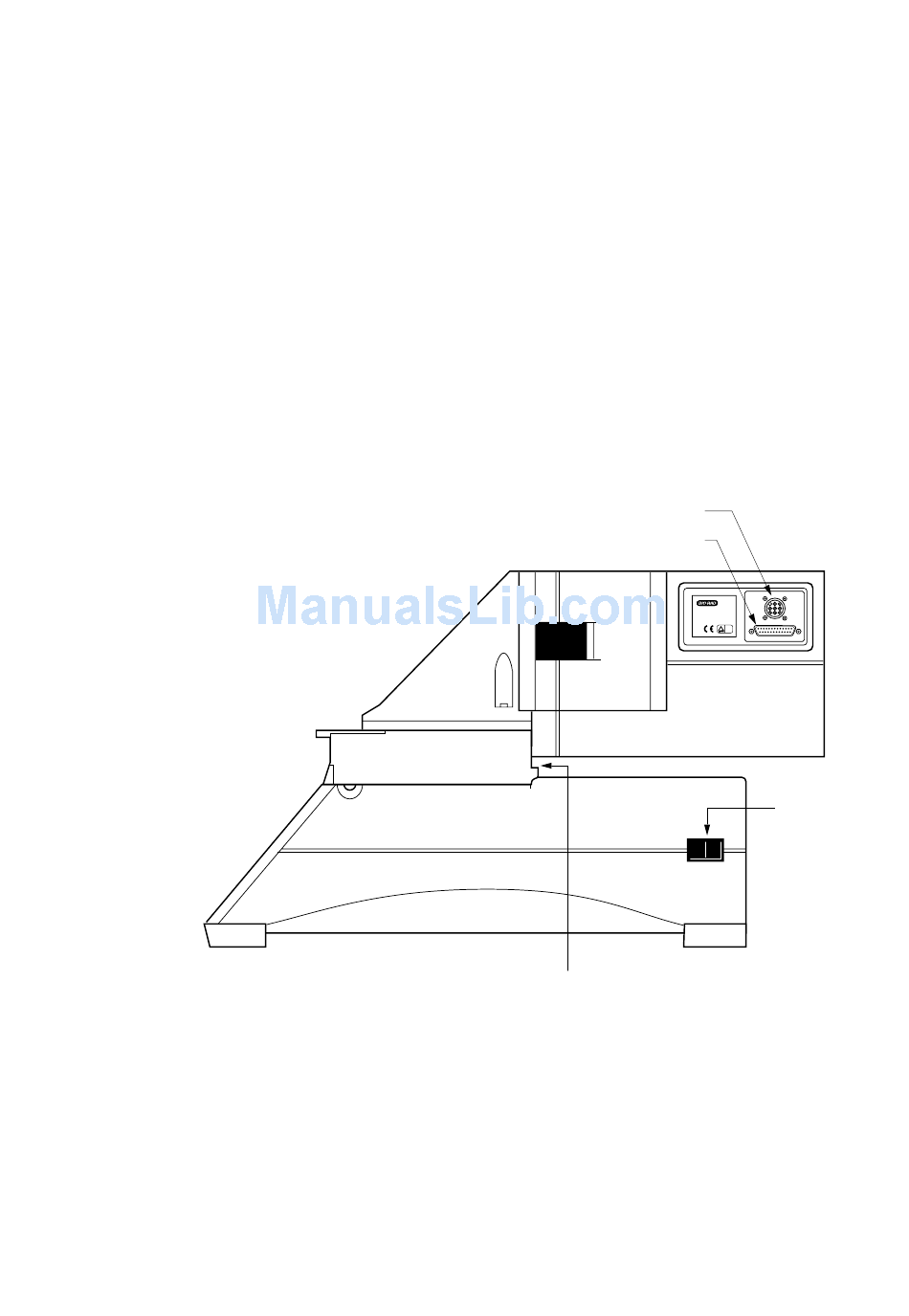

Fig. 3.1. Side View of iCycler iQ Real-Time Detection System showing cable connections.
To connect the system cabling:
1. Before attaching cables, turn off all power to the system; close the reaction module by slid-
ing the lid forward and pressing the lid handle down.
2. The optical system power supply unit is connected to the iQ detection system by two
cables, one ending with a round, 9-pin connector and the other with a miniature phone plug
connector (interlock connector). Connect the Optical system power supply to the Optical
Module and Reaction Module as follows.
Power Connector
Parallel Port Connector
Miniature Phone Plug
Connector
7
Made in the USA
Model No.
iCycler Optical Module
Serail No. 584BR00112
TF
01015-1
On/Off
Switch
