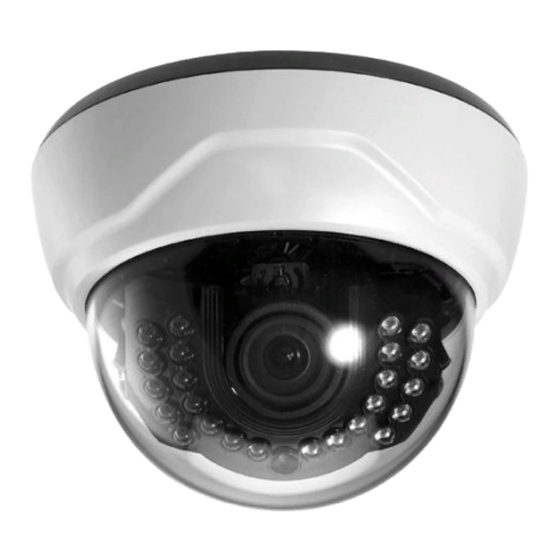

3-axis day & night ir dome camera

Advertisement

Quick Links

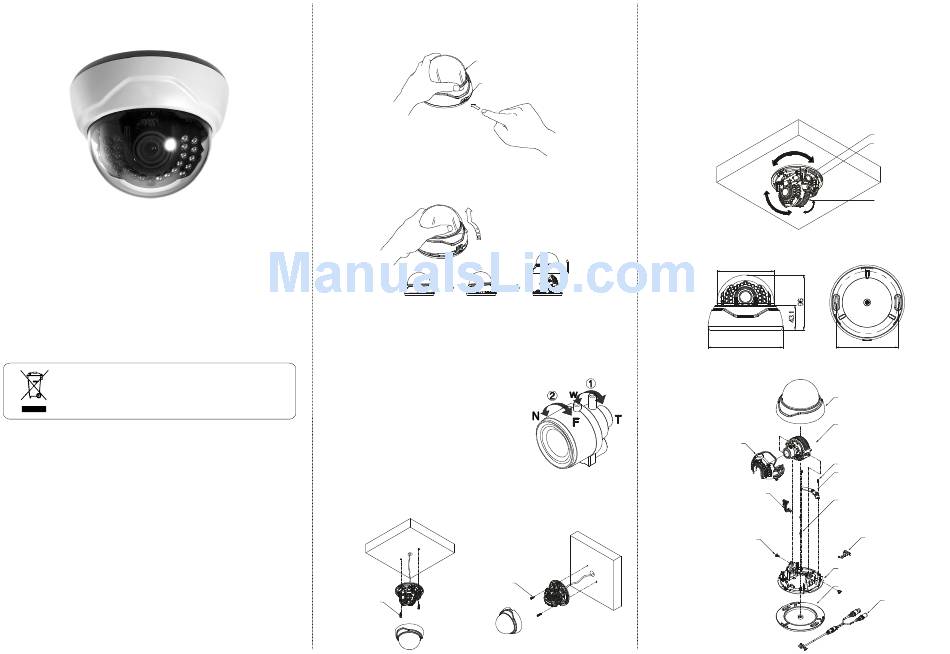

3-AXIS DAY & NIGHT IR DOME CAMERA
MANUAL

◐ PRECAUTION

1. Do not install the camera outdoors.
2. Choose an ideal location for the camera, since a camera unit must
be protected against moisture and vibration.
3. Be careful not to scratch the camera unit, especially lens or dome cover.
4. Use the camera within the temperature(-10℃ ~ +50℃).
5. Handle with care. Dropping it can cause serious damage to the camera.
6. Avoid any direct sun light toward the lens.
7. Use the AC adaptor 12V DC, 1A regulated.
Dual voltage product can use 24V AC adaptor.(option)
If the product is to be put out of operation definitively,
take it to a local recycling plant for a disposal which
is not harmful to the environment.

◐ FEATURES

1. This camera is incredibly flexible to install with its 3-axis camera
construction, which makes the camera ceiling, wall or slope
mountable.
2. 25M range visible in total darkness with 24pcs of IR LEDs.
3. RS-485 interface(Pelco-D, Pelco-P protocol support) - Option
4. Supreme Resolution(600 TV-Line)
5. Day & Night function(ICR) - Option
6. Support 4 different privacy zone
7. IR LED output level controllable via RS-485
8. DWDR(Digital Wide Dynamic Range)
9. Multi function : High Light Mask, Lens Shading Compensation, Impact
Detection, Motion Detection
10. Dynamic IR : When IR LED is turned on in B/W, the objects can be
clearly identified due to the function that decreases screen saturation
of objects within a short distance.
11. Multi-language full OSD support

◐ HOW TO INSTALL

1. Opening the dome
:
Pushing the latch button.(Remove the protection
sheet after installing.)
PROTECTION SHEET
LATCH BUTTON
2. Removing the dome
:
Lift the dome. When you push the latch
button, it is unlocked and you can lift the dome.
3. Camera installation
:
(1) Fix the camera set with the supplied screws on ceiling or wall mount.
If you don't use supplied screws, the camera may fall off.
(2) Please refer to '4. Camera angle adjustment' regarding adjust
camera angle.
(3) Lens adjustment(Vari-focal Lens only)
After opening the LED cover,
① By turning the "Tele-Wide" knob,
you can access a range of focal
lengths within specified limits.
② Since then, by turning the "Near-Far"
knob, you can set the focus toward
the wanted object.
(4) Re-assemble the camera.
<Ceiling mount>
<Wall mount>
SCREW TP1
3.5x20 2EA
SCREW TP1
3.5x20 2EA

4. Camera angle adjustment :

(1) Pan adjustment
: Grasp the disk of camera and then adjust
˚
direction to the right or left(-180 ~ 180 )
(2) Tilt adjustment
: Grasp the LED cover of camera and then adjust
˚
˚
direction to the up or down(6 ~ 90 )
(3) Roll adjustment
: Grasp the camera holder and then rotate
(-178 ~ 178 )
˚
˚
<Caution> If you try to adjust the camera out of limited angle, it might cause
troubles and damage to camera.
R
L
U
ROTATION
D

◐ DIMENSION

Ø100
Ø130.8

◐ ASSEMBLY

LED COVER
HARNESS
SCREW
˚
LED COVER
DISK
CAMERA HOLDER
Ø109
DOME COVER
CAMERA MODULE
SCREW
CONTROL PCB
SCREW
PUSH BUTTON
DISK
BASE
CABLE
