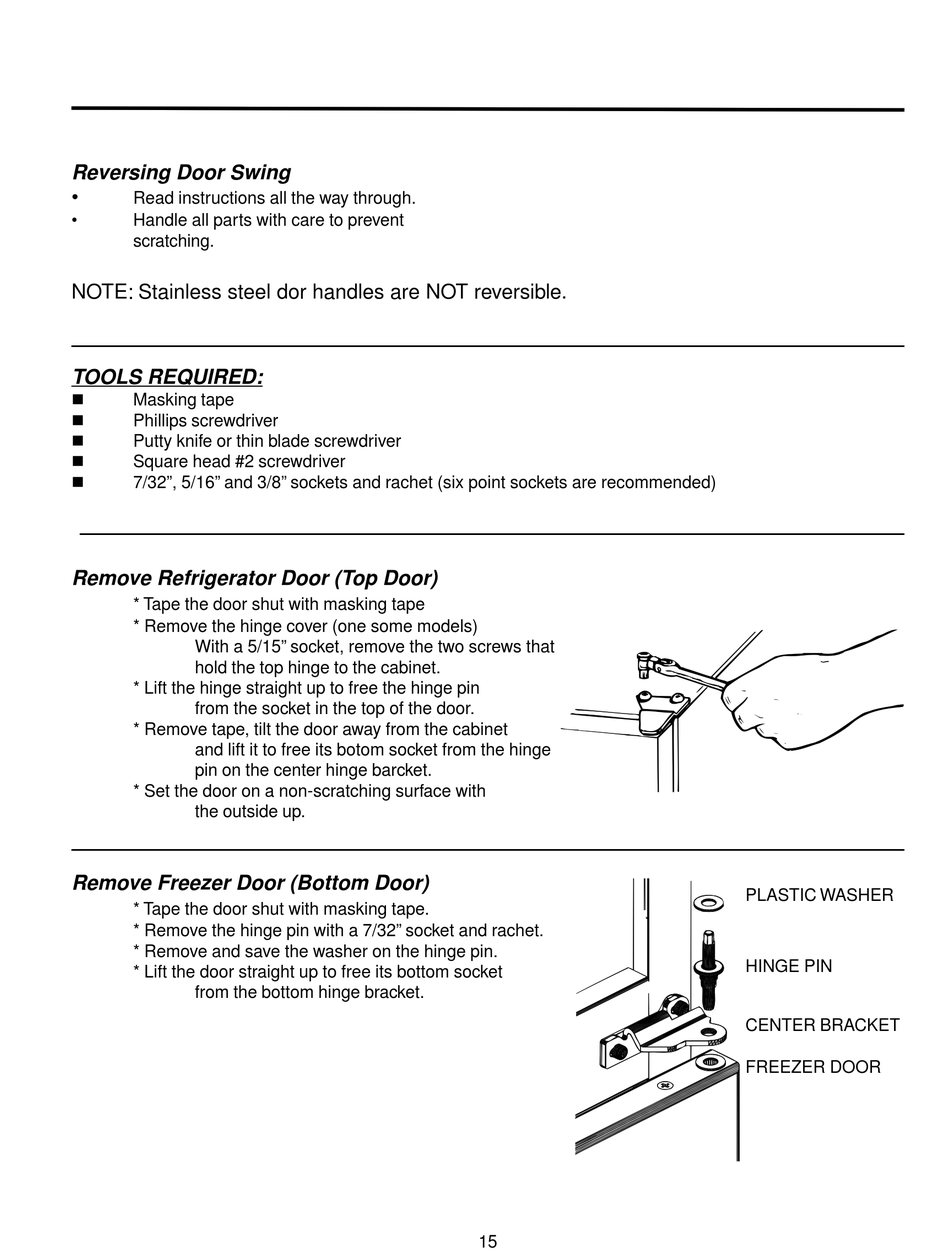

Reversing Door Swing
•
Read instructions all the way through.
• Handle all parts with care to prevent
scratching.
NOTE: Stainless steel dor handles are NOT reversible.
TOOLS REQUIRED:
n
Masking tape
n
Phillips screwdriver
n
Putty knife or thin blade screwdriver
n
Square head #2 screwdriver
n
7/32", 5/16" and 3/8" sockets and rachet (six point sockets are recommended)
Remove Refrigerator Door (Top Door)
* Tape the door shut with masking tape
* Remove the hinge cover (one some models)
With a 5/15" socket, remove the two screws that
hold the top hinge to the cabinet.
* Lift the hinge straight up to free the hinge pin
from the socket in the top of the door.
* Remove tape, tilt the door away from the cabinet
and lift it to free its botom socket from the hinge
pin on the center hinge barcket.
* Set the door on a non-scratching surface with
the outside up.
Remove Freezer Door (Bottom Door)
* Tape the door shut with masking tape.
* Remove the hinge pin with a 7/32" socket and rachet.
* Remove and save the washer on the hinge pin.
* Lift the door straight up to free its bottom socket
from the bottom hinge bracket.
15
PLASTIC WASHER
HINGE PIN
CENTER BRACKET
FREEZER DOOR
