Quick-sTarT insTallaTion Guide

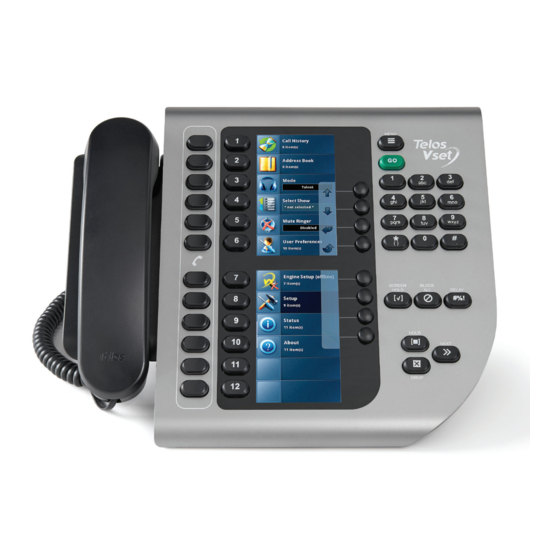

Telos VseT BroadcasT PhoneseT
Thank you for PurchasinG The VseT BroadcasT PhoneseT.
We have made the Telos VSet easy to set up and configure. This quick-start guide will take you through the basic
steps to configure your new VSet to start delivering top quality caller audio to your show in no time. Before we get
started, let's make sure you have what you need.
REQUIRED EQUIPMENT, CABLES, AND ACCESSORIES:
There are a few additional items required for a successful installation. Check the list below and make sure
you have what you need.
Included items:
• VSet base
• VSet Handset and Handset cable
• PoE injector & AC power cable
• Ethernet cable
Items you need to supply:
• Configured Telos VX Engine, iQ6, or Hx6 Talkshow System
• Configured Ethernet Switch (if using more than one VSet,
a computer network, or the VX Engine)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Telos Vset
Summary of Contents for Telos Vset

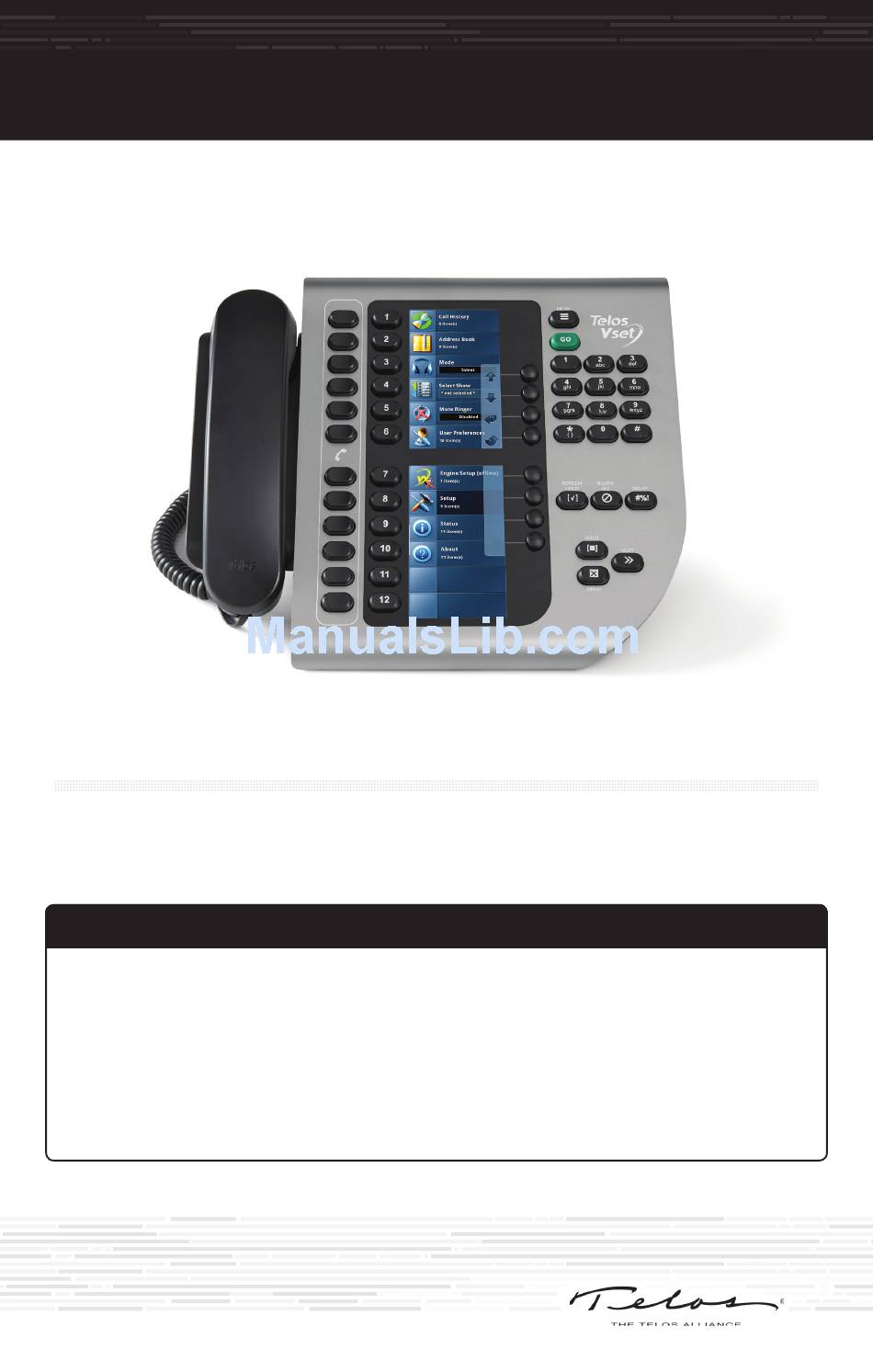

- Page 1 Quick-sTarT insTallaTion Guide Telos VseT BroadcasT PhoneseT Thank you for PurchasinG The VseT BroadcasT PhoneseT. We have made the Telos VSet easy to set up and configure. This quick-start guide will take you through the basic steps to configure your new VSet to start delivering top quality caller audio to your show in no time. Before we get started, let’s make sure you have what you need. REQUIRED EQUIPMENT, CABLES, AND ACCESSORIES: There are a few additional items required for a successful installation. Check the list below and make sure you have what you need. Included items: Items you need to supply: • VSet base • Configured Telos VX Engine, iQ6, or Hx6 Talkshow System • VSet Handset and Handset cable • Configured Ethernet Switch (if using more than one VSet, • PoE injector & AC power cable...
- Page 2 1. Important: Please be sure your Telos VX Engine, iQ6, or Hx6 Talkshow System is configured before connecting your VSet to the network. For purposes of this Quick Start Guide, we will use a VSet12. Where instructions differ for the VSet6, they will be noted.
- Page 3 Netmask”. Using the VSet numbered keypad (K), enter the Netmask values for your VSet. Once the proper address is entered, press the “Go” button (L) or the “Enter” soft key (M) to save the entry. 6. Do not assign a Gateway address unless directed to by Telos support. 7. Press the “Menu” key (H) to save and exit. conTinue To sysTeM connecTions The VSet is connected to the network and is ready for System, Studio, Show, and Mode set up. Continue to the “System Connections - Connect to the Gateway Device” instructions.
- Page 4 “Enter” soft key (M) to save the entry. Manually enter the Ip of the desired Engine/System Press the numbered line button next to “Engine IP” which will then allow you to manually enter the IP address of the VX Gateway or other Telos hybrid/ engine you wish to connect to. Using the VSet numbered keypad (K), enter the IP address for your engine. The star key “*” is used to enter a dot “. ” , and the pound key “#” is used to backspace/delete. Once the proper address is entered, press the “Go” button (L) or the on-screen “Enter” soft key (M) to save the entry.
- Page 5 (Q). Press the numbered line button to select your desired Studio. 3. Press the “Go” button (L) or the on-screen “Enter” soft key (M) to save the entry. 4. After the studio is selected, the VSet will automatically list and select the available show. If you are operating a Telos VX, multiple shows may be available and will be listed (R). Select your desired show by pressing the numbered line key next to the show name.
- Page 6 "Talent" and "Producer" modes. 4. Press the “Menu” key (H) to save & exit. your seTuP is coMPleTe! That’s it! You are now ready to experience the VSet, the high performance phoneset for high quality caller audio. Enjoy! insTallaTion helP For more details on other configuration options, or for additional information about configuring a VSet, please access the full manual online at https:/ /www.telosalliance.com/Telos/VX.
