Telos VSet Installation & User Manual

For use with telos vx, hx6, and iq6 systems
Hide thumbs Also See for VSet:
Table of Contents

Advertisement

Quick Links

Download this manual

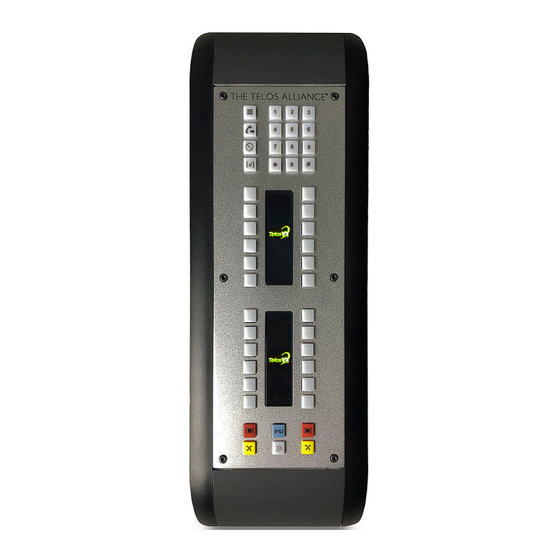

Telos VSet Desktop
Controller
For use with Telos VX, Hx6, and iQ6 Systems
Installation & User's Guide
Software Version: 1.0.0 or newer | November, 2018
For use with:
Telos VX, VX Prime, VX Enterprise, VX Prime+, Telos Hx6 Six-Line POTS Talkshow System,
Telos iQ6 Six-Line POTS Telco Gateway
P/N: 1490-00205-001 --- USER MANUAL: VSDC
TelosAlliance.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSet and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telos VSet

Summary of Contents for Telos VSet

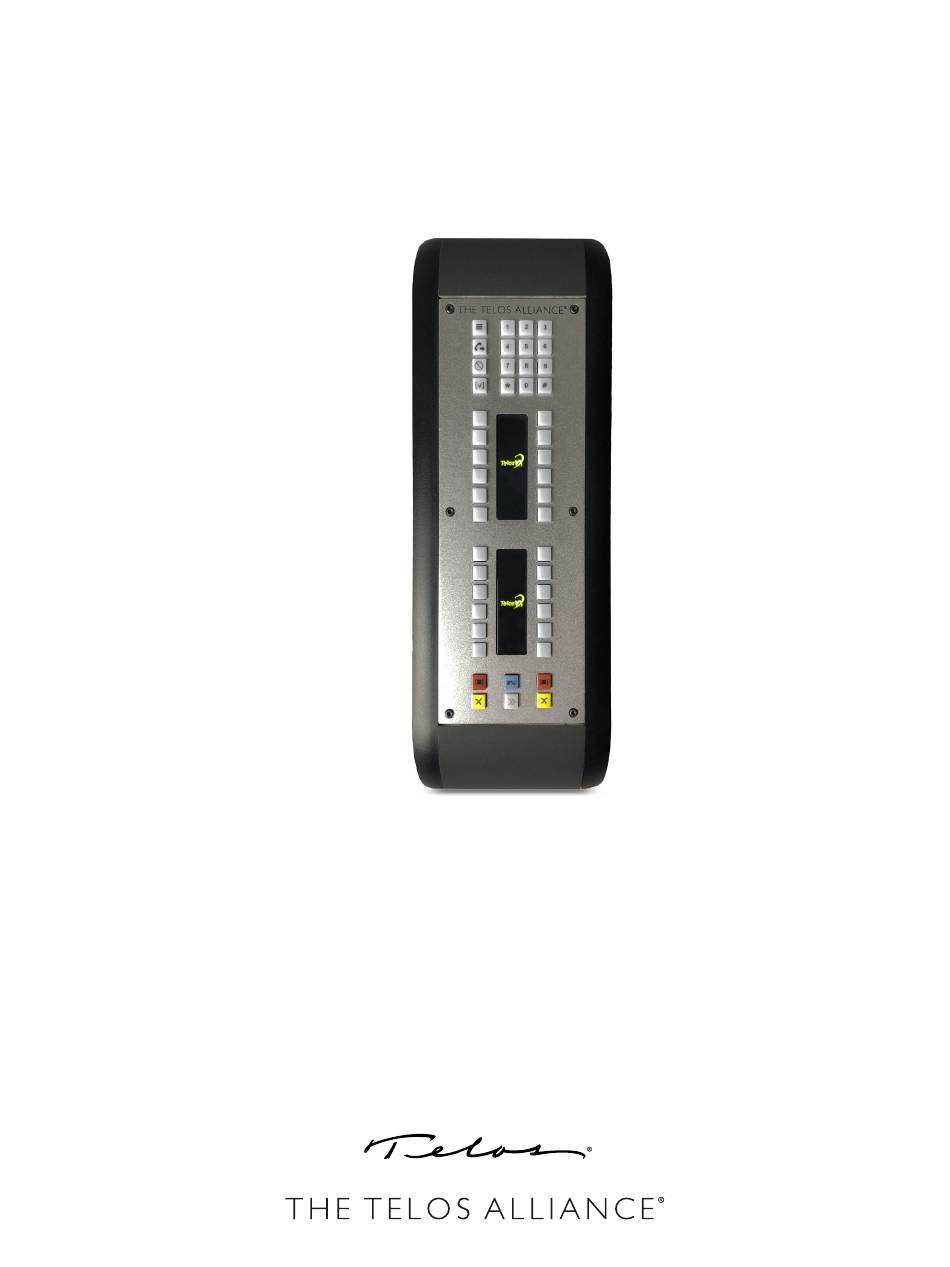

  • Page 1 Installation & User’s Guide Software Version: 1.0.0 or newer | November, 2018 For use with: Telos VX, VX Prime, VX Enterprise, VX Prime+, Telos Hx6 Six-Line POTS Talkshow System, Telos iQ6 Six-Line POTS Telco Gateway P/N: 1490-00205-001 --- USER MANUAL: VSDC...
  • Page 2 User Warnings and Cautions The installation and service instructions in this manual are for use by qualified personnel only. To avoid electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so. Refer all servicing to qualified personnel This instrument has an autoranging line voltage input.
  • Page 3 The Telos Alliance which are mentioned in this manual or accompanying material are informational only. The Telos Alliance makes no endorsement of any particular product for any purpose, nor claims any responsibility for operation or accuracy. We reserve the right to make improvements or changes in the products described in this manual which may affect the product specifications, or to revise the manual without notice.

  • Page 4: We Support You

    Eastern Time, Monday through Friday. By Email. Non-emergency technical support is available at Support@TelosAlliance.com. By Web The Telos Web site has a variety of information that may be useful for product selection and support. The URL is https://www.TelosAlliance.com/Telos SERVICE You must contact Telos Alliance before returning any equipment for factory service. We will need your unit’s serial number, located on the back of the unit.

  • Page 5: Table Of Contents

    Connect to the Telos System . . . . . . . . . . . . . . . . . .
  • Page 6 VSet Gateway . . . . . . . . . . . . . . . . . . .
  • Page 7 Linear Acoustic®, 25-Seven Systems®, and Minnetonka Audio®. We’re here to help you make your work truly shine. We hope that you enjoy your Telos Alliance product for many years to come and won’t hesitate to let us know if we can help in any way.

  • Page 9: Vset Desktop Controller Anatomy

    VSet Desktop Controller Anatomy Chapter 1 | VSet Desktop Controller Anatomy 1. Number Keypad 11. Bottom Display 2. Menu Button 12. Left Hold Button 3. Hook-Flash / Transfer Button 13. Left Drop Button 4. Block All Button 14. Right Hold Button 5.

  • Page 11: Installation

    Grounding To protect your VSet from static electric discharge and other problems, you will want to make sure the chassis has a good connection to ground. We have provided a grounding screw on the unit near the RJ-45 connector. We highly suggest...

  • Page 12: Assign An Ip Address

    NOTE: In factory default configurations, the IP addresses between a VSet and an Hx6 should default to directly compatible settings. Press the Menu Button and find the Setup option. Press the Line button next to Setup. This will take you to the VSet Setup Menu.

  • Page 13: Connect To The Telos System

    -OR-press the line button next to Engine IP and manually key in the IP address of the Telos hybrid or Vx Engine you wish to connect to the VSet. The star key is “.” and the pound (#) key is backspace. Press the left line key next to Engine IP to save the IP address.

  • Page 14: Select Show

    Menu Button to enter the Main Menu and press the left line key next to the item for Select Show. Press the left line key next to the desired show. Once the Show is selected, the available lines will show as available on the VSet’s display(s).

  • Page 15: User Operation

    Talent and Producer Modes Because the VSet Desktop Controller is meant to be the board operator’s interface, the controller is permanently set to Talent Mode. This means that all lines selected from the line columns will be sent to the corresponding hybrid and that there is no means for screening calls in Producer mode like on the VSet6 or VSet12 phone-sets.

  • Page 16: Line Button Columns

    User Operation Chapter 3 | The Line is Locked on Fader 2 The Line is on Hold The Line is on Screened Hold and will be seized when NEXT >> is pressed The Line is ready for ENBLOC Dialing --- more on that later. The Line is in use elsewhere, perhaps in another studio.

  • Page 17: Hold Button

    NOTE: Block All will affect any lines that are shared between studios. So if a you are seeing a blocked line on a VSet that is not in Block All mode, odds are there is a studio in the building that has Block All active.

  • Page 18: Numeric Keypad

    Hx6 & iQ6 When the VSet is used with the Hx6 or the iQ6, the VSet will operate like a normal POTS phone. When a line is selected, dial tone will be heard. When a number is dialed it will be dialed in real time with DTMF tones.

  • Page 19: Take It Easy

    User Operation Chapter 3 | Take it Easy We’ve built a lot of flexibility into the Vx system to support all the sophisticated things you might want to do. But you don’t have to use all the fancy-pants stuff when you don’t need it and a simpler subset will do. In the simplest case, when you are a talent supported by a producer, you could just use the NEXT and DROP buttons.

  • Page 21: Menu Button

    For more info about setting up a show, please consult the Vx Engine Manual. Mute Ringer This setting allows you to mute the ringers in the VSet phones registered to the same studio as this controller. “(Local)” means the ringer is muted from a VSet phone / controller in the same studio.

  • Page 22: Setup Menu

    24-Line Mode. Reset to Factory This does exactly what you think it might. Note that the VSet’s network settings will not be lost when a Factory Reset is performed.

  • Page 23: Engine Setup Menu

    Engine Setup Menu Here is where you will find all of the settings regarding the Telos system to which you want the VSet to communicate. After initial setup, there will be very few adjustments you may need to make to these settings.

  • Page 24: User Preferences Menu

    POH until the call is picked up. When Auto Hold is disabled, the incoming call will ring in as usual. This is a global setting and all connected VSet Phone Sets will display a small letter “H” in the upper right hand corner of the screen when Auto Hold is enabled.

  • Page 25: Web Graphical User Interface

    The Web GUI can be viewed with a browser on a computer on the same network as the VSet and its hybrid / Vx Engine. With HTTP Server enabled on the VSet, key the IP address of the VSet into a web browser and you will be asked to log into the VSet.

  • Page 26: The Default Login Is

    VSet. Once the VSet is all set and ready to go, click the Backup Button. This will allow you to save an XML file to your computer. To load a configuration file, click the Browse button and select the appropriate XML file. The file will display in the config section to confirm.

  • Page 27: User Password

    GUI. If the password is changed and forgotten, it can be reset to blank by resetting the VSet to factory defaults. To do this navigate to Menu / Setup / Reset to Factory.

  • Page 28: Warranty

    Telos Alliance Warranty Telos Alliance Limited Warranty For the latest Telos Alliance warranty, visit: telosalliance.com/warranty.
  • Page 29 This Page Intentionally Blank...
  • Page 30 This Page Intentionally Blank...
  • Page 31 This Page Intentionally Blank...
  • Page 32 1241 Superior Ave. • Cleveland, Ohio, 44114, USA • +1.216.241.7225 • TelosAlliance.com © 2018 TLS Corp., All Rights Reserved. C18/17046 • P/N: 1490-00205-001 --- USER MANUAL: VSDC...
