Summary of Contents for Haverland ULTRAD

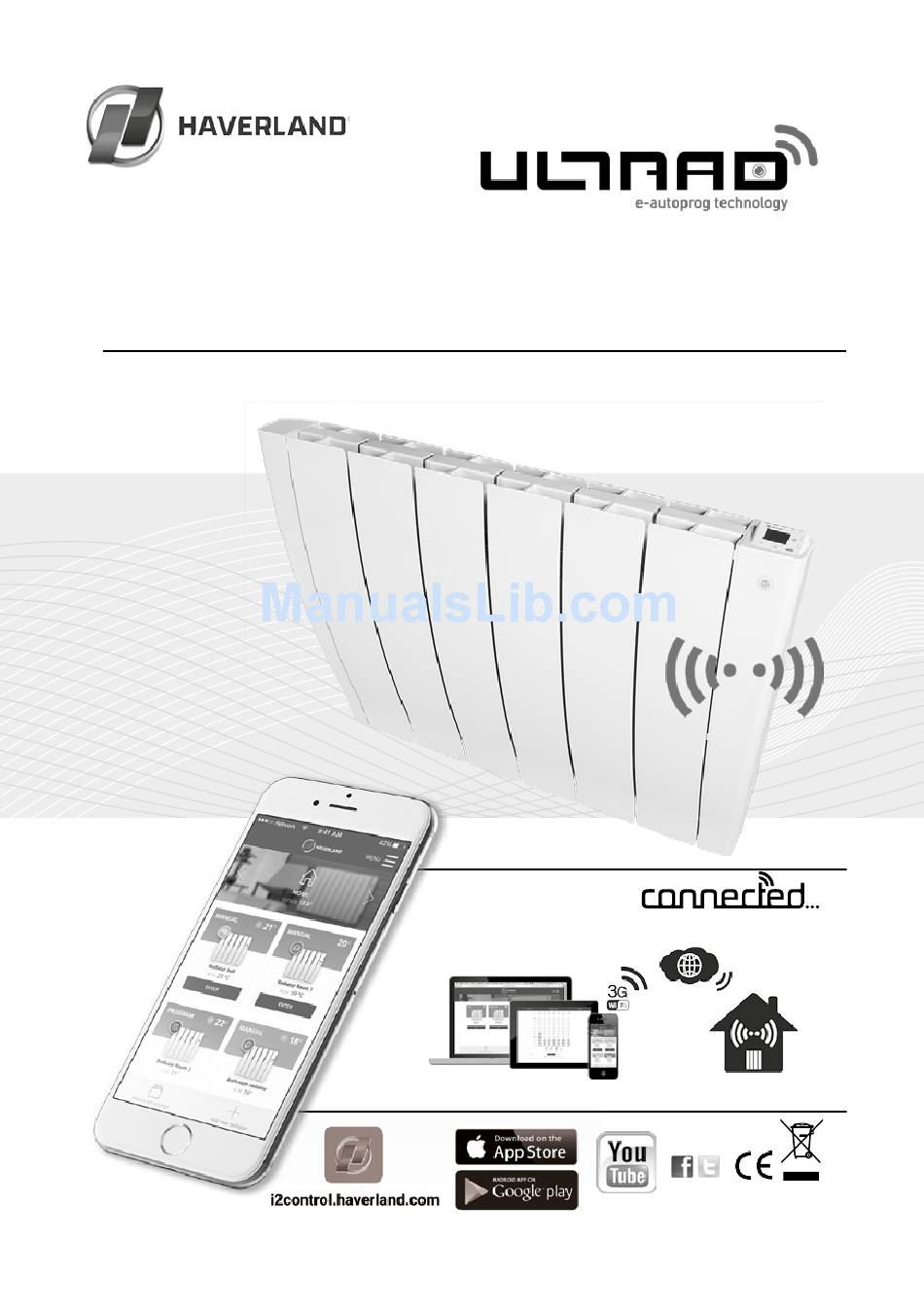

- Page 1 The first self-programmable radiator and control from anywhere in the world INSTRUCTION MANUAL HAVERLAND www.haverland.co.uk ULTRA_V2_2017_MOOR@UK2017...
-
Page 2: Table Of Contents
Thank you for choosing Haverland radiators When installed and programmed in accordance with these instructions the new generation of Haverland electric radiators will provide exceptional comfort and energy savings. Index 1. Safety Notes ..................2. Introduction ..................2.1 Features .................. -
Page 3: Safety Notes
Safety Notes • Please read these instructions carefully. • To disconnect mains power from the radiator remove the plug from the wall socket, but never pull on the cable. • Do not leave the mains cable in contact with the radiator when it is switched on. •... -
Page 4: Introduction
Introduction 2.1 Features • YOU DO NOT HAVE TO PROGRAMME YOUR RADIATOR! Ultrad will programme itself automatically. • Its presence sensor and algorithms continually monitor your lifestyle habits and control your electricity consumption at all times, especially for your comfort. -
Page 5: Instructions For Installation
Instructions for installation 3.1 Important • In order to optimise presence detection of your radiator, do not install it in a ‘dead’ angle or behind a piece of furniture. • The radiator must never be installed just below a mains socket. •... -
Page 6: Instructions
In bathrooms, the radiator must never be installed where the switches and other devices may be within the reach of someone in the shower or bathtub. 3.3 Instructions It is vital that the radiator is affixed firmly to a solidly constructed and levelled wall. Make sure that an electrical socket is near where you intend to position the radiator. - Page 7 Attach the 2 brackets using Place radiator over lower the 4 long screws. tang of the brackets. 4 SCREWS 2 SCREWS The two 6 x 50 mm M6 x 50 mm screws supplied Place over top tang and lower gently should be fully into position.
-
Page 8: Initial Operation
Initial Operation 4.1 YOUR RADIATOR IS CONFIGURED! Plug-in Press switch 3 pin 13 amp plug ‘ROOM TEMP’ ‘AUTOMATIC TEST = COMFORT TEMP (20 ºC) there is detection there is NO detection = ECONOMY TEMP (16 ºC) > 30 MIN there is NO detection = ANTI-FROST TEMP (5 ºC) >... - Page 9 Note: You can change the Comfort and Economy temperatures (see point 4.3, Adjusting the temperatures). • Depending on your presence, Ultrad will learn a template for each day of the week, week by week. • Ultrad NEVER stops learning. If you change your habits of getting up and going to bed etc, the unit will reprogramme itself to adapt to your new habits.
-
Page 10: Operating Modes
4.2 Operating modes Your radiator incorporates four operating modes. THE ‘LEARNING’ MODE IS ACTIVATED AT THE FACTORY. 4.2.1 To change the operating mode: Simultaneously press every Operating time you want to change the operating mode. mode light Light indicator ‘Operating mode’ will change: 1) ‘Learning’... -
Page 11: Adjusting The Temperatures (Comfort And Eco)
The comfort periods in the following week will commence before the programmed time so that the room will begin warming up before you enter. Note: The auto-programming period is continuous. The radiator updates according to your life style variations, day by day, week by week. 2) SENSOR MODE : •... - Page 12 Change the comfort and economy temperatures The radiator must be in MANUAL MODE (see point 4.2). 1. Select the temperature to be changed, comfort, anti-frost or economy, pressing button Temperature indicator - Red = Comfort - Blue = Anti-frost - Green = Economy 2.
-
Page 13: Open Window' Function
4.4 ‘Open Window’ Function The radiator incorporates this automatic function. If, in the room in which the radiator is installed, the room temperature falls by more than 4 ºC, the heater will change over to ‘Anti-frost’ mode’. Notes: • This will prevent heater operation. •... -
Page 14: Adjusting Day And Time
4.7 Adjusting Day and Time Your radiator is supplied with the clock and day of the week already factory set. You must adjust the clock for changes between summer and winter times; this is an automatic setting if you have the Smartbox (not included). Press buttons. -
Page 15: Other Indications
4.7); this is an automatic setting if you have the Smartbox (not included). Maintenance Ultrad does not need any special maintenance. Dust with a dry, soft cloth when the radiator is disconnected and cold. It is best to clean the surface of the radiator at the beginning of the heating season (always before connecting it). -
Page 16: Guarantee
Haverland UK Limited Challenge House, Sherwood Drive, Bletchley, MK3 6DP Customer Service Telephone: 0330 3651940 Fax: 01672 811944 Email: haverland@haverland.co.uk www.haverland.co.uk...
