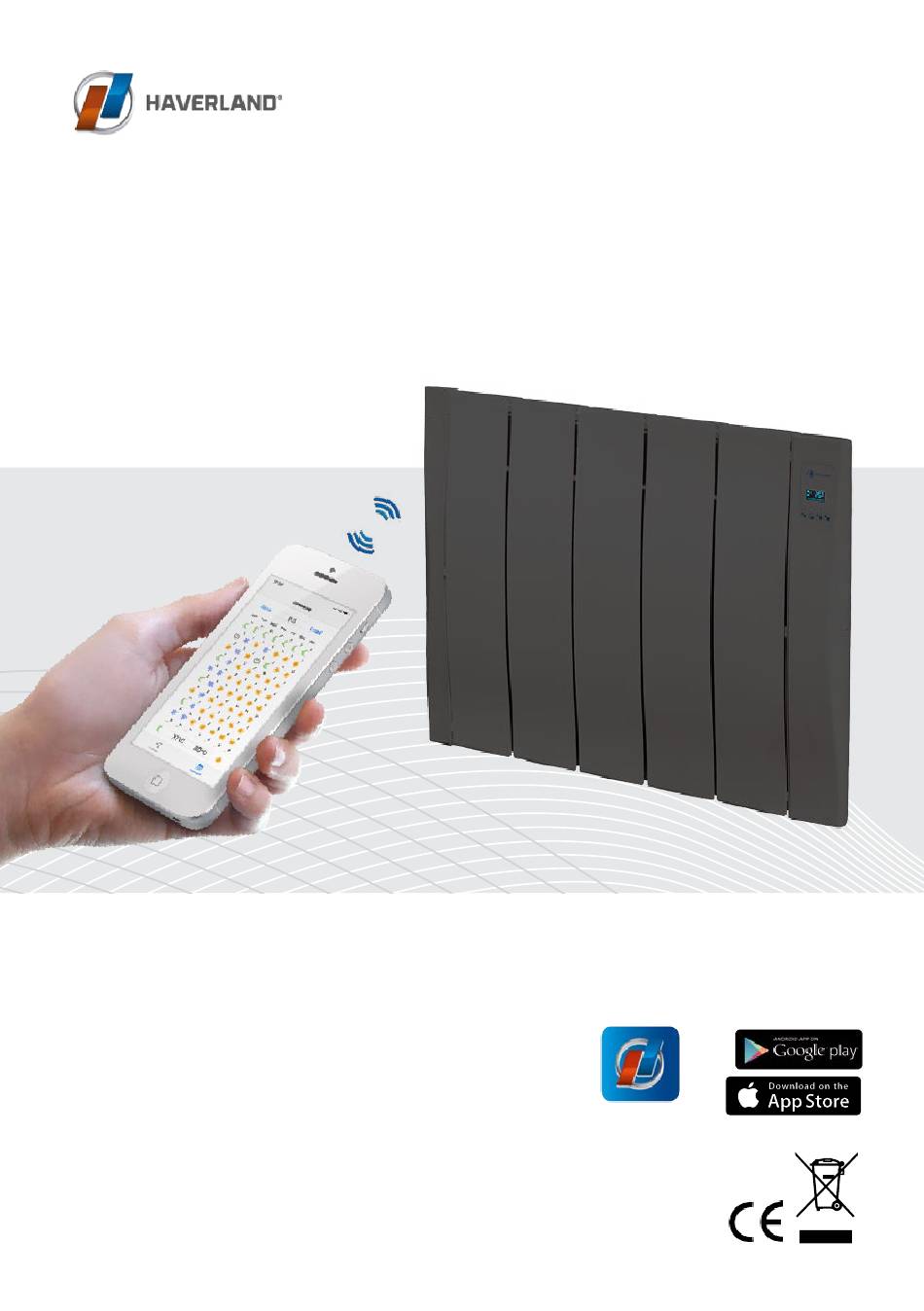

- Page 1 RCWave+ ANTHRACITE Instructions & installation manual PAIR YOUR RADIATOR WITH YOUR MOBILE DEVICES HAVERLAND BT RCW+ Anthracite_V2.2_06MARCH2019_MISA_ESUKFP2019...
-
Page 2: Table Of Contents
3. OPERATION 3.1 CONTROLS 3.2 LET’S START 3.3 SET UP DAY AND TIME 3.4 “HAVERLAND BT” APP 3.5 DISCONNECTING THE MAINS SUPPLY / SUPPLY CUT 3.6 CHOOSE THE OPERATING MODE 3.7 MANUAL MODE 3.8 TO MODIFY ECONOMY AND COMFORT TEMPERATURES 3.9 ANTI-FROST MODE... -
Page 3: Caution
1. CAUTION • Please read these instructions carefully. • To disconnect mains power from the radiator remove the plug from the wall socket, but never pull on the cable. • Do not leave the mains cable in contact with the radiator when it is switched on. - Page 4 1. CAUTION • The radiator has a keyboard blockage option to prevent children from changing the programming. • This unit is not designed to be handled by persons (including children) with physical, sensorial or mental handicaps, with little experience or knowledge unless they are under the supervision of an adult responsible for their safety with the instructions on its use.
-
Page 5: Instructions For Installation
2. INSTRUCTIONS FOR INSTALLATION • Before the first switch on for the coming winter or when the heater has not been used for several days, the unit should be cleaned (follow the steps given in the “maintenance section”.This cleaning operation will avoid burning the accumulated dust and other remains. - Page 6 2. INSTRUCTIONS FOR INSTALLATION Cardboard template Place the screw but don’t screw it fully. (M. 6 x 40 mm) Place the radiator 4 Screws 5.5 x 50 mm IMPORTANT: Screw down Slide the radiator up, FULLY to lock Place over top the radiator tang and lower gently into...
-
Page 7: Operation
1100 1400 1700 3.1 CONTROLS 1. Decrease / Manual or Automatic button 2. Increase button / “Boost” function 3. Previous item / Synchronization with “Haverland BT” App 4. Next item / Setting / Anti-frost 5. Screen CONTENTS RCW + Anthracite... -
Page 8: Let's Start
3. OPERATION 3.2 LET’S START! Press the ON /OFF switch located on the right-hand side. NOTA 1 Software version 3.3 SET UP DAY AND TIME Select day of the week by 1 = MONDAY, ..DAY OF THE WEEK PRESS HOUR CONTENTS RCW + Anthracite... - Page 9 PRESS Select minutes by pressing MINUTES ANTI-FROST MODE PRESS RADIATOR OPERATING Press the button to connect the radiator. When you program with our “Haverland BT” App, the current clock and day will be automatically updated. CONTENTS RCW + Anthracite...
-
Page 10: Haverland Bt" App
3. OPERATION 3.4 “HAVERLAND BT” APP Haverland has developed a simple and functional App so that you can make a weekly program, day by day, hour by hour, with no need to have to program anything directly into your radiator. - Page 11 3. OPERATION NOTE 3 To facilitate programming, you can copy the program made one day to the next days that you want. Press on the day to be copied (for Press on the days to be copied (for example, example, Monday “1”). Tuesday, Wednesday and Thursday).
- Page 12 3. OPERATION Then, the radiator will be displayed on your smartphone. Press on Press “HAVERLAND” the radiator will be selected (grey background). The radiator is linked with To finish, “send” the your smartphone or tablet. configured program to your radiator by pressing:...
- Page 13 3. OPERATION NOTE 4 To disconnect the radiator from your smartphone or tablet and to set other radiator, press: NOTE 5 Once the program has been sent to the device, the radiator will switch to automatic mode, whatever the current mode of operation is, including the “anti- frost”...
-
Page 14: Disconnecting The Mains Supply / Supply Cut
There are two ways to update the clock and the day of the week: Via “Haverland BT” App (recommended): If you have downloaded the “Haverland BT” App, link your mobile device to your radiator (follow the previous point 3.4) and click on the App The clock and day will be updated via the internet. -
Page 15: Choose The Operating Mode
3. OPERATION 3.6 CHOOSE THE OPERATING MODE Choose the operating mode, AUTOMATIC or MANUAL, by pressing successively the button. AUTOMATIC MODE MANUAL MODE NOTE 8 The symbol indicates the radiator is HEATING UP (the resistance is working). IMPORTANT: After 20 seconds approx. only the “operating mode”... -
Page 16: Manual Mode
To change comfort and economy temperatures, it can be done in three ways: 1. First option: Via “Haverland BT” App (we recommend this option): Follow the steps indicated in the point “3.4 APP” HAVERLAND BT “. CONTENTS RCW + Anthracite... - Page 17 3. OPERATION 2. Second option: On the radiator: Follow the following steps: To change mode temperatures, hold down on the manual or automatic screen. to adjust the Economy Temperature. Press to confirm. to adjust the Comfort Temperature. Press to confirm. 3.
- Page 18 3. OPERATION COMFORT TEMPERATURE Select the desired economy temperature. Press Minimum value = 10 ºC Maximum value = 18 ºC Select the desired comfort temperature. The radiator is Press ready to work. Minimum value = 19 ºC Maximum value = 30 ºC NOTE 9 Remember that the economy mode is the temperature that you should set when you are not in the room or during the night, and the comfort mode is the...
-
Page 19: Anti-Frost Mode
3. OPERATION 3.9 ANTI-FROST MODE Thanks to this “anti-frost” mode you can avoid extreme temperatures in your home, by keeping the ambient temperature above 7ºC. To activate the anti-freeze mode, press the button. ANTI-FROST MODE NOTE 10 The “antifrost” symbol will move randomly across the screen. -
Page 20: Keyboard Blocking
3. OPERATION 3.11 KEYBOARD BLOCKING Press simultaneously the buttons for 2 seconds until the “LOCK” symbol appears on the screen . You must perform the same operation to unlock the device. NOTE 13 “LOCK” symbol appears on the screen, if the keyboard is locked. 3.12 ”OPEN WINDOW”... -
Page 21: Itcs Intelligent Function
3. OPERATION 3.13 ITCS INTELLIGENT FUNCTION The radiator incorporates an innovative ITCS smart temperature control system. This system activates the start-up of the device in advance of the scheduled time (2 hours maximum), ensuring that the desired temperature is achieved at the specified time and following the weekly schedule set. -
Page 22: Setting A Weekly Program On The Radiator
3.15 SETTING A WEEKLY PROGRAM ON THE RADIATOR Although we recommend you program your radiator directly through the “Haverland BT” application (see point 3.5 APP “HAVERLAND BT”), if you wish, you can set up a weekly schedule, hour by hour, day by day, directly on your radiator. - Page 23 3. OPERATION NOTE 18 By pressing the buttons you can change the time to schedule within the selected day. Press the button to configure the mode of operation on Monday at 00 H. For “00 H Monday” choose the desired operating mode for that time period (00:00 until 01:00h): comfort, economy,...
-
Page 24: Maintenance
4. OTHER Once completing the To confirm the desired operating whole week, do not press any button; mode press the buttton. the main screen will automatically be displayed. Your radiator Repeat the previous step for each hour and is programmed. for each day of the week. - Page 25 24 months as from the purchase date shown on the invoice. HAVERLAND guarantees against material, design or manufacturing faults at the moment of its original acquisition for 2 years. The electronic component and paintwork / finish for 3 years (exclude accidental damage, transport, and misuse).
- Page 26 RC3W+ RC5W+ RC7W+ RC9W+ RC11W+ Models ANTHRACITE ANTHRACITE ANTHRACITE ANTHRACITE ANTHRACITE Heat output Nominal heat output (kW) 0.45 Maximum continuous heat output (kW) 0.45 Auxiliary electricity consumption At nominal heat output (kW) 0.45 At minimum heat output (kW) 0.45 In standby mode (kW) Type of heat room temperature control Electronic room temperature control plus week timer - Room temperature control, with open window detection...
