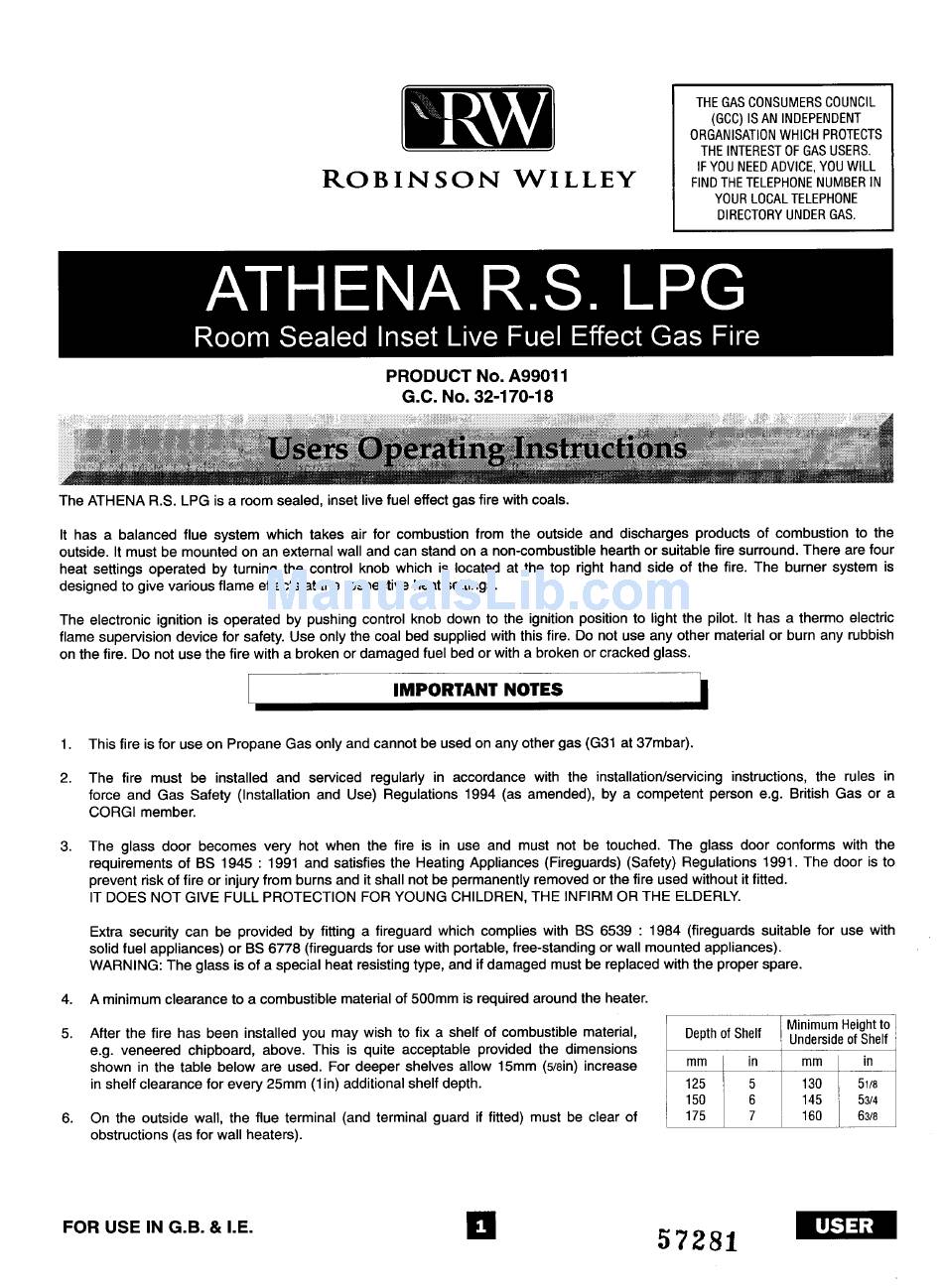

Robinson Willey ATHENA R.S. A99011 User Operating Instructions

ATHENA R.S. LPG
Room Sealed Inset Live Fuel Effect Gas Fire
It has a balanced flue system which takes air for combustion from the outside and discharges products of combustion to the
outside. It must be mounted on an external wall and can stand on a non-combustible hearth or suitable fire surround. There are four
heat settings operated by turning the control knob which is located at the top right hand side of the fire. The burner system is
designed to give various flame effects at the respective heat settings.
The electronic ignition is operated by pushing control knob down to the ignition position to light the pilot. It has a thermo electric
flame supervision device for safety. Use only the coal bed supplied with this fire. Do not use any other material or burn any rubbish
on the fire. Do not use the fire with a broken or damaged fuel bed or with a broken or cracked glass.
2. The fire must be installed and serviced regularly in accordance with the installation/servicing instructions, the rules in
force and Gas Safety (Installation and Use) Regulations 1994 (as amended), by a competent person e.g. British Gas or a
CORGI member.
3. The glass door becomes very hot when the fire is in use and must not be touched. The glass door conforms with the
requirements of BS 1945 : 1991 and satisfies the Heating Appliances (Fireguards) (Safety) Regulations 1991. The door is to
prevent risk of fire or injury from burns and it shall not be permanently removed or the fire used without it fitted.
IT DOES NOT GIVE FULL PROTECTION FOR YOUNG CHILDREN, THE INFIRM OR THE ELDERLY.
Extra security can be provided by fitting a fireguard which complies with BS 6539 : 1984 (fireguards suitable for use with
solid fuel appliances) or BS 6778 (fireguards for use with portable, free-standing or wall mounted appliances).
WARNING: The glass is of a special heat resisting type, and if damaged must be replaced with the proper spare.
5. After the fire has been installed you may wish to fix a shelf of combustible material,
e.g. veneered chipboard, above. This is quite acceptable provided the dimensions
shown in the table below are used. For deeper shelves allow 15mm (Slain)increase
in shelf clearance for every 25mm (1in) additional shelf depth.
6. On the outside wall, the flue terminal (and terminal guard if fitted) must be clear of
obstructions (as for wall heaters).
PRODUCT No. A99011
G.C. No. 32-170-18
_______
IMPORTANT NOTES
11
THE GAS CONSUMERS COUNCIL
(GCC) IS AN INDEPENDENT
ORGANISATION WHICH PROTECTS
THE INTEREST OF GAS USERS.
IF YOU NEED ADVICE, YOU WILL
FIND THE TELEPHONE NUMBER IN
YOUR LOCAL TELEPHONE
DIRECTORY UNDER GAS.
1
11
mm in
125 5
150 6
175 7
USER
57281
