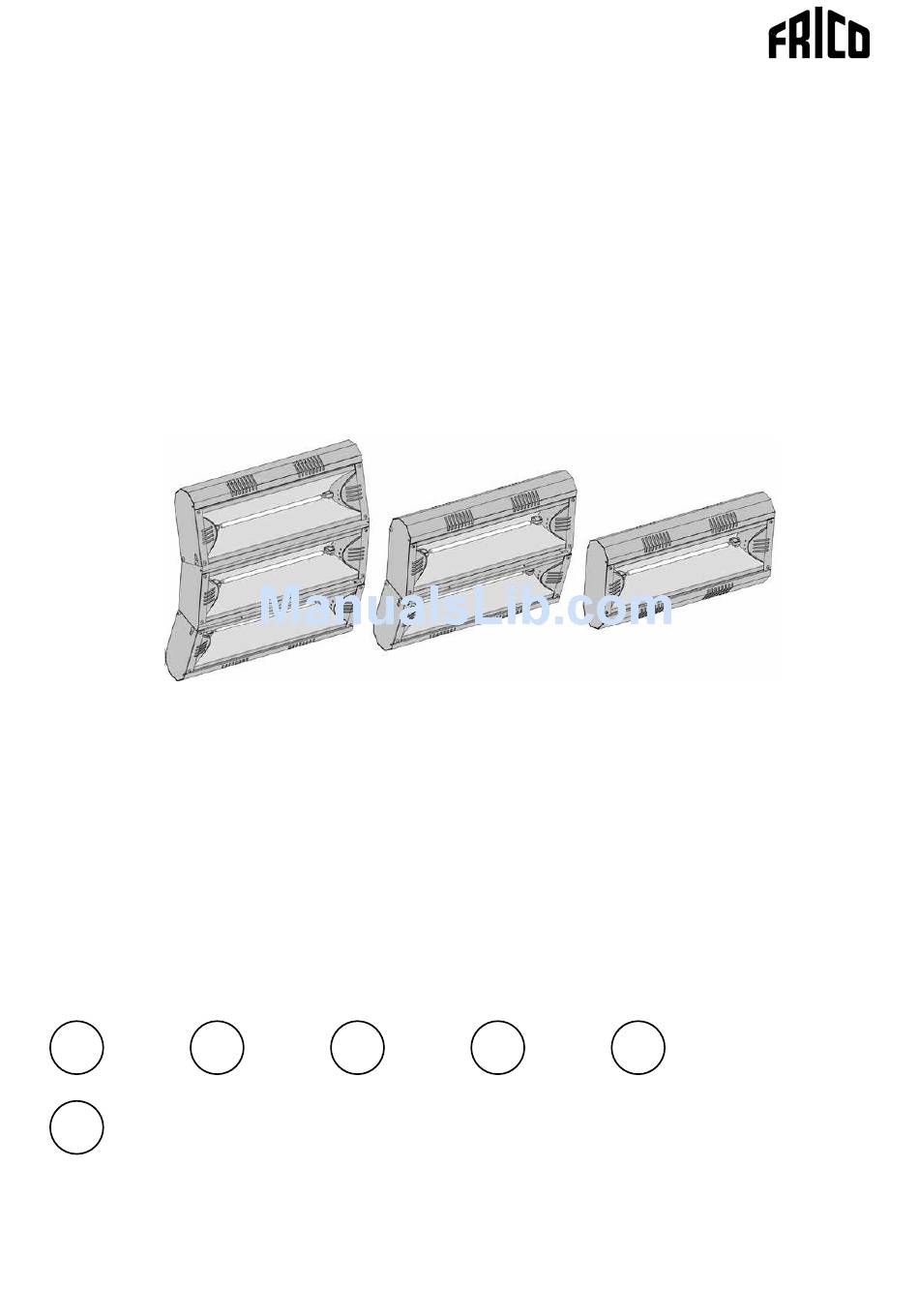

- Page 1 Original instructions Infrared heater IRCF ..7 ..9 ..11 ..13 ..15 ..17...
- Page 2 IRCF Fig. 1 Fig. 2...
- Page 3 IRCF Fig. 3...
-
Page 4: Technical Specifications
Type Heat Voltage (2) Amperage (3) Dimensions (4) Number of Weight Min cable area output (1) LxHxW lamps (5) [mm] [kg] [mm²] IRCF1500/IRCF15L 1500 230 V~ 490x230x140 3x1,5 IRCF3000/IRCF30L 3000 230 V~ 490x375x140 3x2,5 4500 400 V3~ 490x515x140 5x1,5 IRCF4500/IRCF45L... - Page 5 IRCF Accessories S123 T10S TKS16 KRT1900 IRCG1 Controls and other accessories Type Description E-nr EL-nr HxWxD (SE) (NO) [mm] Timer 87 511 87 54 312 02 155x87x43 S123 Manual switch for 1-2-3 output steps 19 346 40 54 019 23 72x64x46 T10S Electronic thermostat with concealed knob...
- Page 6 IRCF Wiring diagrams IRCF Internal wiring diagrams 6000 230V~ Thermostat IRCF Control with timer IRCF IRCF IRCF 230V~ 230V~ 1 2 3 Max load 3500W 230V~ Control by timer, contactor and switch (triphase) IRCF IRCF IRCF 400V~ 400V~ 400V~ 1 2 3 230V~ 400V~ S123...
- Page 7 IRCF Mounting and operating instructions General instructions Following important notes must be followed: Read these instructions carefully before - The heater should always be installed installation and use. Keep this manual for horizontally and only by using the brackets future reference. During installation and provided.
- Page 8 IRCF Safety safety cut-out, so that the moisture can be • For all installations of electrically heated eliminated from the element. The drying time can vary from a few hours to a few days. products should a residual current As a preventive measure, the unit should circuit breaker 300 mA for fire protection be used.
- Page 12 Main offi ce Frico AB Tel: +46 31 336 86 00 Box 102 SE-433 22 Partille mailbox@frico.se Sweden www.frico.se For latest updated information and information about your local contact: www.frico.se...
