Toa TS-773 Instruction Manual

MICROPHONES
Thank you for purchasing TOA's Microphones.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
1. GENERAL DESCRIPTION
The TS-773 and TS-774 Microphones are
designed for exclusive use with the Chairman
and Delegate units of TOA Conference system.
A ring indicator light at the microphone head
shows the operation status of the Chairman or
Delegate unit.
3. SPECIFICATIONS
Model No.
Type
Directivity
Rated Impedance
Rated Sensitivity
LED Indicator
Frequency Response
Output Connector
Finish
Length
Weight
Applicable Unit (Option)
Note: The design and specifications are subject to change without notice for improvement.

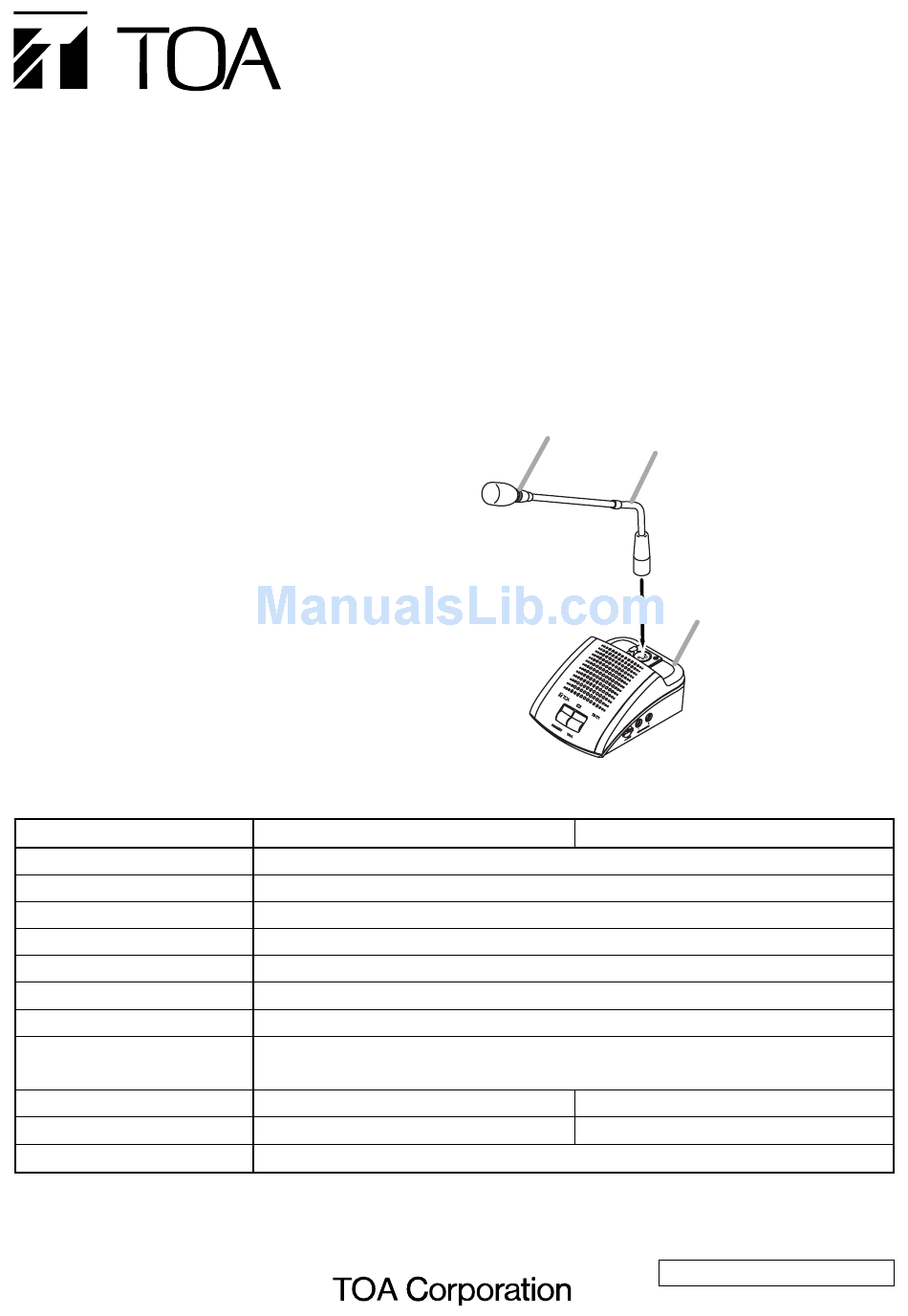

2. INSTALLATION
TS-773
Electret condenser microphone
–37 dB (1 kHz, 0 dB = 1 V/Pa)
Speech indicator (ring type)
100 – 13,000 Hz
Equivalent to XLR-4-32
Gooseneck: Stainless steel, black
Other:
368 mm (14.49")
90 g (3.17 oz)
TS-771 Chairman unit, TS-772 Delegate unit
INSTRUCTION MANUAL
Microphone in-use indicator
Microphone (TS-773/774)
Unidirectional
1.8 kΩ
ABS resin, black
518 mm (20.39")
105 g (3.7 oz)
URL: http://www.toa.jp/
TS-773
TS-774
Chairman unit (TS-771)
or
Delegate unit (TS-772)
TS-774
