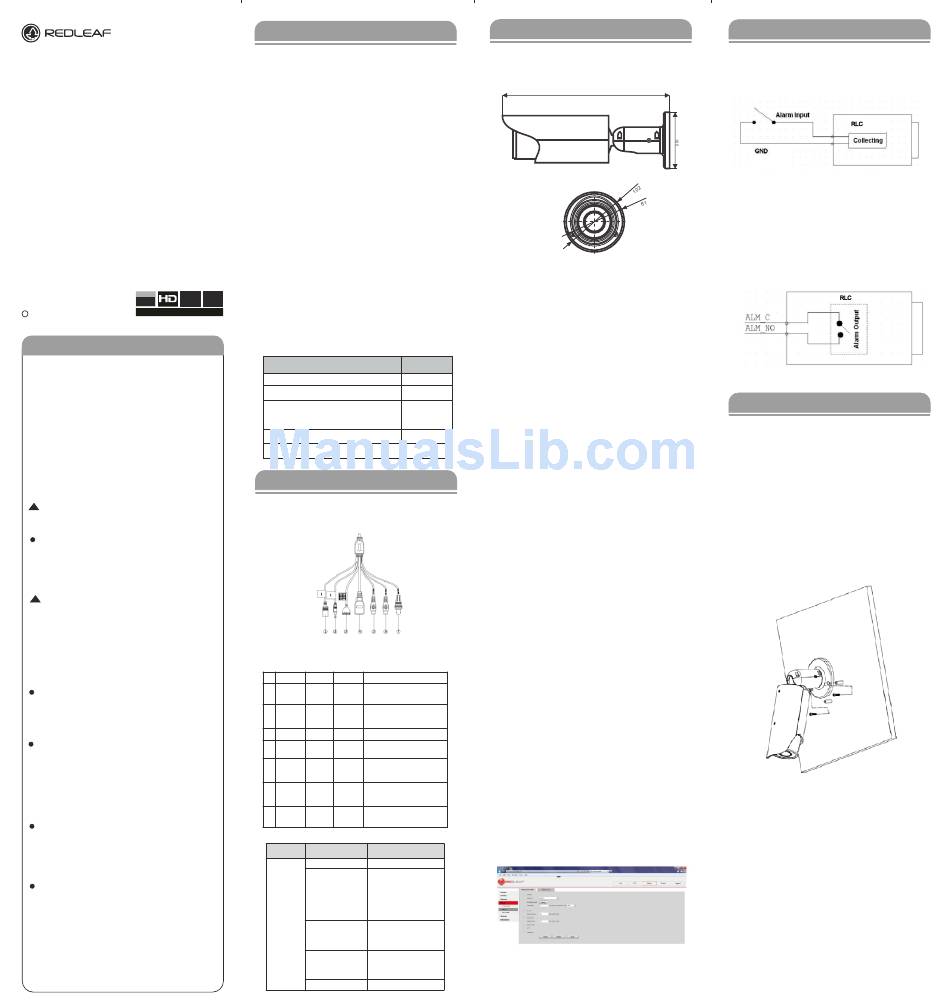

RedLeaf RLC-BF2420 Installation Manual

Network Camera

Installation Manual
Before operating the unit
please read this manual
thoroughly and retain it for
future reference.
Bullet Series
. . . . . . . . . .
FULL HD 5
. . . . . .
1080 M
www.RedLeafSecurity.net
MEGAPIXEL
Version 1.1.0
c 2012 Redleaf Corporation
Welcome
Thank you for purchasing our IP camera.
This Quick Reference guide describes how to install
and configure your RedLeaf IP camera.
Before you start to install and use your new camera,
please read these instructions carefully. Please keep
this start guide well for future reference.
Please open the accessory bag to check the items
one by one in accordance with the list below. Contact
your local retailer ASAP if something is missing or
damaged in the bag.
For the most up-to-date information about this
product, visit the official RedLeaf website at
www.redleafsecurity.net
Please read these precaution notes before the
!
operation:
1．Electrical safety
All installation and operation here should conform to
your local electrical safety codes.
The power shall conform to the requirement in the
SELV (Safety Extra Low Voltage) and the Limited
power source is rated 12V DC in the IEC60950-1.
Please note: Do not connect these two power
!
supplying sources to the device at the same
time; it may result in device damage!
We assume no liability or responsibility for all the fires
or electrical shock caused by improper handling or
installation.
We are not liable for any problems caused by
unauthorized modification or attempted repair.
2．Transportation security
Heavy stress, violent vibration or water splash are
not allowed during transportation, storage and
installation.
3．Installation
Do not apply power to the camera before completing
installation.
Please install the proper power cut-off device during
the installation connection.
Always follow the instruction guide the manufacturer
recommended.
4．Qualified engineers needed
All the examination and repair work should be done
by the qualified service engineers.
We are not liable for any problems caused by
unauthorized modifications or attempted repair.
5．Environment
This series IP camera should be installed in a cool,
dry place away from direct sunlight, inflammable,
explosive substances and etc.
Please keep it away from the electromagnetic
radiation object and environment.
Please make sure the CCD (CMOS) component is
out of the radiation of the laser beam device.
Otherwise it may result in CCD (CMOS) optical
component damage.
Welcome
Please keep the sound ventilation.
Do not allow the water and other liquid falling into the
camera.
Thunder-proof device is recommended to be
adopted to better prevent thunder.
The grounding studs of the product are
recommended to be grounded to further enhance the
reliability of the camera.
6. Daily Maintenance
Please shut down the device and then unplug the
power cable before you begin daily maintenance
work.
Do not touch the CCD (CMOS) optic component. You
can use the blower to clean the dust on the lens
surface.
Always use the dry soft cloth to clean the device. If
there is too much dust, please use the water to dilute
the mild detergent first and then use it to clean the
device. Finally use the dry cloth to clean the device.
Please put the dust proof cap to protect the CCD
(CMOS) component when you do not use the
camera.
7. Accessories
. . . . . . . . . .
Be sure to use all the accessories recommended by
8
. . . . . .
M
manufacturer.
MEGAPIXEL
Before installation, please open the package and
check all the components are included.
Contact your local retailer ASAP if something is
broken in your package.
Accessory Name
RLC Unit
Quick Start Guide
12V to 24V Conversion Cable
(For AC 24V series product only)
Installation Location Map
Resource CD
Framework
1.1 Multiple-function Combination Cable
You can refer to the following figure for multiple-function
combination cable information.
See -Figure 1-1.
Figure 1-1
Please refer to the following sheet for detailed
information.
SN port Name Function Connection Note
Power port. input DC 12V/AC
DC 12V/AC Power
-
1
24V (Please use the provided
input port
conversion cable)
24V
Hardware reset function.
Reset
Press it for 3 to 5 seconds;
2 Reset
-
system hardware can
port
restore default setup.
3 Connect to I/O port.
I/O I/O port -
Network Ethernet
Connect to standard
4 LAN
port Ethernet cable.
port
Audio Input audio signal. It can
AUDIO
5 input RCA receive the analog audio
IN
signal from the pickup.
port
Output audio signal to the
Audio
AUDIO
6
devices such as the sound
output RCA
OUT
box.
port
Output analog video signal.
Video
VIDEO
7 output BNC It can connect to the TV
OUT
monitor to view the video.
port
Please refer to the following sheet for detailed I/O port information.
Port Name Name
ALARM_COM Alarm output public port.
Alarm output port. It is to
output the alarm signal to
the alarm device.
NO: normal open alarm
ALARM_NO
output port.
It works with the
ALARM_COM port.
I/O Port
Alarm input port 1. It is to
receive the on-off signal
ALARM_IN1
from the external alarm
source.
Alarm input port 2. It is to
receive the on-off signal
ALARM_IN2
from the external alarm
source.
GND Ground port
Framework
1.2 Framework and Dimension
Please refer to the following figure for dimension
information. The unit is mm. See -Figure 1-2 and
-Figure 1-3.
1.3 Bidirectional Talk
1.3.1 Device- end to PC-end Device Connection
Please connect the speaker or the MIC to the audio
input port of the device. Then connect the earphone
to the audio output port of the PC.
Login the Web and then click the Audio button to
Amount enable the bidirectional talk function.
You can see the button becomes orange after you
1
enabled the audio talk function.
1
Click Audio button again to stop the bidirectional
1
talk function.
Listening Operation
At the device end, speak via the speaker or the
1
pickup, and then you can get the audio from the
1
earphone or sound box at the pc-end.
1.3.2 PC-end to the Device- end Device
Connection
Connect the speaker or the MIC to the audio input
port of the PC and then connect the earphone to the
audio output port of the device.
Login the Web and then click the Audio button to
enable the bidirectional talk function.
You can see the button becomes orange after you
enabled the audio talk function.
Click Audio button again to stop the bidirectional
talk function.
Please note the listening operation is null
during the bidirectional talk process.
Listening Operation
At the PC-end, speak via the speaker or the pickup,
and then you can get the audio from the earphone
or sound box at the device-end
1.3.3 Alarm Setup
Please follow the steps listed below for local alarm
input and output connection.
1) Connect the alarm input device to the alarm input
port (No.3 pin or No.4 pin) of the I/O cable.
2) Connect the alarm output device to the alarm
output port (No.2 pin) and alarm output public port
(No.1 pin). The alarm output port supports NO
(normal open) alarm device only.
3) Open the Web, go to the Figure. Please set the
alarm input 01 port for the first channel of the I/O
cable (No.3 pin). The alarm input 02 is for the 2
channel of I/O cable (No.4 pin). Then you can select
the corresponding type (NO/NC.)
4) Set the WEB alarm output. The alarm output 01 is
for the alarm output port of the device. It is the No.2
Note
pin of the I/O cable.
Please refer to figure 1-5
information.
Alarm input: When the input signal is idle or
grounded, the device can collect the different
statuses of the alarm input port. When the input
signal is connected to the 5V or is idle, the device
collects the logic "1". When the input signal is
307
grounded, the device collects the logic "0".
Figure 1-2
Please refer to figure 1-6 for alarm output
information.
Port ALARM_COM and Port ALARM_NO
composes an on-off button to provide the alarm
output.
If the type is NO, this button is normal open. The
button becomes on when there is an alarm output.
If the type is NC, this button is normal off. The
Figure 1-3
button becomes off when there is an alarm output.
2 Installation
2.1 Device Installation
Please follow the steps listed below to install the
device. Please refer to - Figure 2-1 for reference.
-
-
nd
2-2
Use the inner hex wrench from the installation
accessories bag to remove the four inner hex
screws from the rear cover. Please refer to -Figure
2-2 to find the SD card slot position. Insert the SD
card and the fix the four screws of the rear cover.
Important
-
-
Figure 1-4
for alarm input
Framework
Figure 1-5
Figure 1-6
Installation
Please draw the installation holes in the
installation surface and then mark
three expansion bolts holes in the
surface. Insert three bolts in the hole
and secure firmly.
Please line up the installation holes of
the bottom of the pendant mount
bracket to the installation holes in the
surface. Then insert the three bolts to
the holes of the bottom of the bracket.
Finally fasten the device on the
installation surface.
Figure 2-1
SD Card Installation
Please make sure the cable connection
between the power board and the main
board is firm. Otherwise, it may result in
device malfunction.
The rear cover of the device adopts the
waterproof design. Please secure four
screws firmly after you complete the SD card
installation.
