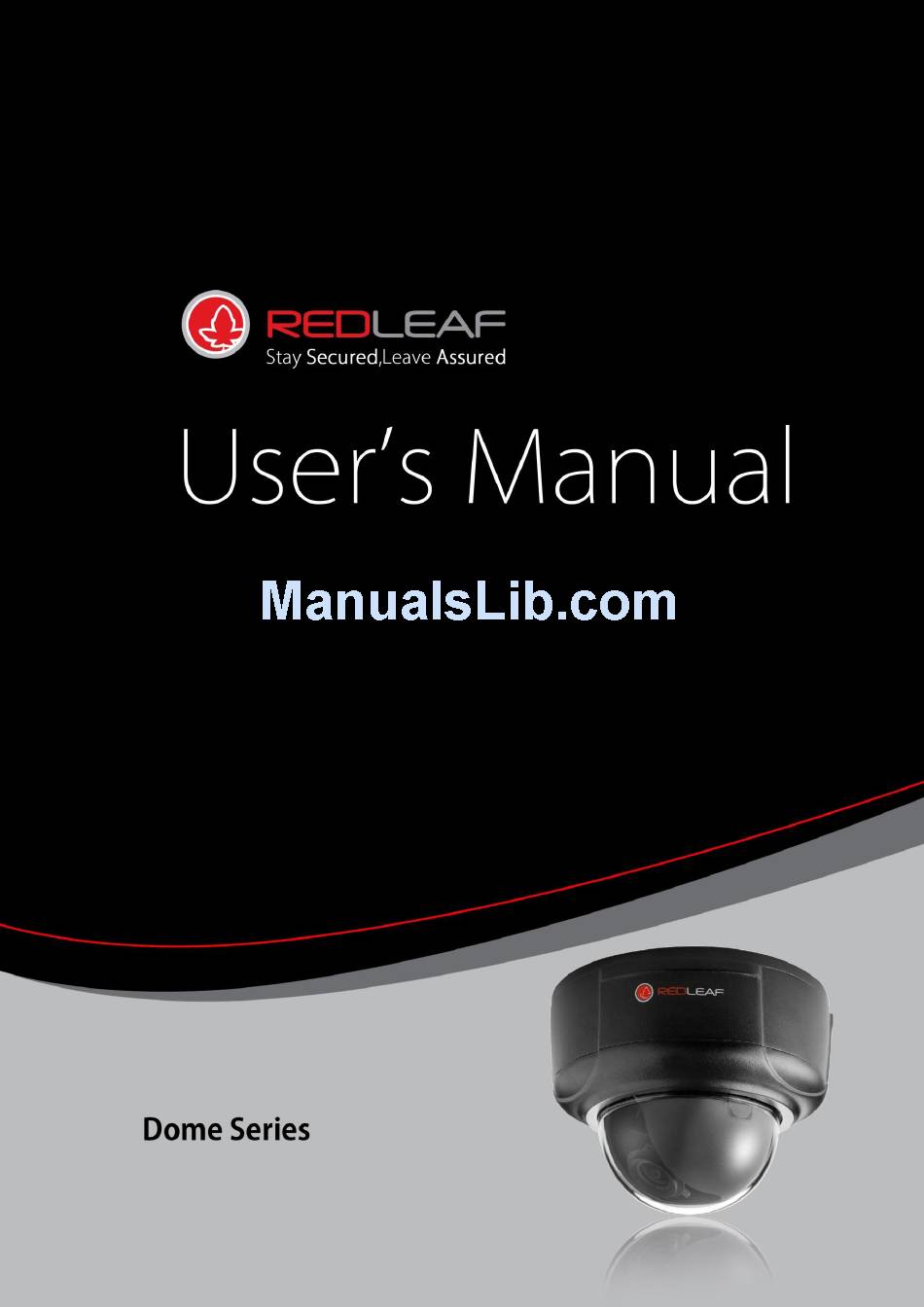

RedLeaf RLC-DF series User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RLC-DF series and is the answer not in the manual?

Questions and answers

Related Manuals for RedLeaf RLC-DF series

Summary of Contents for RedLeaf RLC-DF series

  • Page 2: Table Of Contents

    INDEX ................6 1. GENERAL INTRODUCTION 1.1. Overview ....................... 6 1.2. Features ........................ 7 1.3. SPECIFICATIONS ..................... 8 1.3.1 Performance ..................... 8 ....................15 2. STRUCTURE 2.1. Multiple-function Combination Cable ..............15 2.2. FRAMEWORK AND DIMENSION ................16 2.3. BIDIRECTIONAL TALK ................... 16 2.3.1.
  • Page 3 WELCOME Thank you for purchasing our IP camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
  • Page 4 IMPORTANT SAFEGUARDS AND WARNINGS 1. ELECTRICAL SAFETY All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC in the IEC1-60950. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
  • Page 5 Do not allow the water and other liquid falling into the camera. Thunder-proof device is recommended to be adopted to better prevent thunder. The grounding holes of the product are recommended to be grounded to further enhance the reliability of the camera. 6.

  • Page 6: General Introduction

    1. GENERAL INTRODUCTION 1.1. Overview This series IP camera integrates the traditional camera and network video technology. It adopts audio and video data collection, transmission together. It can connect to the network directly without any auxiliary device. This series RLC uses standard H.264 video compression technology and MJPEG audio compression technology, which maximally guarantee the audio and video quality.

  • Page 7: Features

    1.2. Features...

  • Page 8: Specifications

    1.3. SPECIFICATIONS 1.3.1 Performance Please refer to the following sheet for Red Leaf performance specification.

  • Page 15: Structure

    2. STRUCTURE 2.1. Multiple-function Combination Cable You can refer to the following figure for multiple-function combination cable information. See Figure 2-1. Please refer to the following sheet for detailed information.

  • Page 16: Framework And Dimension

    2.2. FRAMEWORK AND DIMENSION Please refer to the following two figures for dimension information. The unit is mm. See Figure 2-2 and Figure 2-3. 2.3. BIDIRECTIONAL TALK 2.3.1. Device Connection Before the operation, connect the active pickup to the audio input port of the device.

  • Page 17: Operation

    2.3.2. OPERATION Login the Web and click the bidirectional talk button to enable this function. Click this button again; you can close current bidirectional talk. 2.4. ALARM SETUP The alarm interface is shown as in Figure 2-4. Please follow the steps listed below for local alarm input and output connection.

  • Page 18: Installation

    4) Set the WEB alarm output. The alarm output 01 is for the alarm output port of the device. It is the No.2 pin of the I/O cable. 3. INSTALLATION This series RLC can be put on the table to realize surveillance. Or you can use the bracket or the in-ceiling installation to realize the hang function.
  • Page 19 Draw out the cable exit and four screw holes in the installation position according to the device pedestal. Dig the four plastic expansion bolt holes and cable exit. Insert the four plastic expansion bolts into the screw holes STEP 3 Adjust the camera pedestal to the proper position and then draw the cable through the cable exit you just dug in the ceiling (wall).
  • Page 20 STEP 7 Adjust the device position and line up the three inner hexagon screws of the device to the three holes of the installation position. Put the three inner hexagon screws into the screw holes at the bottom of the pedestal. Use the inner hexagon screwdriver to fix firmly.

  • Page 21: Sd Card Installation

    3.2. SD CARD INSTALLATION Important Before you install the SD card, please unplug he power cable to shut down the device! First, please refer to the step1 in the chapter 3.1 to open the device. Second, please adjust the proper position to install the SD card. Last, please refer to the step 7 in the chapter 3.1 to complete the installation.
  • Page 22 STEP 3 When you are adjusting the screw A, the video may become blur. Please slightly adjust the screw B manually to get the vivid video. Finally fix the screw. If you want to modify the device IP address without logging in the device web interface, you can go to the configuration tool main interface to set.

  • Page 23: Web Operation

    After you logged in, the configuration tool main interface is shown as below. See Figure 4-5. 5. WEB OPERATION This series RLC product support the Web access and management via PC. Web includes several modules includes monitor channel preview, PTZ control, system configuration, alarm and etc.

  • Page 24: Login And Main Interface

    . Please set the IP address, subnet mask and gateway of the PC and the RLC respectively. RLC default IP address is 192.168.1.108. Subnet mask is 255.255.255.0. Gateway is 192.168.1.1 . Use order ping ***. ***. ***. *** (* IP camera address) to check connection is OK or not.
  • Page 25 If it is your first time to login in, system pops up warning information to ask you whether install control webrec.cab or not after you logged in for one minute. Please click OK button, system can automatically install the control. When system is upgrading, it can overwrite the previous Web too.

  • Page 26: Faq

    Please refer to the Web Operation Manual included in the resource CD for detailed operation instruction. 6. FAQ...

  • Page 27: Appendix Toxic Or Hazardous Materials Or Elements

    Appendix Toxic or Hazardous Materials or Elements Note O: Indicates that the concentration of the hazardous substance in all homogeneous materials in the parts is below the relevant threshold of the SJ/T11363-2006 standard. X: Indicates that the concentration of the hazardous substance of at least one of all homogeneous materials in the parts is above the relevant threshold of the SJ/T11363-2006 standard.
  • Page 28 About RedLeaf Company: RedLeaf is a Canadian-based IT company offering state-of-the-art network security products fulfilling customers’ needs for cutting edge security technologies. Founded in 2002, RedLeaf internationally provides professional IP based video security solutions for suveillance, remote monitoring other security...
