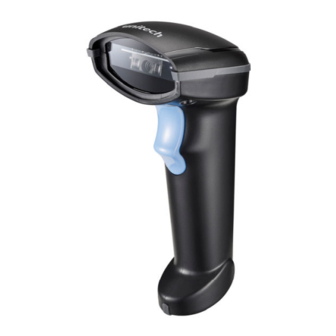

Unitech MS340 Quick Start Manual

Test & Finish
Step 2:
Open a word processing program such as
Microsoft Word or Notepad on your host. Now
scan the following barcode:
If the word "unitech" appears on the screen you
have succesfully installed your scanner.
Congratulations!
Configuration Flow Chart

Interface Selection

USB*
Keyboard
RS232
Virtual COM
* : Default Option
** : For more detailed scanner setting, please go to www.ute.com to download the user manual and
scanner configuration manager utility.
Getting Started ( For USB Cable )
Step 1:
Installing the scanner to the Host System
1. Connect the USB cable of MS340 to the USB port on your host PC.
2. After six beeps, MS340 is successfully connected with your host PC,
then the driver will be started to install automatically.
3. Please go to step 2: Test & Finish.
Tips for Switching Cable
Before removing the cable from the scanner, it is recom-
mended that the power on the host system is off and the
power supply has been disconnected from unit.
1. Find the small "Pin-hole" on the
bottom of the unit.
2. Use a bended regular paperclip
and insert the tip into the hole.
3. You will hear a "click", then gentle
on the strain- relief of the cable
and it will slide out of the scanner.
(Please scan the following barcodes for configuration)
Reading Mode Selection
Trigger ON / OFF*
Good Read OFF
Continuous / Auto Power ON
MS340

Quick Start Guide

Presentation
Flash / Auto Power On
Continuous/Trigger OFF
Pin-hole
Flash
Testing
