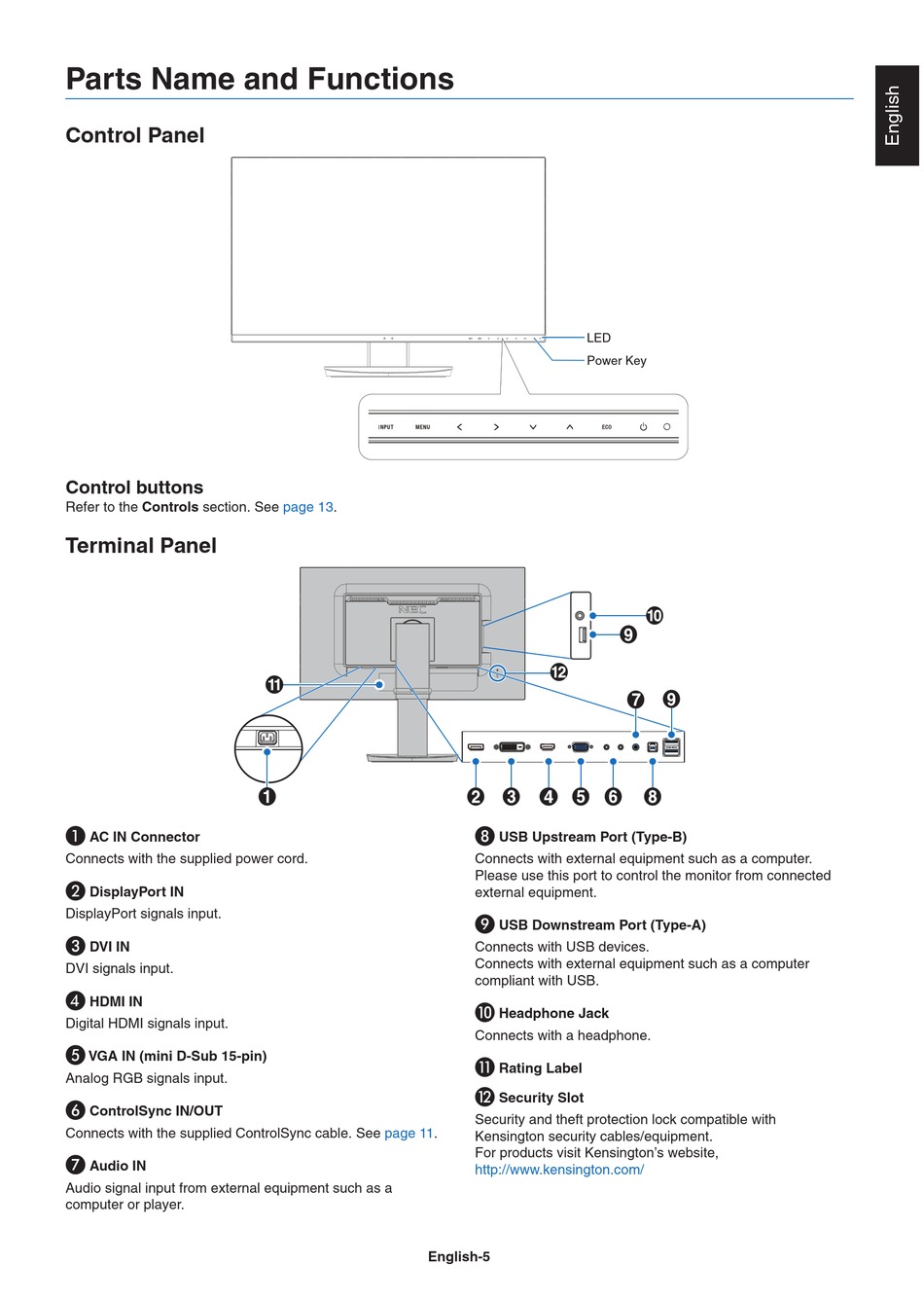

Parts Name and Functions
Control Panel
Control buttons
Refer to the Controls section. See
Terminal Panel
A
AC IN Connector
Connects with the supplied power cord.
B
DisplayPort IN
DisplayPort signals input.
C
DVI IN
DVI signals input.
D
HDMI IN
Digital HDMI signals input.
E
VGA IN (mini D-Sub 15-pin)
Analog RGB signals input.
F
ControlSync IN/OUT
Connects with the supplied ControlSync cable. See
G
Audio IN
Audio signal input from external equipment such as a
computer or player.
page
13.
page
11.
English-5
LED
Power Key
H
USB Upstream Port (Type-B)
Connects with external equipment such as a computer.
Please use this port to control the monitor from connected
external equipment.
I
USB Downstream Port (Type-A)
Connects with USB devices.
Connects with external equipment such as a computer
compliant with USB.
J
Headphone Jack
Connects with a headphone.
K
Rating Label
L
Security Slot
Security and theft protection lock compatible with
Kensington security cables/equipment.
For products visit Kensington's website,
http://www.kensington.com/
