ControlSync
ControlSync works by controlling all connected sub monitors from the master monitor simultaneously, and also by controlling a
target monitor from the master monitor using the INDIVIDUAL ADJUST function (see
Controlling all connected sub monitors (Synchronized control):

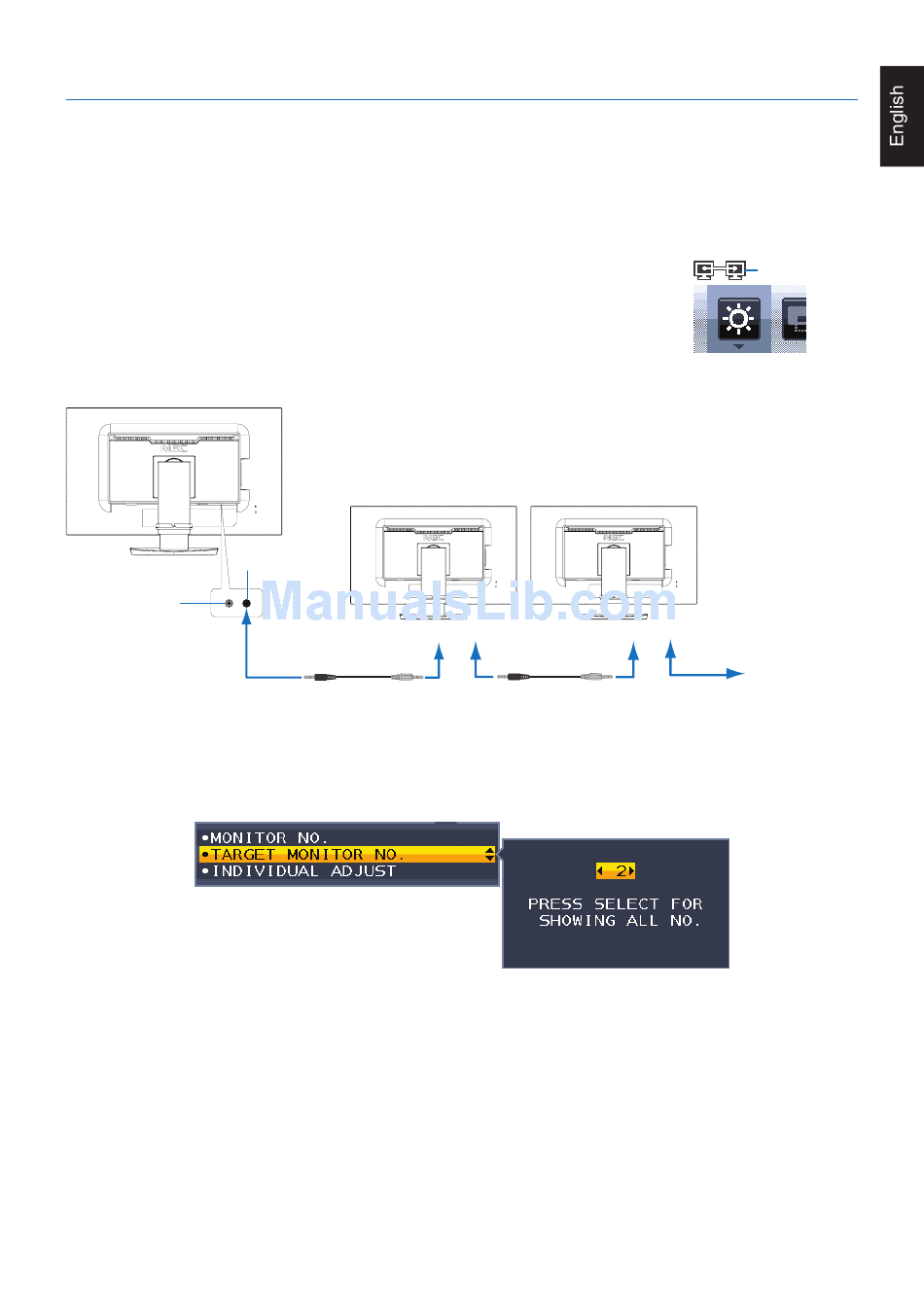

1. Connect the master monitor to a sub monitor via a ControlSync cable (ø 2.5) into ControlSync IN/OUT.
2. Follow the steps for DATA COPY (see
the connected sub monitor(s) automatically.
3. Up to 5 sub monitors can be daisy-chained via ControlSync.
NOTE:
Connect the master monitor via ControlSync OUT connector.
The ControlSync icon will appear on the upper left of the OSD menu in the sub monitor.
Do not connect IN-IN or OUT-OUT.
Do not make a "loop" connection.
Once the monitors are connected, turn the master monitor's power key off and on
to check that ControlSync operates correctly.
If the monitors are connected with DisplayPort cables, please connect the master monitor to the computer.
Master Monitor
OUT (Black)
IN (Gray)
Controlling a target monitor (Individual adjust)
1. Touch the MENU/EXIT key to show the OSD menu on the master monitor.
2. Move the DOWN/UP key down to select TARGET MONITOR NO. then set the sub monitor number.
If you touch the INPUT/SELECT key, each sub monitor displays its monitor number.
3. Touch the DOWN/UP key down to select INDIVIDUAL ADJUST and then set it to ON.
Control the sub monitor's OSD using the master monitor's control keys.
NOTE:
To disable INDIVIDUAL ADJUST, touch the SELECT and EXIT keys simultaneously.
page
19). When a setting for the master monitor is adjusted, it will be copied and sent to
Sub Monitor 1
IN
OUT
(Black)
(Gray)
ControlSync cable
English-11
page
19).
Sub Monitor 2
IN
OUT
(Black)
(Gray)
ControlSync cable
ControlSync icon
Up to 5 sub monitors
Next monitor
