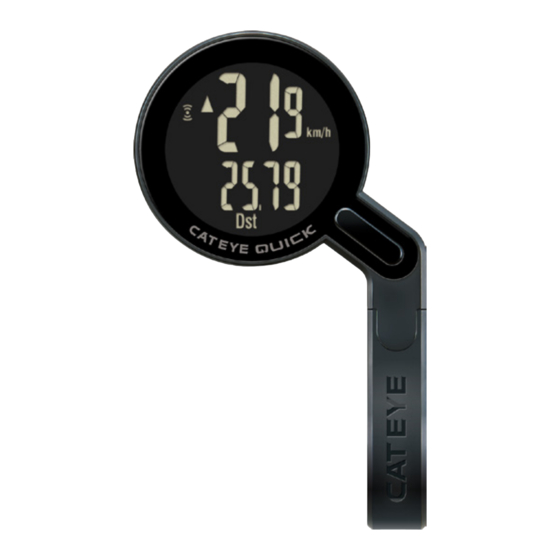

  • Page 1 Mounting the QUICK CATEYE Q U I C K Setting up the QUICK CYCLOCOMPUTER CC-RS100W Starting measurement Changing settings • This instruction manual is subject to change without notice. See our website for the latest instruction manual (PDF). • For details on mounting and...

  • Page 2: Mounting The Quick

    Mounting the QUICK (1/3) Bracket Bracket rubber pad Speed sensor Magnet Sensor rubber pad Nylon tie (x 2) Mount the bracket ø 25 to 26 mm Handlebar diameter Bracket Bracket rubber pad ø 31.8 mm Tightening torque recommendation Bracket 0.5 N•m (50 N•cm) Correct Wrong Adjust the mounting angle so that the...

  • Page 3: Mount The Speed Sensor

    Mounting the QUICK (2/3) Mount the speed sensor • Mount the speed sensor in a po- Mounting on right front fork sition where the distance from the QUICK to the speed sensor is within the signal range. • Mounting on left front fork Nylon tie Speed sensor Pull tight...

  • Page 4: Adjust The Speed Sensor And The Magnet

    Mounting the QUICK (3/3) Adjust the speed sensor and the magnet The magnet passes through The clearance between the the speed sensor zone. speed sensor and the magnet is within 5 mm (3/16”). Magnet Speed sensor Sensor zone Magnet Speed sensor * The magnet may be mounted at any position on spoke as long as attachment conditions are satisfied.

  • Page 5: Setting Up The Quick

    Setting up the QUICK MODE MODE Short press When using the Battery case cover QUICK for the MENU first time, con- MODE figure the initial Long press (2 sec.) settings. Clear all data. Press the AC button on the back of the QUICK. ( 1/2 ) * All data is deleted and the QUICK is reset to its factory default settings.

  • Page 6: Tire Circumference

    Setting up the QUICK Tire circumference Tire circumference can be determined by either of the following two methods: • Measure the actual tire circumference (L) After ensuring that the tire pressure is appropriate, sit on your bike, roll it forward so that the tire makes one full revolution (use the valve or other marking as a reference), and measure the dis- L mm tance traveled on the road.

  • Page 7: Starting Measurement

    Starting measurement [Measurement screen] Current speed 0.0 (4.0) – 99.9 km/h Icon Description [0.0 (3.0) – 62.0 mph] Sensor signal icon Flashes in sync with the sensor Measurement unit signal. Pace arrows Current function Indicates whether the current speed is faster ( ) or slower ( ) than the average speed.

  • Page 8: Starting/Stopping Measurement

    Starting measurement [Measurement screen] Starting/stopping measurement Measurement starts automatically when the bicycle moves. Measurement starts Measurement stops During measurement the measurement unit (km/h or mph) flashes. Resetting data MODE Pressing MODE for 2 seconds when on the measurement screen (2 seconds) resets all measurement data to 0 (excluding Odo).

  • Page 9: Changing Settings

    Changing settings [Menu screen] On the measurement screen, press MENU to go to the menu screen. Various settings can be changed on the menu screen. * After changing settings, always press MENU to confirm changes. * When the menu screen is left on for 1 minute, the QUICK returns to the measurement screen. Measurement Menu screen Description...
  • Page 10 Changing settings [Menu screen] Measurement Menu screen Description screen MENU ( Back side ) Tire circumference MODE Clock Set the clock. Change setting Select display MODE MODE (Press and hold) 12h ↔ 24h MODE MODE (Press and hold) Set “hours” Confirm MODE MENU...

  • Page 11: Manual Distance Input

    Changing settings [Menu screen] Measurement Menu screen Description screen Manual distance input Set total distance traveled manually. MENU (0 – 99999 km [mile]) ( Back side ) * Fractions cannot be entered. * Setting an arbitrary value for total distance al- lows you to start from the value you entered.

  • Page 12: Select Measurement Unit

    Changing settings [Menu screen] Measurement Menu screen Description screen MENU ( Back side ) Tire circumference MODE Clock MODE Manual distance input MODE Select measurement unit MENU Select the measurement unit (km/h or mph) MODE ( Back side ) ( 4/4 ) Change setting MODE MODE...

  • Page 13: Wireless Sensor

    Modifications The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by CatEye Co., Ltd. May void the user ’s authority to operate the equipment. Canada 310 ( 1/3 ) This device complies with Industry Canada’s RSS-310.

  • Page 14: Maintenance

    Appendix Maintenance If the QUICK or accessories become dirty, clean with a soft cloth which is moistened with mild soap. Replacing the battery • QUICK When (battery icon) is turned on, re- Open place the battery. Insert a new lithium battery CR1616 (CR1616) with the (+) side up.

  • Page 15: Specifications

    If the product fails to work due to 1602196 normal use, CatEye will repair or replace the defect at no Speed sensor charge. Service must be performed by CatEye or an autho- (SPD-01) rized retailer.
