- Page 1 START Click the button and follow the in- structions. CATEYE STRADA WIRELESS CC-RD300W Quick Start...

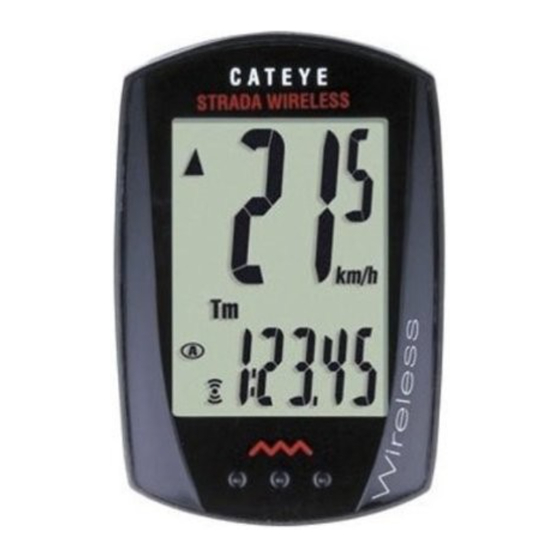

- Page 2 Thank you for purchasing our cyclocomputer CATEYE STRADA WIRELESS. This Quick Start Manual explains how to set up the computer and how to install the unit on your bicycle. Please set up the unit according to the specified procedure, then it will be ready for use as a cyclocomputer.
- Page 3 This PDF contains a movie file. When you click on the movie screen, a message regarding security appears. Click the “Trust in the text” or “Play” button to close the message. Click the screen again to play the movie. Next...
- Page 4 CATEYE STRADA WIRELESS Return to a Cover Quick Start Manual Contents Click the item you wish to view. Setting up the computer How to install the bracket (movie) How to install the speed sensor (movie)
- Page 5 Operation of buttons Set up the computer by operating the buttons as follows. Check the button position before you start setting up. Back MENU MODE Press the MENU button and the MODE button on the back of the computer. Next...
-
Page 6: Setting Up The Computer
CATEYE STRADA WIRELESS Return to Contents Quick Start Manual Setting up the computer Clear all data (initialization) Clear all data (initialization) Press the AC button on the back of the computer. After full lighting of the screen, the computer switch- es to the speed unit setting screen to start setup. - Page 7 CATEYE STRADA WIRELESS Return to Contents Quick Start Manual Setting up the computer Setting the speed unit Clear all data (initialization) When the MODE button is pressed, either “km/h” or “mph” is selected for the speed unit display. Select the display of your choice.
- Page 8 CATEYE STRADA WIRELESS Return to Contents Quick Start Manual Setting up the computer Entering the tire circumference Clear all data (initialization) Enter the tire circumference (mm) of your bicycle with 4 digits using the tire circumference reference table. Pressing the MODE button increases the value flashing,...
- Page 9 CATEYE STRADA WIRELESS Return to Contents Quick Start Manual Setting up the computer Setting the clock display Clear all data (initialization) When you press and hold the MODE button, “24h” flash- When the MODE button is pressed, either “12h” or “24h”...
- Page 10 CATEYE STRADA WIRELESS Return to Contents Quick Start Manual Setting up the computer Setting the hour Clear all data (initialization) Pressing the MODE button increases the value flashing (“Hour” of the clock). Enter any value. After entering, press and hold the MODE button to pro- Setting the speed unit ceed to the next step “Setting the minute”.
- Page 11 CATEYE STRADA WIRELESS Return to Contents Quick Start Manual Setting up the computer Setting the minute Clear all data (initialization) Pressing the MODE button increases the value flashing (“Minute” of the clock). Enter any value (Pressing and holding MODE rapidly increases the value).
- Page 12 CATEYE STRADA WIRELESS Return to Contents Quick Start Manual Setting up the computer Now, setup of the computer is completed. Clear all data (initialization) If the bracket and speed sensor are not installed on your bicycle, return to Contents, click the movies of how to...
-
Page 13: How To Install The Bracket (Movie)
CATEYE STRADA WIRELESS Return to Contents Quick Start Manual How to install the bracket... -
Page 14: How To Install The Speed Sensor (Movie)
CATEYE STRADA WIRELESS Return to Contents Quick Start Manual How to install the speed sensor... - Page 15 CATEYE STRADA WIRELESS Return to Contents Quick Start Manual Setting up the computer Tire circumference reference table ETRTO Tire size L (mm) ETRTO Tire size L (mm) ETRTO Tire size L (mm) ETRTO Tire size L (mm) ETRTO Tire size L (mm) 47-203 12x1.75...
