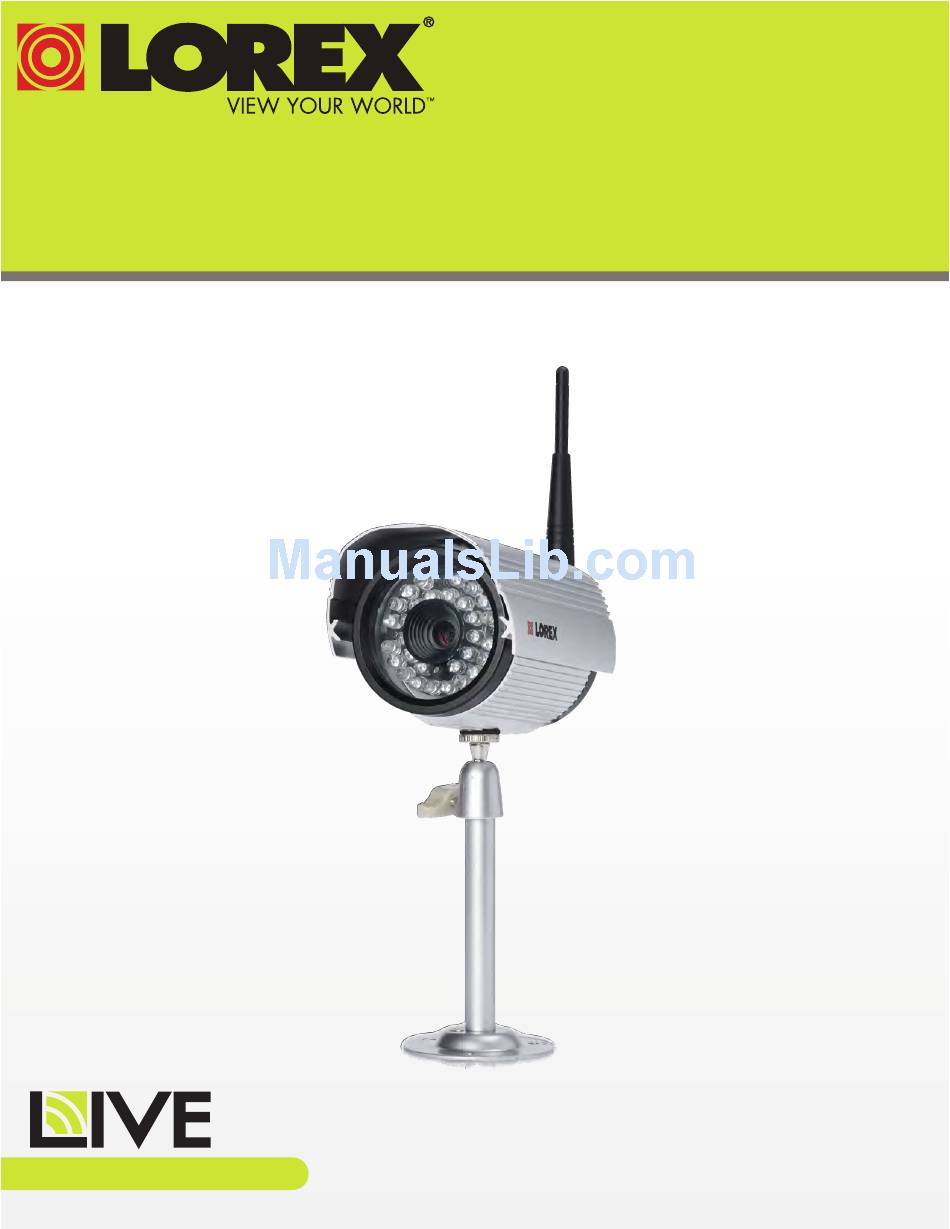

- Page 1 WIRELESS DIGITAL SECURITY CAMERA USER’S GUIDE English Version 1.0 www.lorextechnology.com LW2275 SERIES...
- Page 2 Thank you for purchasing this Lorex product. This manual refers to the following products: • LW2275 • LW2275PK2 To learn more about this product and to learn about our complete range of accessory products, please visit our website at: www.lorextechnology.com...
-
Page 3: Need Help
Customer Care (for warranty and accessory sales) customerservice@lorexcorp.com Customer Feedback info@lorexcorp.com By Phone: North America: Customer Service: 1-888-425-6739 (1-888-42-LOREX) Tech Support: 1-877-755-6739 (1-877-75-LOREX) Mexico: 1-800-514-6739 International: +800-425-6739-0 (Example: From the UK, dial 00 instead of +) M a y 5 201 1 - R11... -
Page 4: Necesita Ayuda
NO DEVUELVA ESTE PRODUCTO A LA TIENDA NE RETOURNEZ PAS CE PRODUIT AU MAGASIN Cerciórese de por favor colocar su producto en www. Veuillez veiller à enregistrer votre produit à www.lorex- lorexcctv.com/registration para recibir actualizacio- cctv.com/registration pour recevoir des mises à jour et nes y la información del producto... - Page 5 B E F O R E Y O U S TA R T THIS PRODUCT MAY REQUIRE PROFESSIONAL INSTALLATION LOREX IS COMMITTED TO FULFILLING YOUR SECURITY NEEDS • We have developed user friendly products and documentation. Please read the Quick Start Guide and User Manual before you install this product.
- Page 6 ESTE PRODUCTO PUEDE EXIGIR UNA CE PRODUIT POURRAIT EXIGER UNE INSTALACIÓN PROFESIONAL INSTALLATION PROFESSIONNELLE LOREX S’ENGAGE À SATISFAIRE LOREX SE COMPROMETE A SATISFACER VOS BESOINS SÉCURITAIRES SUS NECESIDADES EN SEGURIDAD • Favor de leer la guía de instalación rápida y la •...
-
Page 7: Important Safeguards
Important Safeguards In addition to the careful attention devoted to quality standards in the manufacture process of your video product, safety is a major factor in the design of every instrument. However, safety is your responsibility too. This sheet lists important information that will help to ensure your enjoyment and proper use of the video product and accessory equipment. - Page 8 Service Servicing Cleaning - Do not attempt to service this video - Unplug the video product from the wall equipment yourself as opening or removing covers outlet before cleaning. Do not use liquid cleaners or may expose you to dangerous voltage or other aerosol cleaners.
-
Page 9: General Precautions
General Precautions All warnings and instructions in this manual should be followed. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. Use a water dampened cloth for cleaning. Do not use the receiver in a humid or wet place. Keep enough space around the unit for ventilation. -
Page 10: Camera Features
Features • FHSS Digital Wireless Technology provides excellent image quality and clarity • Simple installation. No video cable required • Connect multiple receivers to your surveillance recorder (DVR) to create a wireless surveillance solution • Easily connects to a TV/monitor (RCA) or DVR (BNC adapter included) •... -
Page 11: Table Of Contents
Table of Contents 1. Getting Started ....... . . 1 2. -
Page 13: Getting Started
1. Getting Started The system comes with the following components: 1 X WIRELESS CAMERA 1 X CAMERA MOUNTING STAND* 1 X WIRELESS RECEIVER* (WITH SUNSHADE)* 1 X MOUNTING KIT* 2 X POWER ADAPTERS* 1 X RCA/BNC ADAPTER* (FOR CAMERA & RECEIVER) 2 X WIRELESS ANTENNA* ... -
Page 14: Wireless Receiver
Wireless Receiver 2. Wireless Receiver 2.1 Front Removable Wireless Antenna (SMA): Connects to antenna jack at the back of receiver. Resolution button: Press to switch between VGA and QVGA video resolutions. Front LED: Glows green to indicate receiver is powered on. Pairing Button: For details, see “Pairing Cameras”... -
Page 15: Wireless Camera
Wireless Camera 3. Wireless Camera Removable Wireless Antenna (SMA): Connects to antenna jack at the back of camera. Camera Stand Pairing Button: For details, see “Pairing Cameras” on page 7. Antenna Jack: Connect the wireless antenna here. AC Power Cable Attention - This camera includes an Auto Mechanical IR Cut Filter. -
Page 16: Installing The Camera
Installing The Camera 4. Installing The Camera • Before you install the camera, carefully plan where and how it will be positioned and where you will route the cable that connects the camera to the power adapter. • Before starting permanent installation, verify the camera’s performance by observing the image on a monitor when camera is positioned in the same location / position where it will be permanently installed. - Page 17 Installing The Camera Screw the camera onto the head of the stand (1). Adjust the angle of the camera until the desired view is set. Tighten the thumbscrew to secure the camera position (2). Connect the power cable from the camera to the power adapter. Plug the power adapter into a power outlet or surge protector.
-
Page 18: Installing The Wireless Receiver
Installing the Wireless Receiver 5. Installing the Wireless Receiver Before powering on the receiver, make sure to first connect and power on the camera. This will ensure a proper connection. Screw the wireless antenna to the back of the receiver. Connect the yellow video cable and white audio cable (mono) to your TV, DVR, or observation system. -
Page 19: Pairing Cameras
Pairing Cameras 6. Pairing Cameras IMPORTANT The camera and receiver have already been pre-paired at the factory, which means that they are exclusively communicating with each other. If for some reason the pairing is lost, follow these steps to pair up the camera and receiver. To pair the camera to the receiver: Make sure that the camera and receiver are both powered up. -
Page 20: Appendix A: System Specifications
Appendix A: System Specifications 7. Appendix A: System Specifications 7.1 Receiver Specifications Receiving Frequency Range 2.400GHz~2.480GHz RX Sensitivity -81dBm Demodulation GFSK Data Rate 160 Kb/s Supported Resolution VGA (640 x 480) up to 12 FPS ; or QVGA (320 x 240) up to 30 FPS Termination RCA Video, RCA Audio Power Requirement... -
Page 21: Appendix B: About Digital Wireless Technology
Appendix B: About Digital Wireless Technology 8. Appendix B: About Digital Wireless Technology The Digital Wireless signal transmission type used by the Lorex LW2275 Series is also known as FHSS—Frequency Hopping Spread Spectrum. This type of signal results in a private, interference-free signal. -
Page 22: Appendix C: Facts About Digital Wireless Cameras
Appendix C: Facts About Digital Wireless Cameras 9. Appendix C: Facts About Digital Wireless Cameras 9.1 Wired vs. Wireless Cameras A wired camera has a video cable that transmits the video signal from the camera to a recording or viewing device. A wireless camera does not use a video cable. -
Page 23: Are Digital Wireless Camera Signals Secure
9.5 How many frames per second should I expect from a digital wireless camera? Current Lorex digital wireless cameras offer 10 - 30 FPS (Frames Per Second) performance. Actual frame rate depends mainly on signal strength and resolution (see the chart above). -
Page 24: Appendix D: Troubleshooting
Appendix D: Troubleshooting 10. Appendix D: Troubleshooting If you have problems with your system, there is often a quick and simple solution. Please try the following: Problem Solution There is no picture from the • Make sure that the camera is plugged into a power outlet camera and that the power adapter is plugged in properly. -
Page 25: Appendix E: Frequently Asked Questions
Appendix E: Frequently Asked Questions 11. Appendix E: Frequently Asked Questions Q: What is the maximum distance I can have between the camera and the receiver? A: Typically 450 feet (137m) with a clear line of sight in open space, or approximately 150 feet (46m) in a house. -
Page 26: Appendix F: Extending Wireless Signal Range
Appendix F: Extending Wireless Signal Range 12. Appendix F: Extending Wireless Signal Range DISCLAIMER: Certain accessories are not available in all markets. There are several ways to boost your wireless signal as well as options to help you extend the range of the wireless signal. Clear Line-of-Sight The digital wireless signal is virtually interference free. - Page 27 Appendix F: Extending Wireless Signal Range 2.4 GHZ Directional Wireless Panel Antenna Use the 2.4GHz Directional Wireless Panel Antenna (model #: ACCANTD9) to focus a wireless signal onto one specific camera in order to increase range of transmission (clear line-of-sight between the camera and the antenna is required).
- Page 28 LW2275 SERIES Ver sion 1.0 www.lorextechnology.com Copyright © 2011 Lorex Technology Inc.
