Introduction
The CM2002 One-Camera IP Video server converts an analog video source into an IP video stream. The Legrand Intuity app auto-discovers
the IP Video Server for easy integration of the SCI Video Door Unit with the app. Connect your compatible devices and move another step
closer to the total home control experience.
Standard Setup (Fig. 4)

Installation

Setting Up Monitors (Fig. 5)
STEP 1: Press the right mouse button while hovering over the computer (PC) desktop.
STEP 2: Select Screen Resolution from the menu.
STEP 3: Select Advanced Settings.
STEP 4: Select the Monitor tab and change the Colors drop-down menu to read True Color (32bit).
SCI Room Unit
Power Supply
SCI Intercom
Module
Audio
DO G DI G Out In
Video In

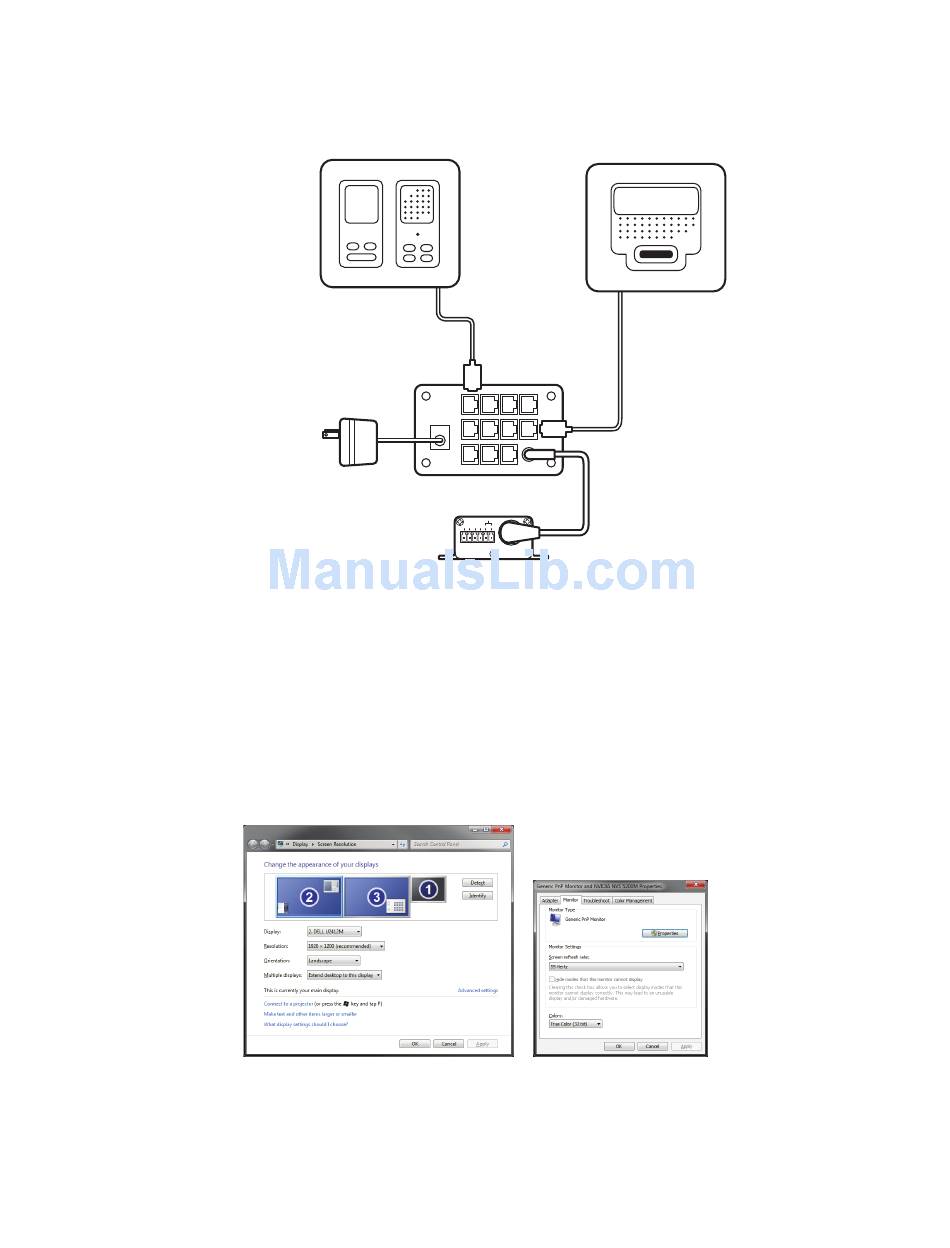

Fig. 4 Standard Setup
Fig. 5 Monitor Settings
2
SCI Video
Door Unit
BNC to
RCA Cable
