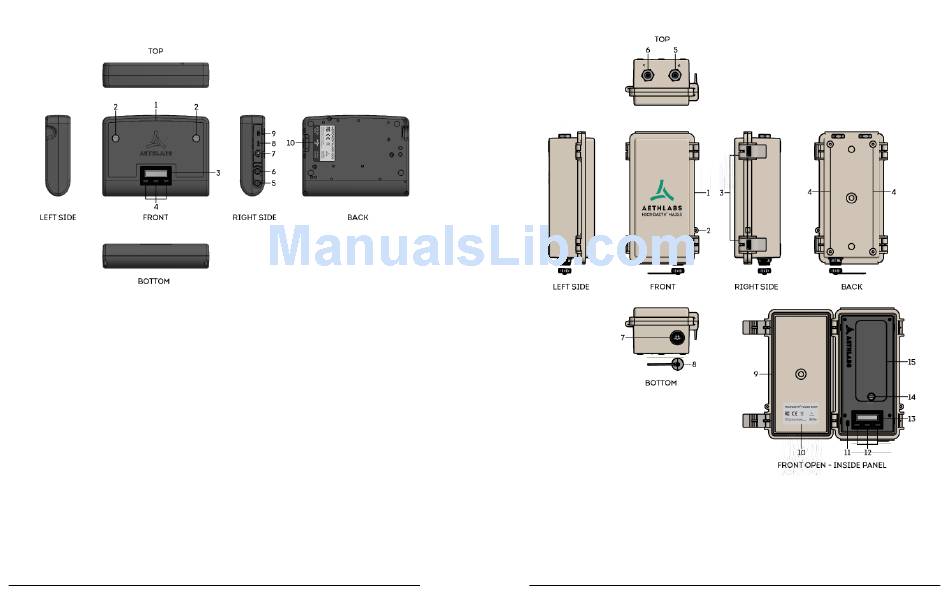

1.3.2. MA300
1. Filter tape cartridge door
2. Flat head screws (2) in filter tape cartridge door
3. User interface screen
4. User interface buttons (3)
5. Inlet port
6. Outlet port
7. DC Barrel jack port
8. USB mini-B port
9. 4-pin 3.3V TTL serial port
10. Serial number label
8 microAeth MA Series MA200, MA300, MA350 Operating Manual
®
1.3.3. MA350
1. Enclosure door
2. Enclosure door padlock loop
3. Enclosure latches (2)
4. Wall mounting kit bosses (4)
5. Inlet port
6. Outlet port
7. Sealing circular connector for DC power in, 3.3V TTL serial comms
8. Cap for sealing circular connector
9. Enclosure door gasket
10. Serial number label
11. USB mini-B port
12. User interface buttons (3)
13. User interface screen
14. Flat head screw (1) in filter tape cartridge door
15. Filter tape cartridge door
