Assembly instructions
HEATKILLER® GPU-X³ 5970
The unique design of the HEATKILLER® GPU-X³ 5970 guarantees outstanding performance. A cooling
performance in the range of current high-end CPU coolers, a flat design as well as top quality materials
distinguish the new GPU-X³ series.
The bottom plate consists of pure copper. The cooling structure of the GPU is extremely fine-tuned and offers a
higher performance than most CPU coolers. The thin base ensures even more performance.
Dimensions (LxBxH)
Weight
Material (bottom/cover)
Connections
Temperature-resistant up to
Compatible with
Note: You will find coloured assembly instructions in Pdf format in the service area of our homepage.
( www.watercool.de )
Attention: The Watercool company assumes no liability for any damages caused to hardware. If uncertain
hire a specialist to carry out the modification, or use our modification service.
By disassembling the original cooler you may cause the manufacturer´s warranty to become void, if
uncertain contact the manufacturer of the Graphic card.

Preparation of the Graphic card

Remove the original cooler element as well as all remnants of Heat-conductive pads.

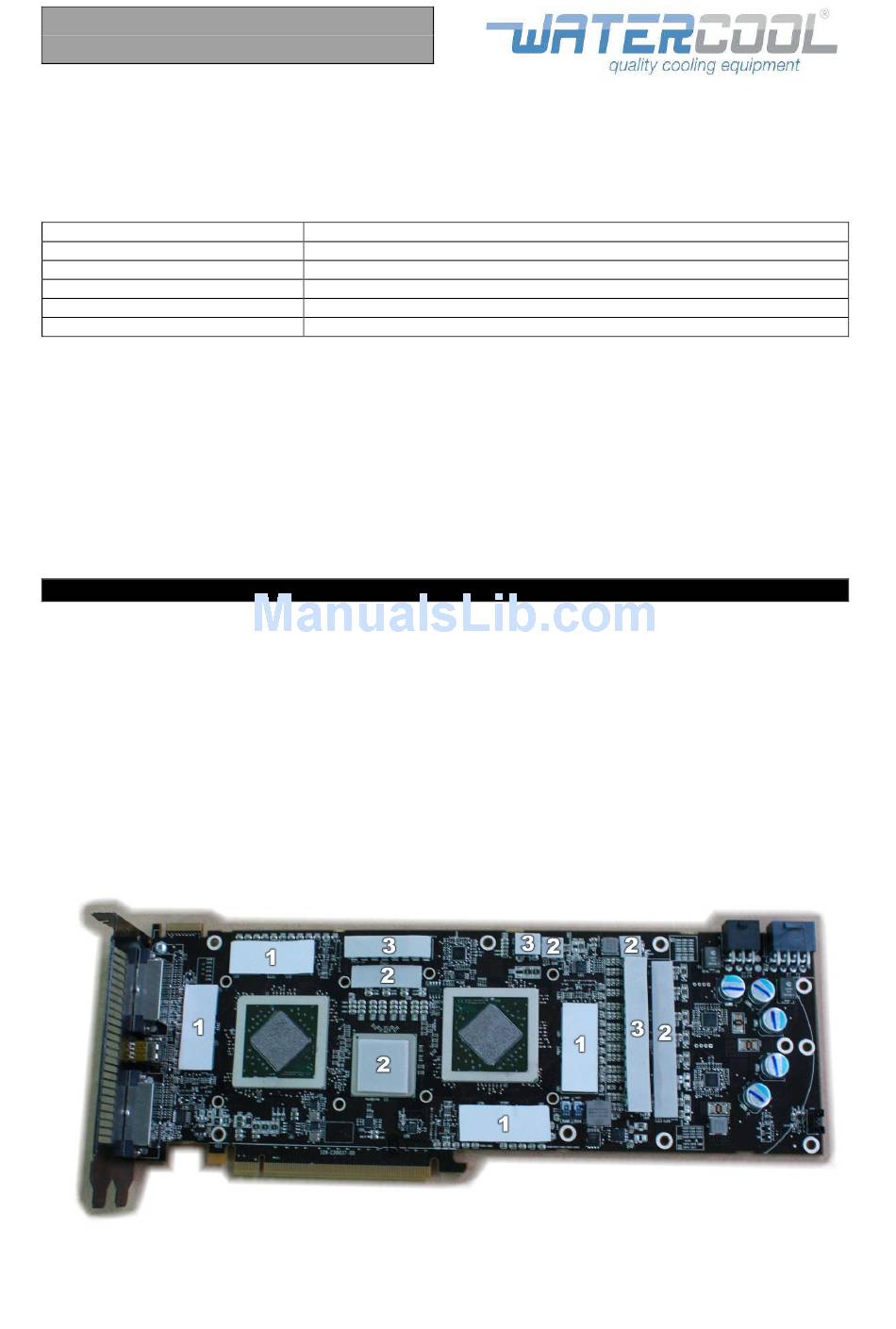

The pre-cut Pads are now, as shown in the diagram to be applied to the Graphic card.In general a protective
plastic film is applied to both sides of the pads, these must be removed prior to assembly.
The assembly package is numbered accordingly. Pay attention to apply the correct Pads to the components.
No.1 – Heat-conductive pad 0,25mm high
No.2 – Heat-conductive pad 0,50mm high
No.3 – Heat-conductive pad 0,75mm high
Instead of the Heat-conductive pad a non conductive thermal compound can be used, we recommends however
the use of the enclosed Pads.
The GPU area should be spread evenly with a thermal compound.
212,0 x 117,5 x 9,5mm
850g
CU / VA
G ¼ Zoll
80° C
ATI 5970 (reference design)
