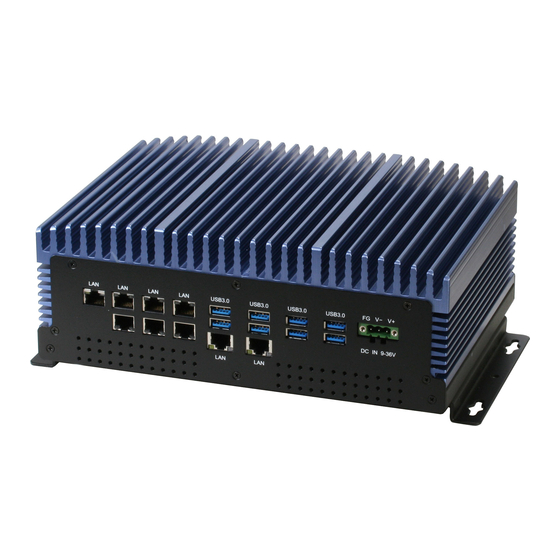

Aaeon BOXER-6640M User Manual

Fanless embedded box pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
BOXER-6640M
Fanless Embedded Box PC
User's Manual 2
nd
Ed
Last Updated: October 18, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BOXER-6640M and is the answer not in the manual?

Questions and answers

Related Manuals for Aaeon BOXER-6640M

Summary of Contents for Aaeon BOXER-6640M

  • Page 1 BOXER-6640M Fanless Embedded Box PC User’s Manual 2 Last Updated: October 18, 2017...
  • Page 2 AAEON assumes no liabilities resulting from errors or omissions in this document, or from the use of the information contained herein. AAEON reserves the right to make changes in the product design without notice to its users.
  • Page 3 Acknowledgement All other products’ name or trademarks are properties of their respective owners. Microsoft Windows ® is a registered trademark of Microsoft Corp.  Intel , Platium , Celeron , and Xeon are registered trademarks of Intel ® ® ® ®...
  • Page 4 Packing List Before setting up your product, please make sure the following items have been shipped: Item Quantity BOXER-6640M  Wallmount bracket  Screw Package  Thermal Pad  Phoenix power connector  Product DVD with User’s Manual (in pdf) and drivers ...
  • Page 5 (if any), its specifications, dimensions, jumper/connector settings/definitions, and driver installation instructions (if any), to facilitate users in setting up their product. Users may refer to the AAEON.com for the latest version of this document. Preface...
  • Page 6 Safety Precautions Please read the following safety instructions carefully. It is advised that you keep this manual for future references All cautions and warnings on the device should be noted. Make sure the power source matches the power rating of the device. Position the power cord so that people cannot step on it.
  • Page 7 Do NOT disassemble the motherboard so as not to damage the system or void your warranty. If the thermal pad had been damaged, please contact AAEON's salesperson to purchase a new one. Do NOT use those of other brands. The Hex Cylinder Coppers on the front panel are not removable.
  • Page 8 FCC Statement This device complies with Part 15 FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received including interference that may cause undesired operation. Caution: There is a danger of explosion if the battery is incorrectly replaced.
  • Page 9 China RoHS Requirements (CN) 产品中有毒有害物质或元素名称及含量 AAEON Embedded Box PC/ Industrial System 有毒有害物质或元素 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) 印刷电路板 ○ ○ ○ ○ ○ ○ 及其电子组件 外部信号 ○ ○ ○ ○ ○ ○...
  • Page 10 China RoHS Requirement (EN) Poisonous or Hazardous Substances or Elements in Products AAEON Embedded Box PC/ Industrial System Poisonous or Hazardous Substances or Elements Hexavalent Polybrominated Polybrominated Component Lead Mercury Cadmium Chromium Biphenyls Diphenyl Ethers (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) PCB &...

  • Page 11: Table Of Contents

    Table of Contents Chapter 1 - Product Specifications ..................1 Specifications ......................2 Chapter 2 – Hardware Information ..................5 Dimensions ......................6 2.1.1 I/O Location ..................... 9 Jumpers and Connectors ..................10 List of Jumpers ......................11 2.3.1 Setting Jumpers ...................... 11 List of Connectors ....................
  • Page 12 Setup Submenu: Main ..................29 Setup Submenu: Advanced ................30 3.4.1 Advanced: CPU Configuration ................31 3.4.2 Advanced: Trusted Computing ................32 3.4.3 Advanced: SATA Configuration ................33 3.4.4 Advanced: PCH-FW Configuration ..............34 3.4.5 Advanced: SIO Configuration ................36 3.4.5.1 SIO Configuration: Serial Port Configuration ..........

  • Page 13: Chapter 1 - Product Specifications

    Chapter 1 Chapter 1 - Product Specifications...

  • Page 14: Specifications

    Specifications System 7th Generation Intel® Core™ Processor family, TDP Processor  35W: Intel® Core™ i7-7700T, 2.9 GHz Intel® Core™ i5-7500T, 2.8 GHz Intel® Core™ i3-7101TE, 3.4 GHz Intel® Pentium® G4560T, 2.9 GHz 6th Generation Intel® Core™ Processor family, TDP 35W: Intel®...
  • Page 15 USB 2.0 x 2 2-Pin Remote Power On/Off Connector Remote I/O  Power LED x 1 LED Indicator  Hard Disk Active LED x 1 Full-size Mini-Card x 2 Expansion Slot  SIM Slot x 1 (for PCIE1) 7th Generation Intel® Core™ Processor family: OS Support ...
  • Page 16 Gross Weight  5.9 kg (13.0 lb) Net Weight  4.5 kg (8.8 lb) Environmental Ambient with Airflow Operating Temperature  -20°C ~ 50°C (according to IEC68-2-14 with 0.5 m/s AirFlow ; with industrial devices) Storage Temperature -45°C ~ 70°C (-49°F ~ 185°F) ...

  • Page 17: Chapter 2 - Hardware Information

    Chapter 2 Chapter 2 – Hardware Information...

  • Page 18: Dimensions

    Dimensions Chapter 2 – Hardware Information...
  • Page 19 Chapter 2 – Hardware Information...
  • Page 20 Chapter 2 – Hardware Information...

  • Page 21: I/O Location

    2.1.1 I/O Location Chapter 2 – Hardware Information...

  • Page 22: Jumpers And Connectors

    Jumpers and Connectors Chapter 2 – Hardware Information...

  • Page 23: List Of Jumpers

    List of Jumpers Please refer to the table below for all of the system’s jumpers that you can configure for your application. Label Function JP19 AT/ATX mode select JP24 Clear CMOS 2.3.1 Setting Jumpers You configure your card to match the needs of your application by setting jumpers. A jumper is the simplest kind of electric switch.

  • Page 24: List Of Connectors

    List of Connectors Please refer to the table below for all of the system’s connectors that you can configure for your application Label Function CRT port DC-IN HDMI1connector HDMI2 connector SPI ROM connector CN14 Dual stack USB (3.0/2.0) + LAN CN15 Dual stack USB (3.0/2.0) + LAN CN20...
  • Page 25 PCIE1 Minicard connector PCIE2 Minicard connector SIM1 SIM card connector Chapter 2 – Hardware Information...

  • Page 26: Clear Cmos (Jp24)

    2.4.1 Clear CMOS (JP24) Normal (Default) Clear CMOS Function Normal (Default) Clear CMOS 2.4.2 Auto Power Button (JP19) Disable Enable (Default) Function ATX (Default) Chapter 2 – Hardware Information...

  • Page 27: Pcie1/ Pcie2) Mini Card Connector With On Board Sim

    2.4.3 (PCIE1/ PCIE2) Mini Card Connector With on board SIM Signal Signal PCIE_WAKE# +V3.3A +1.5V PCIE_CLK_REQ# UIM_PWR UIM_DATA PCIE_REF_CLK- UIM_CLK PCIE_REF_CLK+ UIM_RST UIM_VPP W_DISABLE# PCIE_RST# PCIE_RX- +V3.3A PCIE_RX+ +1.5V SMB_CLK PCIE_TX- PCIE_TX- SMB_DATA PCIE_TX+ USB_D- USB_D+ +V3.3A Chapter 2 – Hardware Information...

  • Page 28: Sata1) Sata Port

    Signal Signal +V3.3A +1.5V +V3.3A 2.4.4 (SATA1) SATA Port Signal Signal SATA_TX+ DIFF SATA_TX- DIFF SATA_RX- DIFF SATA_RX+ DIFF Chapter 2 – Hardware Information...

  • Page 29: Pwr1) Sata Pwr Port

    2.4.5 (PWR1) SATA PWR Port Pin Name Level +12V 2.4.6 LAN + USB 3.0 (CN14/ CN15/ CN16) Signal Signal MDI0+ MDI0- Chapter 2 – Hardware Information...

  • Page 30: Vga Port

    Signal Signal MDI1+ MDI2+ MDI2- MDI1- MDI3+ MDI3- VBUS_1 VBUS_2 (A)D- (B)D- (A)D+ (B)D+ (A)SSRX- (B)SSRX- (A)SSRX+ (B)SSRX+ (A)SSTX- (B)SSTX- (A)SSTX+ (B)SSTX+ 2.4.7 VGA port Signal Signal Green Blue VGA_VCC DDC_DATA VGA_HSYNC VGA_VSYNC Chapter 2 – Hardware Information...

  • Page 31: Dc-In (Cn2)

    Signal Signal DDC_CLK 2.4.8 DC-IN (CN2) Signal Signal PWR_IN 2.4.9 HDMI port (CN3/ CN4) Signal Signal HDMI_DATA2_P HDMI_DATA2_N HDMI_DATA1_P HDMI_DATA1_N HDMI_DATA0_P HDMI_DATA0_N HDMI_CLK_P HDMI_CLK_N HDMI_SCL HDMI_SDA HDMI_PWR HDMI_HDP Chapter 2 – Hardware Information...

  • Page 32: Remote Switch Connector(Cn20)

    2.4.10 Remote switch connector(CN20) Pin Name Pin Name PANSWH# Chapter 2 – Hardware Information...

  • Page 33: Com Port (Cn30)

    2.4.11 COM Port (CN30) RS-232 RS422 RS-485 DATA- DATA+ Chapter 2 – Hardware Information...

  • Page 34: Cpu Installation

    CPU Installation Step 1: Turn off the system, unplug the power cord and make sure the system is off. Step 2: Have Intel KabyLake FCLGA1151 Processor (Max. TDP 35W) ready. Step 3: Install the CPU into the socket and place the thermal pad onto it. Chapter 2 –...

  • Page 35: Ddr4 Memory Module Installation

    DDR4 Memory Module Installation Turn off the system, unplug the power cord to make sure the system is powered  off. Step 1: Remove the screws as instructed below and remove the heatsink. Chapter 2 – Hardware Information...
  • Page 36 Step 2: Place the thermal pads onto the RAM modules as instructed below. Chapter 2 – Hardware Information...

  • Page 37: Sata Drive Installation

    2.5” SATA Drive Installation Turn off the system, unplug the power cord to make sure the system is powered off. Use the HDD screws provided to assemble 2.5” SATA drive with the HDD Bracket. Chapter 2 – Hardware Information...

  • Page 38: Chapter 3 - Ami Bios Setup

    Chapter 3 Chapter 3 - AMI BIOS Setup...

  • Page 39: System Test And Initialization

    System Test and Initialization The system uses certain routines to perform testing and initialization. If an error, fatal or non-fatal, is encountered, a few short beeps or an error message will be outputted. The board can usually continue the boot up sequence with non-fatal errors. The system configuration verification routines check the current system configuration against the values stored in the CMOS memory.

  • Page 40: Ami Bios Setup

    AMI BIOS Setup The AMI BIOS ROM has a pre-installed Setup program that allows users to modify basic system configurations, which is stored in the battery-backed CMOS RAM and BIOS NVRAM so that the information is retained when the power is turned off. To enter BIOS Setup, press <Del>...

  • Page 41: Setup Submenu: Main

    Setup Submenu: Main Chapter 3 – AMI BIOS Setup...

  • Page 42: Setup Submenu: Advanced

    Setup Submenu: Advanced Chapter 3 – AMI BIOS Setup...

  • Page 43: Advanced: Cpu Configuration

    3.4.1 Advanced: CPU Configuration Options summary: Hyper-Threading Disabled Enabled Optimal Default, Failsafe Default Enabled for Windows XP and Linux (OS optimized for Hyper-Threading Technology) and Disabled for other OS (OS not optimized for Hyper-Threading Technology). When Disabled only one thread per enabled core is enabled. Intel Virtualization Disabled Technology...

  • Page 44: Advanced: Trusted Computing

    3.4.2 Advanced: Trusted Computing Options summary: Security Device Enable Optimal Default, Failsafe Default Support Disable Enable or Disable SATA BIOS support for security device. O.S. will not show Security Device. TCG EFI protocol and INT1A interface will not be available. Chapter 3 –...

  • Page 45: Advanced: Sata Configuration

    3.4.3 Advanced: SATA Configuration Options summary: SATA Controller(s) Enabled Optimal Default, Failsafe Default Disabled Enable or Disable SATA Device. SATA Mode IDE Mode Selection AHCI Mode Optimal Default, Failsafe Default Determines how SATA controller(s) operate. SATA Port Enabled Optimal Default, Failsafe Default Disabled Enable or Disable SATA Port.

  • Page 46: Advanced: Pch-Fw Configuration

    3.4.4 Advanced: PCH-FW Configuration Chapter 3 – AMI BIOS Setup...
  • Page 47 Options summary: ME FW Image Re-Flash Enabled Disabled Optimal Default, Failsafe Default Enable or Disable ME FW Image Re-Flash function. Chapter 3 – AMI BIOS Setup...

  • Page 48: Advanced: Sio Configuration

    3.4.5 Advanced: SIO Configuration Chapter 3 – AMI BIOS Setup...

  • Page 49: Sio Configuration: Serial Port Configuration

    3.4.5.1 SIO Configuration: Serial Port Configuration Options summary: Use This Disabled Device Enabled Optimal Default, Failsafe Default Enable or Disable this Logical Device. Possible: Use Automatic Settings Optimal Default, Failsafe Default IO=2F8; IRQ=3; IO=3F8; IRQ=4; Allows user to change Device's Resource settings. New settings will be reflected on This Setup Page after System restarts.

  • Page 50: Advanced: Hardware Monitor

    3.4.6 Advanced: Hardware Monitor Chapter 3 – AMI BIOS Setup...

  • Page 51: Advanced: Usb Configuration

    3.4.7 Advanced: USB Configuration Options summary: Legacy USB Support Enabled Optimal Default, Failsafe Default Disabled Auto Enables Legacy USB support. AUTO option disables legacy support if no USB devices are connected. DISABLE option will keep USB devices available only for EFI applications. Chapter 3 –...

  • Page 52: Advanced: Power Management

    3.4.8 Advanced: Power Management Options summary: Power Mode ATX Type Optimal Default, Failsafe Default AT Type Select power supply mode. Restore AC Power Last State Optimal Default, Failsafe Default Loss Power On Power Off Select power state when power is re-applied after a power failure. RTC wake system Disabled Optimal Default, Failsafe Default...

  • Page 53: Setup Submenu: Chipset

    Setup submenu: Chipset Chapter 3 – AMI BIOS Setup...

  • Page 54: Chipset: System Agent (Sa) Configuration

    3.5.1 Chipset: System Agent (SA) Configuration Chapter 3 – AMI BIOS Setup...

  • Page 55: System Agent (Sa) Configuration: Graphics Configuration

    3.5.1.1 System Agent (SA) Configuration: Graphics Configuration Options summary: Primary Display Auto Optimal Default, Failsafe Default IGFX Select which of IGFX/PEG/PCI Graphics device should be Primary Display Or select SG for switchable Gfx. Primary IGFX Boot VBIOS default Optimal Default, Failsafe Default Display HDMI 1 HDMI 2...

  • Page 56: Chipset: Pch-Io Configuration

    3.5.2 Chipset: PCH-IO Configuration Options summary: HD Audio Disabled Enabled Auto Optimal Default, Failsafe Default Control Detection of the HD-Audio device. Disabled = HDA will be unconditionally disabled Enabled = HDA will be unconditionally enabled Auto = HDA will be enabled if present, disabled otherwise. Mini-Card 1 Gen Auto Optimal Default, Failsafe Default...

  • Page 57: Setup Submenu: Security

    Setup submenu: Security Change User/Administrator Password You can set a User Password once an Administrator Password is set. The password will be required during boot up, or when the user enters the Setup utility. Please Note that a User Password does not provide access to many of the features in the Setup utility. Select the password you wish to set, press Enter to open a dialog box to enter your password (you can enter no more than six letters or numbers).

  • Page 58: Setup Submenu: Boot

    Setup submenu: Boot Options summary: Quiet Boot Disabled Enabled Optimal Default, Failsafe Default Enables or disables Quiet Boot option. Launch PXE ROM Disabled Optimal Default, Failsafe Default Enabled Controls the execution of UEFI and Legacy PXE ROM. Chapter 3 – AMI BIOS Setup...

  • Page 59: Setup Submenu: Save & Exit

    Setup submenu: Save & Exit Chapter 3 – AMI BIOS Setup...

  • Page 60: Chapter 4 - Drivers Installation

    Chapter 4 Chapter 4 – Drivers Installation...

  • Page 61: Product Cd/Dvd

    Product CD/DVD The BOXER-6640M comes with a product DVD that contains all the drivers and utilities you need to setup your product. Insert the DVD and follow the steps in the autorun program to install the drivers. In case the program does not start, follow the sequence below to install the drivers.
  • Page 62 Step 4 – Install Audio Driver Open the Step4 - Audio folder and select your OS followed by the .exe file in the folder Follow the instructions Drivers will be installed automatically Step 5 – Install USB3.0 Driver Open the Step5 – USB3.0 folder and select your OS Open the .exe file in the folder Follow the instructions Drivers will be installed automatically...

  • Page 63: Appendix A - Watchdog Timer Programming

    Appendix A Appendix A - Watchdog Timer Programming...

  • Page 64: Watchdog Timer Initial Program

    Watchdog Timer Initial Program Table 1 : SuperIO relative register table Default Value Note SIO MB PnP Mode Index Register Index 0x2E(Note1) 0x2E or 0x4E SIO MB PnP Mode Data Register Data 0x2F(Note2) 0x2F or 0x4F Table 2 : Watchdog relative register table Register BitNum Value...
  • Page 65 ************************************************************************************ // SuperIO relative definition (Please reference to Table 1) #define byte SIOIndex //This parameter is represented from Note1 #define byte SIOData //This parameter is represented from Note2 #define void IOWriteByte(byte IOPort, byte Value); #define byte IOReadByte(byte IOPort); // Watch Dog relative definition (Please reference to Table 2) #define byte TimerLDN //This parameter is represented from Note3 #define byte TimerReg //This parameter is represented from Note4 #define byte TimerVal // This parameter is represented from Note24...
  • Page 66 ********************************************************************************* VOID Main(){ // Procedure : AaeonWDTConfig // (byte)Timer : Time of WDT timer.(0x00~0xFF) // (boolean)Unit : Select time unit(0: second, 1: minute). AaeonWDTConfig(); // Procedure : AaeonWDTEnable // This procudure will enable the WDT counting. AaeonWDTEnable(); ********************************************************************************* Appendix A – Watchdog Timer Programming...
  • Page 67 ********************************************************************************* // Procedure : AaeonWDTEnable VOID AaeonWDTEnable (){ WDTEnableDisable(EnableLDN, EnableReg, EnableBit, 1); // Procedure : AaeonWDTConfig VOID AaeonWDTConfig (){ // Disable WDT counting WDTEnableDisable(EnableLDN, EnableReg, EnableBit, 0); // Clear Watchdog Timeout Status WDTClearTimeoutStatus(); // WDT relative parameter setting WDTParameterSetting(); VOID WDTEnableDisable(byte LDN, byte Register, byte BitNum, byte Value){ SIOBitSet(LDN, Register, BitNum, Value);...
  • Page 68 ********************************************************************************* VOID SIOEnterMBPnPMode(){ IOWriteByte(SIOIndex, 0x87); IOWriteByte(SIOIndex, 0x87); VOID SIOExitMBPnPMode(){ IOWriteByte(SIOIndex, 0xAA); VOID SIOSelectLDN(byte LDN){ IOWriteByte(SIOIndex, 0x07); // SIO LDN Register Offset = 0x07 IOWriteByte(SIOData, LDN); VOID SIOBitSet(byte LDN, byte Register, byte BitNum, byte Value){ Byte TmpValue; SIOEnterMBPnPMode(); SIOSelectLDN(byte LDN); IOWriteByte(SIOIndex, Register); TmpValue = IOReadByte(SIOData);...

  • Page 69: Appendix B - I/O Information

    Appendix B Appendix B - I/O Information...

  • Page 70: I/O Address Map

    I/O Address Map Appendix B – I/O Information...
  • Page 71 Appendix B – I/O Information...

  • Page 72: Memory Address Map

    Memory Address Map Appendix B – I/O Information...
  • Page 73 Appendix B – I/O Information...

  • Page 74: Irq Mapping Chart

    IRQ Mapping Chart Appendix B – I/O Information...
