4. Commissioning the JUNG KNX Sonos Gateway
After you have set up your Sonos system, confi gure the KNX Sonos Gateway. Commissioning is explained in the following pages.
4.1 Confi guring the JUNG KNX Sonos Gateway with the Engineering Tool Software (ETS)

Connect the gateway with the KNX bus and then connect it to the IP network using Ethernet (LAN).

Obtain an IP address automatically from the router or allocate a fi xed IP address yourself.

Starten ETS and create a new project or open an existing one. Import the required KNX devices and call the KNX Sonos Gateway.

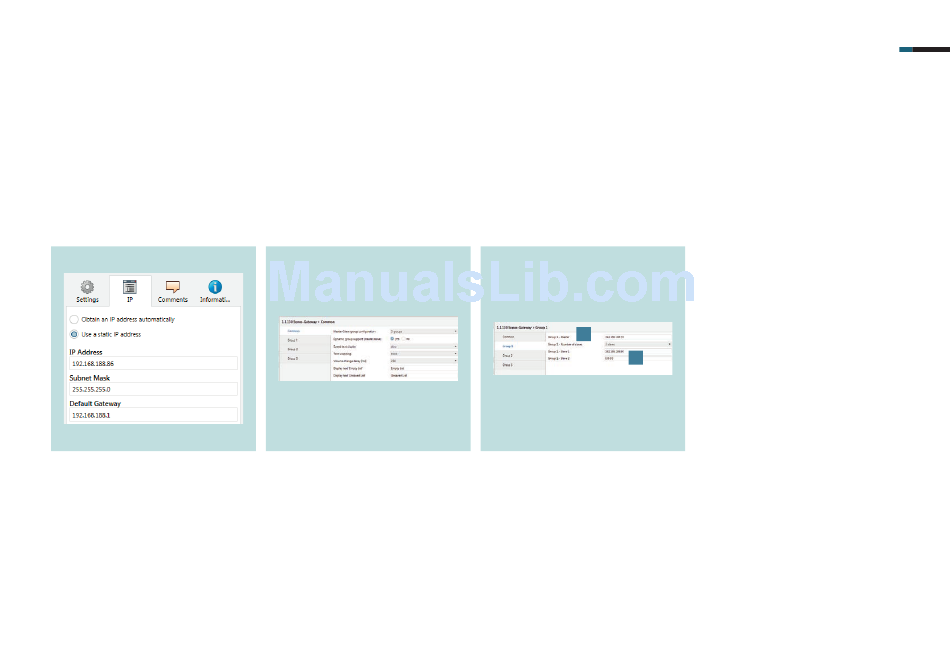

1. Enter the allocated IP address in the
KNX Sonos Gateway and the appro-
priate subnet mask and standard
gateway.
2. In the Parameters tab, specify the
number of groups required (Sonos
devices) under Common.
1
2
3. Defi ne a master for each group or for
each room. Enter the IP address of the
desired Sonos device in the Group X
– Master [1] row.
4. In the Group X – number of Slaves
enter the desired number of slave
devices. In the same way as with the
Master device, then enter the
IP addresses of the slave devices in the
respective Group X – Slaves row [2].
