Standard blinds insert

Advertisement

LB management
Standard blinds insert
Standard blinds insert
Art. no.: 1730JE
Operating instructions
1

Safety instructions

Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Always disconnect before carrying out work on the device or load. In
so doing, take all the circuit breakers into account, which support dangerous voltages to the
device and or load.
Danger of electric shock. Do not mount the device on unearthed, electrically conductive sub-
strates or let it come into contact with them.
Risk of injury. Use the device only for controlling Venetian blind and roller shutter motors or
awnings. Do not use it to switch other loads.
For parallel connection of several motors to an output it is essential to observe the correspond-
ing instructions of the manufacturers, and to use a cut-off relay if necessary. The motors may be
destroyed.
Use only venetian blind motors with mechanical or electronic limit switches. Check the limit
switches for correct adjustment. Observe the specifications of the motor manufacturers. Device
can be damaged.
Danger of electric shock. Damaged covers may no longer be operated. Disconnect the device
immediately.
These instructions are an integral part of the product, and must remain with the end customer.
2

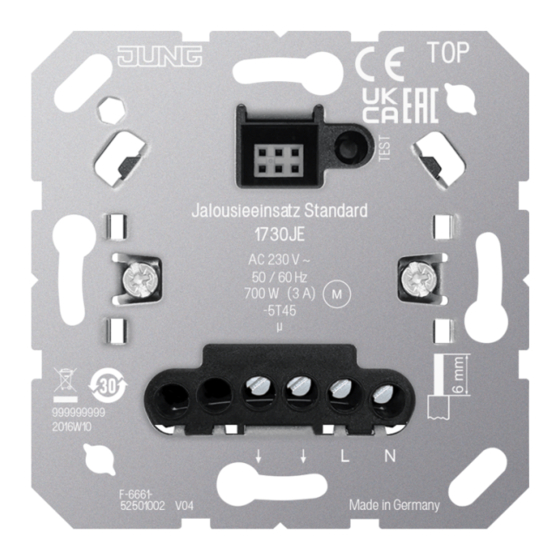

Device components

(1)
Venetian blind insert
(2)
Frame
(3)
Cover
(4)
Terminals
(5)
Button TEST
82595723
J0082595723
Figure 1: Device components
1 / 4
28.01.2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1730JE and is the answer not in the manual?

Questions and answers

Summary of Contents for Jung 1730JE

  • Page 1 LB management Standard blinds insert Standard blinds insert Art. no.: 1730JE Operating instructions Safety instructions Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully.
  • Page 2 LB management Standard blinds insert Intended use – Controlling electrically driven blinds, rolling shutters and awnings – Automatic time controller using the cover – Operation only with suitable cover from LB management – Mounting in appliance box according to DIN 49073 Product characteristics –...
  • Page 3 LB management Standard blinds insert Connecting and mounting venetian blind insert Figure 2: Connection of control Figure 3: Terminal-specific cable cross-section: ■ Connect venetian blind control according to connection diagram (Figure 2). Note clamp- able cable cross-sections (Figure 3). ■ Install Venetian blind control in appliance box, terminals must be at the bottom. Recom- mendation: Use deep appliance box.
  • Page 4 Degree of soiling Measured surge voltage 4000 V Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
