Jung Smart Visu Server Quick Start Manual page 21

1. Introduction
Outstanding sound thanks to the KNX
Sonos Gateway:
With the KNX Sonos Gateway you can
conveniently control your Sonos
system.
Simply start playing your music using
the JUNG KNX push-button modules or
set the sound level comfortably with
the JUNG KNX rotary sensor. Thanks to
the JUNG Smart Visu Server, in addition
you can easily visualise and operate
your system.
These instructions explain the
individual steps commissioning and
using it on the basis of an example.

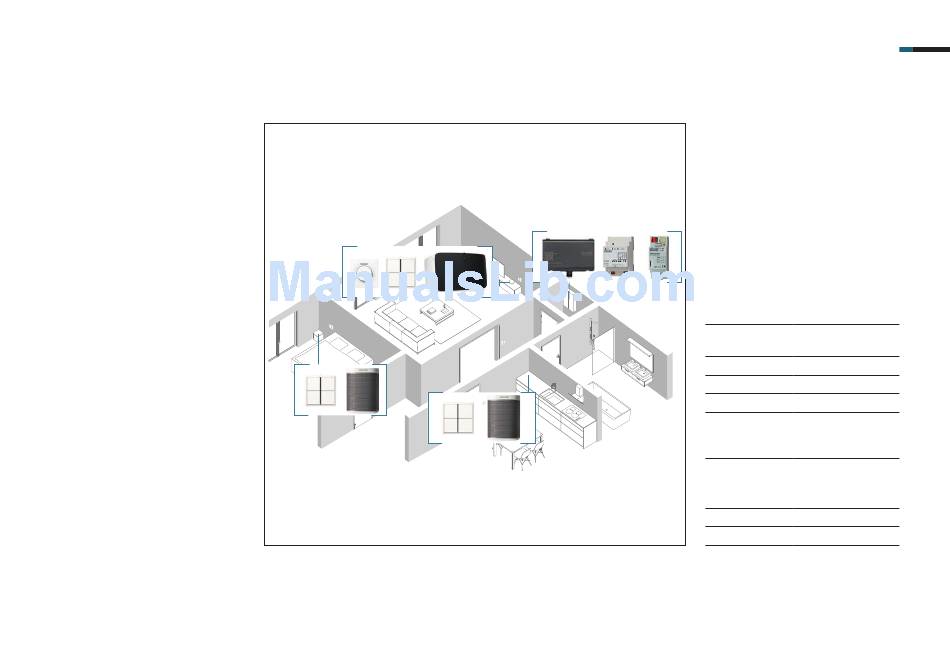

SMART VISU SERVER + SONOS 2
COMPONENTS REFERENCE QUAN-
JUNG NO TITY
KNX Sonos MR-SONOS-
1
Gateway REG
Smart Visu Server SV Server 1
KNX IP interface IPS 200 REG 1
KNX rotary sensor DS 4092 TS 1
KNX Universal
push-button mo- 4194 TSM 3
dule, 4-gang
COMPONENTS REFERENCE QUAN-
SONOS NO TITY
Sonos Play: 5 – 1
Sonos Play: 1 – 2
