PRECISION DIGITAL DART PD602 User Manual

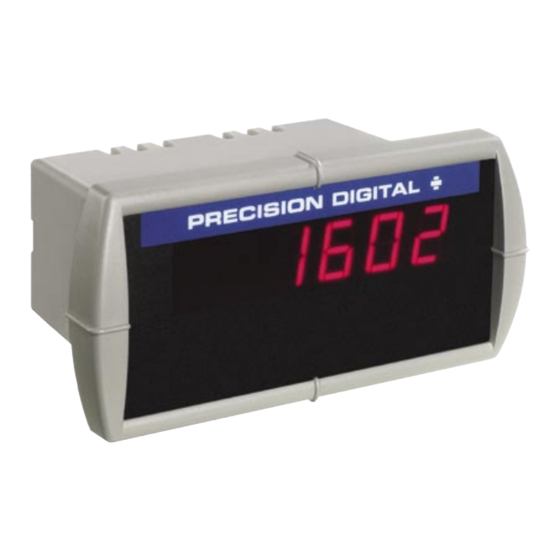

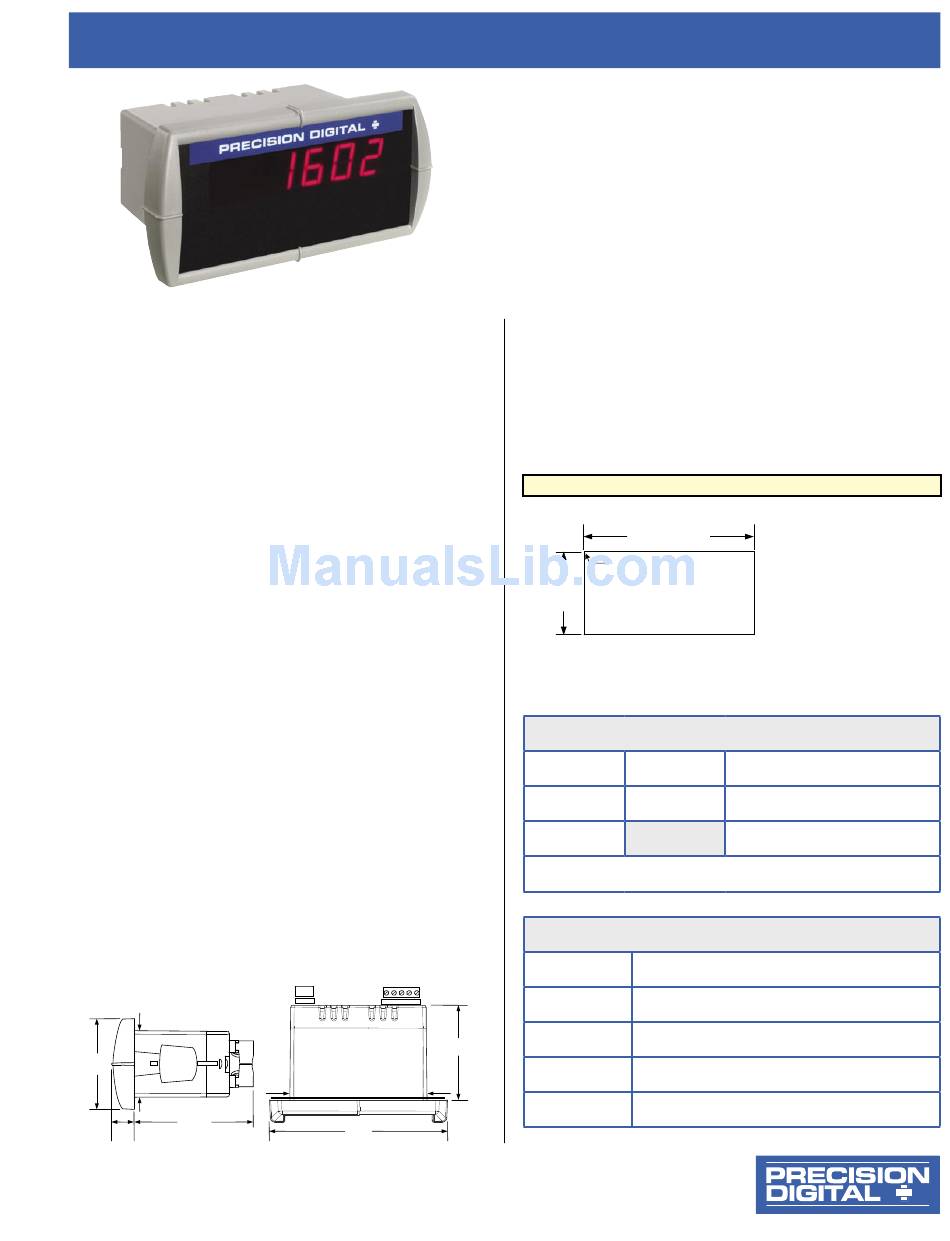

DART MODEL PD602 LOW-COST PROCESS METER

SPECIFICATIONS

Except where noted all specifications apply to operation at +25°C.
General
Inputs: Field selectable: 4-20 mA, 0-5 V, 1-5 V, 0-10 V
Display: 0.56" (14.2 mm) red LED, 3½ digits (±1999)
Accuracy: ±0.05% FS ±1 count
Calibration Range: Low input (e.g. 4 mA): -500 to 500
High input (e.g. 20 mA): 20 to 2000 above low input display.
Decimal Point: Jumper selectable up to three decimal places
Front Panel: NEMA 4X, IP65; panel gasket provided
Input Impedance: Voltage ranges: greater than 200 kΩ;
Current range: 10-60 Ω, varies with resettable fuse impedance
Input Overload: Protected by automatically resettable fuse
Display Update Rate: 2.5/second
Overrange: Displays 1
Underrange: Displays -1
Temperature Drift: 100 PPM/°C
Recalibration: Recommended at least every 12 months
Power Options: 85-265 VAC, 50/60 Hz, 90-265 VDC, 8 W max or 12-
36 VDC, 12-24 VAC, 6 W max.
Transmitter Supply: Isolated 24 VDC ±10% @ 200 mA max
Required Fuse: UL Recognized, 5 A max, slow-blow; up to 6 meters
may share one fuse.
Normal Mode Rejection: 62 dB at 50/60 Hz
Common Mode Rejection: 120 dB at 50/60 Hz
Isolation: 4 kV input-to-power line; 500 V input-to-24 VDC supply
Operating Temperature: 0 to 65°C
Storage Temperature: -40 to 85°C
Relative Humidity: 0 to 90% non-condensing
Connections: Removable screw terminals accept 12 to 26 AWG
Enclosure: 1/8 DIN, high impact plastic, UL 94V-0, color: gray
Weight: 5.0 oz (142 g)
Warranty: 1 year parts & labor
Extended Warranty: 1 or 2 years, refer to Price List for details.
MOUNTING DIMENSIONS
1.76"
(45mm)
2.45"
(62mm)
3.2"
0.59"
(15mm) (81mm)
PRECISION DIGITAL CORPORATION
3.61"
(92mm)
4.68"
(119mm)
Features & Benefits
• 4-20 mA, 0-5 V, 1-5 V, 0-10 V inputs
• NEMA 4X front panel with protective overlay
• Calibrate from the front panel
• Easy to set up and calibrate
• Universal power supply
• 12-36 VDC power option
• 24 VDC @ 200 mA supply option
Panel Mounting Instructions
1. Remove the two mounting brackets provided with the meter (back-off
the two screws so that there is ¼" (6.4 mm) or less through the bracket.
Slide the bracket toward the front of the case and remove).
2. Insert meter into the panel cutout.
3. Install mounting brackets and tighten the screws against the panel.
To achieve a proper seal, tighten the mounting bracket screws evenly
until meter is snug to the panel along its short side.
Square Corners to 0.060"
(1.5mm) Max Radius
1.772"
B
(45mm)

ORDERING INFORMATION

85-265 VAC**
Model
PD602-6R0-0*
PD602-6R0-1*
*Quick Shipment Program product, shipped within 2 working days.
**Meters may be powered from AC or DC, see Specifications for details.
Setup, Calibration & Labels
Model
PDN-CAL
PDN-CERTCAL
2.50"
(64mm)
PDN-CERTCAL2 Certificate of Calibration with Data
PDLXXXX
DO NOT OVER TIGHTEN.
A
3.622" (92mm)
Panel Cutout
to DIN 43700
Dart Model PD602
12-36 VDC**
Options Installed
Model
PD602-7R0-0 None
24 VDC Transmitter Supply
Description
2-Point Input Calibration
Certificate of Calibration
Engraved Plastic Labels
www.predig.com
Tolerances:
A: +0.032 (+0.8mm)
-0.000 (-0.0mm)
B: +0.024 (+0.6mm)
-0.000 (-0.0mm)
