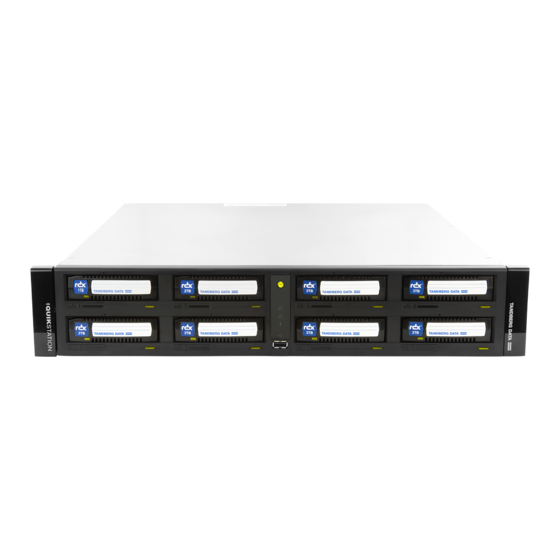

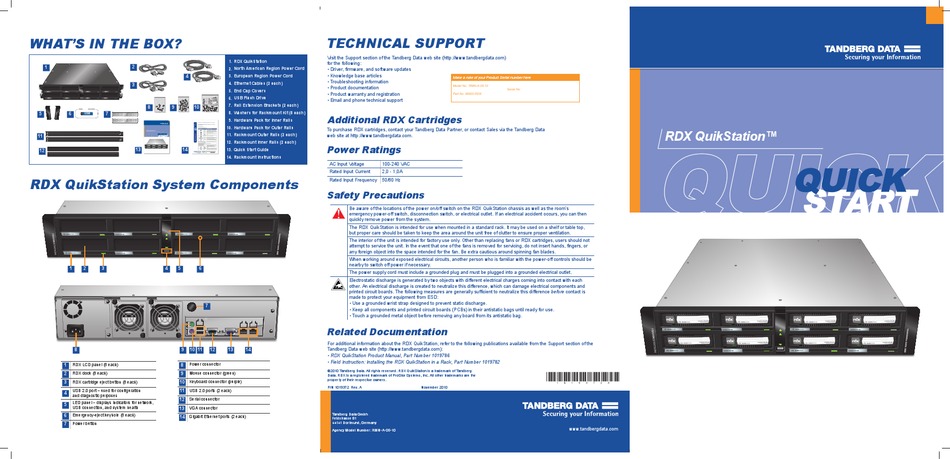

Tandberg Data RDX QuikStation Quick Start

WHAT'S IN THE BOX?
2
1
4
3
8 9 10
5 7
6
USB
11
13 14
12
RDX QuikStation System Components
1 2 3 4 5 6
7
8 9 10 11
1 RDX LCD panel (8 each) 8 Power connector
9 Mouse connector (green)
2 RDX dock (8 each)
3 3 RDX cartridge eject button (8 each) 10 Keyboard connector (purple)
11
USB 2.0 port – used for configuration USB 2.0 ports (2 each)
4
and diagnostic purposes
12 Serial connector
LED panel – displays indicators for network,
5
USB connection, and system health 13 VGA connector
6 Emergency-eject keyhole (8 each)
14 Gigabit Ethernet ports (2 each)
7 Power button
TECHNICAL SUPPORT
Visit the Support section of the Tandberg Data web site (http://www.tandbergdata.com)
1. RDX QuikStation
for the following:
2. North American Region Power Cord • Driver, firmware, and software updates
• Knowledge base articles
3. European Region Power Cord
• Troubleshooting information
4. Ethernet Cables (2 each)
• Product documentation
5. End Cap Covers
• Product warranty and registration
6. USB Flash Drive
• Email and phone technical support
7. Rail Extension Brackets (2 each)
8. Washers for Rackmount Kit (8 each)
Additional RDX Cartridges
9. Hardware Pack for Inner Rails
10. Hardware Pack for Outer Rails
To purchase RDX cartridges, contact your Tandberg Data Partner, or contact Sales via the Tandberg Data
11. Rackmount Outer Rails (2 each) web site at http://www.tandbergdata.com.
12. Rackmount Inner Rails (2 each)
Power Ratings
13. Quick Start Guide
14. Rackmount Instructions
AC Input Voltage 100-240 VAC
Rated Input Current 2,0 - 1,0A
Rated Input Frequency 50/60 Hz
Safety Precautions
Be aware of the locations of the power on/off switch on the RDX QuikStation chassis as well as the room's
emergency power-off switch, disconnection switch, or electrical outlet. If an electrical accident occurs, you can then
quickly remove power from the system.
The RDX QuikStation is intended for use when mounted in a standard rack. It may be used on a shelf or table top,
but proper care should be taken to keep the area around the unit free of clutter to ensure proper ventilation.
The interior of the unit is intended for factory use only. Other than replacing fans or RDX cartridges, users should not
attempt to service the unit. In the event that one of the fans is removed for servicing, do not insert hands, fingers, or
any foreign object into the space intended for the fan. Be extra cautious around spinning fan blades.
When working around exposed electrical circuits, another person who is familiar with the power-off controls should be
nearby to switch off power if necessary.
The power supply cord must include a grounded plug and must be plugged into a grounded electrical outlet.
Electrostatic discharge is generated by two objects with different electrical charges coming into contact with each
other. An electrical discharge is created to neutralize this difference, which can damage electrical components and
printed circuit boards. The following measures are generally sufficient to neutralize this difference before contact is
made to protect your equipment from ESD:
• Use a grounded wrist strap designed to prevent static discharge.
• Keep all components and printed circuit boards (PCBs) in their antistatic bags until ready for use.
• Touch a grounded metal object before removing any board from its antistatic bag.
Related Documentation
For additional information about the RDX QuikStation, refer to the following publications available from the Support section of the
12 13 14 Tandberg Data web site (http://www.tandbergdata.com):
• RDX QuikStation Product Manual, Part Number 1019786
• Field Instruction: Installing the RDX QuikStation in a Rack, Part Number 1019782
©2010 Tandberg Data. All rights reserved. RDX QuikStation is a trademark of Tandberg
Data. RDX is a registered trademark of ProStor Systems, Inc. All other trademarks are the
property of their respective owners.
P/N 1019372 Rev. A
Tandberg Data Gmbh
Feldstrasse 81
44141 Dortmund, Germany
Agency Model Number: RMN-A-05-10
Make a note of your Product Serial number here
Model No. RMN-A-05-10
Serial No.
Part No. 98900-RDX
#1019372A#
November 2010
www.tandbergdata.com
RDX QuikStation™
