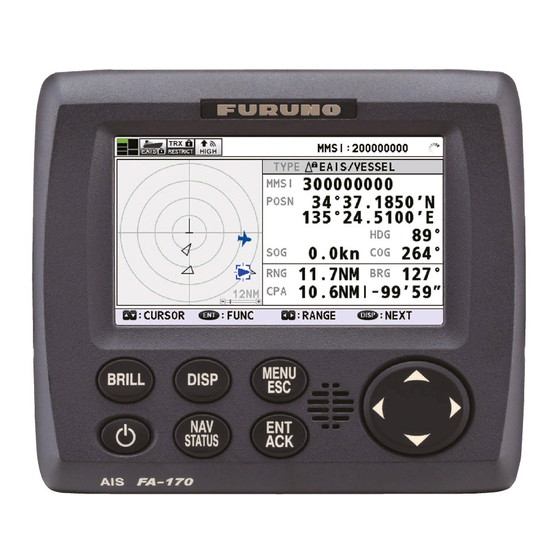

█ Description of controls
No. Key name
• Displays brilliance setting pop-up window.
1 BRILL
• Switches between Day and Night modes.
2 DISP • Cycles through display screens.
• Switches between Day and Night display
modes when brilliance pop-up window is open.
• Closes all active menu windows and returns to
the last displayed screen.
3 MENU/ • Opens the menu.
ESC • Goes back one layer in the menu.
• Closes the settings screen, when displayed,
and returns to the menu.
• Short press to turn the unit on.
Power key
4
• Long press to turn the unit off.
Display screens
Press the DISP key to cycle through display screens.
: CURSOR
ALERT
LIST : 6
TIME [UTC]
30/ JAN 17:20
29/ JAN 17:50
28/ JAN 08:20
27/ JAN 12:35
26/ JAN 03:45
25/ JAN 09:36
ID:001
: CURSOR
CLASS A AIS (U-AIS TRANSPONDER)
Model
Decription
Plotter display
TYPE A CLASS A
201502130
B MMSI
NAME { NO NAME }
34º 31.1234´N
POSN
135º 24.5678´E
130º
HDG
10.0kn
135º
SOG COG
3 .0NM 225º
RNG BRG
: FUNC : RANGE : NEXT
ENT DISP
Alert list
LOG : 20
ALERT 01 /06
TX MALFUNCTION
ANTENNA VSWR EXCEEDS LIMIT
RX CHANNEL 1 MALFUNCTION
RX CHANNEL 2 MALFUNCTION
GENERAL FAILURE
ACTIVE AIS-SART
: TX MALFUNCTION
: TAB : NEXT
DISP
FA-170
Operator's Guide
1 2 3
4 5 6
No. Key name
NAV STATUS
5
ENT/ACK
6
7 Cursorpad
DANGEROUS LIST
NAME/MMSI/TYPE
A
SAMPLE SHIP 002 TARGET LIST
B
SAMPLE SHIP 002
NAME/MMSI/TYPE
SAMPLE SHIP 003
A
SAMPLE SHIP
SAMPLE SHIP 004
B
B
SAMPLE SHIP
SAMPLE SHIP 005
SAMPLE SHIP
SAMPLE SHIP 006
SAR
B SAMPLE SHIP
SAMPLE SHIP 007
SAMPLE SHIP
A
SAMPLE SHIP 008
SAR SAMPLE SHIP
: CURSOR
ENT
SAMPLE SHIP
A
SAMPLE SHIP
: CURSOR
OWN INFORMATION
SENSOR
12/NOV/2014
UTC
34 º 44 .5000 ´N
POSN
135 º 21.3000 ´E
108 . 7 º/min (
ROT
10 .0 kn
SOG
7
Decription
• Opens the [NAV STATUS] settings window.
• Selects the currently highlighted item on the
menu.
• Confirms adjusted settings.
• Acknowledges alerts.
• Move the selection cursor.
• Plotter display: ◄ or ► changes the display
range.
• [ TARGET LIST ] display: ◄ or ► changes
the displayed page. ▲ or ▼ selects a target.
• [ OWN INFORMATION ] display: ◄ or ►
changes the displayed tab.
• [ ALERT display ] : ◄ or ► changes the
displayed tab. ▲ or ▼ selects an alert.
Target list
9-16 (108)
12:32:01
RNG[NM] BRG[ ° ] AGE[ ' ]
3 .3 080.0 0
81-88(334)
12:32:01
3 .4 090.0 0
RNG[NM] BRG[ º ] AGE[ ' ]
3 .5 100.0 0
002 3 .3 080.0 0
3 .6 110.0
002 3 .4 090.0 0
3 .7 120.0 0
003 3 .5 100.0 0
3 .8 130.0 0
004 3 .6 110.0
3 .9 140.0 0
005 3 .7 120.0 0
3 .1 150.0 0
006 3 .8 130.0 0
: FUNC : PAGE : NEXT
DISP
007 3 .9 140.0 0
008 3 .1 150.0 0
: FUNC : PAGE : NEXT
ENT DISP
Own (ship) information
VOYAGE IDENTITY SCALE
17 :20 :00 EXTERNAL
DGPS
2
HIGH
PA
UNUSED
RAIM
) 130º
HDG
135 .0º
COG
: TAB : NEXT
DISP
This guide provides the basic
operating procedures for this
equipment. For detailed informa-
tion, see the Operator's Manual.
The brand and product names
mentioned in this guide are
trademarks, registered trademarks
or service marks of their respective
holders.
（or Dangerous list）
