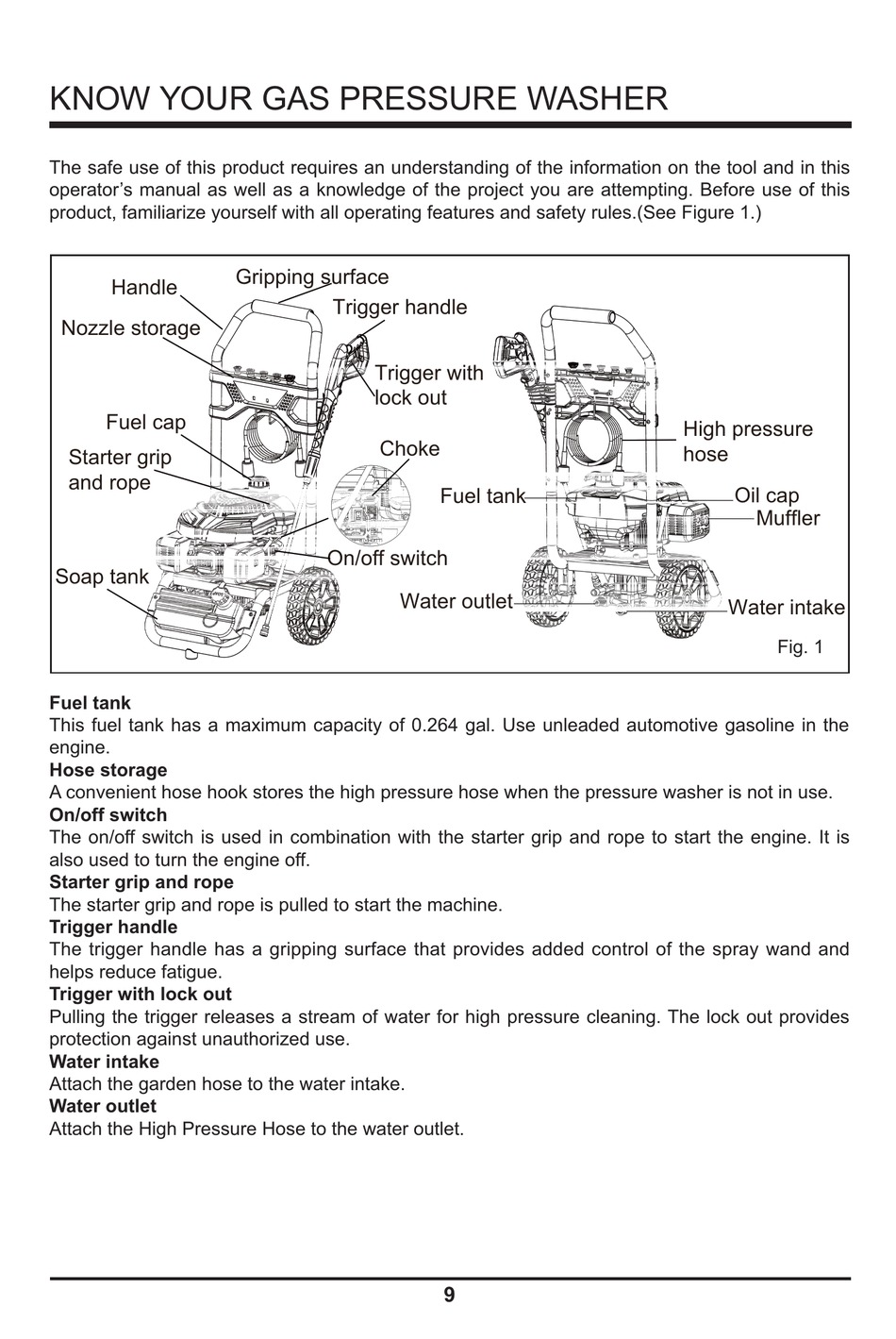

KNOW YOUR GAS PRESSURE WASHER
The safe use of this product requires an understanding of the information on the tool and in this
operator's manual as well as a knowledge of the project you are attempting. Before use of this
SURGXFW IDPLOLDUL]H \RXUVHOI ZLWK DOO RSHUDWLQJ IHDWXUHV DQG VDIHW\ UXOHV 6HH )LJXUH
Handle
1R]]OH VWRUDJH
Fuel cap
Starter grip
and rope
Soap tank
)XHO WDQN
This fuel tank has a maximum capacity of 0.264 gal. Use unleaded automotive gasoline in the
engine.
+RVH VWRUDJH
A convenient hose hook stores the high pressure hose when the pressure washer is not in use.
2QRII VZLWFK
The on/off switch is used in combination with the starter grip and rope to start the engine. It is
also used to turn the engine off.
6WDUWHU JULS DQG URSH
The starter grip and rope is pulled to start the machine.
7ULJJHU KDQGOH
The trigger handle has a gripping surface that provides added control of the spray wand and
helps reduce fatigue.
7ULJJHU ZLWK ORFN RXW
Pulling the trigger releases a stream of water for high pressure cleaning. The lock out provides
SURWHFWLRQ DJDLQVW XQDXWKRUL]HG XVH
:DWHU LQWDNH
Attach the garden hose to the water intake.
:DWHU RXWOHW
Attach the High Pressure Hose to the water outlet.
Gripping surface
Trigger handle
Trigger with
lock out
Choke
On/off switch
Water outlet
Fuel tank
9
High pressure
hose
Oil cap
Muffler
Water intake
Fig. 1
