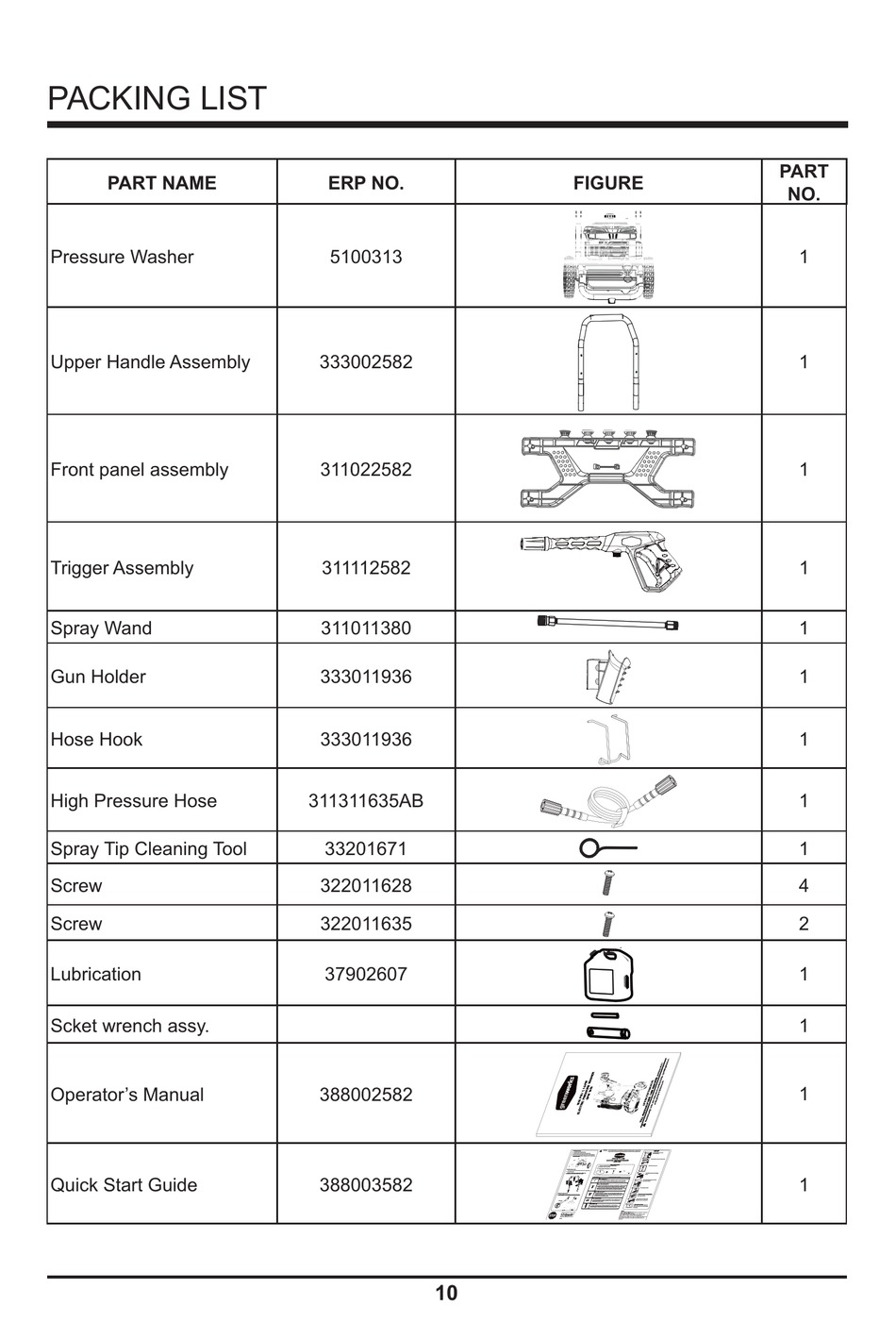

PACKING LIST

PART NAME
Pressure Washer
Upper Handle Assembly
Front panel assembly
Trigger Assembly
Spray Wand
Gun Holder
Hose Hook
High Pressure Hose
Spray Tip Cleaning Tool
Screw
Screw
Lubrication
Scket wrench assy.
Operator's Manual
Quick Start Guide
ERP NO.
5100313
333002582
311022582
311112582
311011380
333011936
333011936
311311635AB
33201671
322011628
322011635
37902607
388002582
388003582
10
FIGURE
Installing the wheels WARNING: This Quick Start Guide is not a substitute for reading the operator's manual. To reduce the risk Set-up
of injury or death, user must read and understand operator's manual before using this product.
Insert the axle through the wheel. 1 Connect garden hose to pressure
Slide the washer over the axle pass the pin hole. washer water intake.
Insert the axle and wheel through the frame. Slide the washer
over the axle and insert the pin through the hole to firmly fasten
the wheel assembly.
1800 PSI / 1.1 GPM 2
Assemble pressure washer gun to spray wand.
Wheel ELECTRIC PRESSURE WASHER
GPW 1800
USING DETERGENT
Put pressure washer detergent in detergent tank. 3 Connect desired pressure tip.
Axle Washer Pin Install blue or black soap nozzle.
Squeeze trigger and wait approx.1 minute for soap.
Installing the gun holder
Line up the screw sleeves with the holes in the upper handle
and push through.
4
Insert the screw and turn clockwise with a Phillips head Insert high pressure hose into trigger
screwdriver (not included) until the screw is tight. handle.
SPRAY TIP SPRAY TIP APPLICATION
Red - Stream tip (0° )
5 Connect the high pressure hose to the
O 0 The red 0 degree tip provides a straight line of spray. It provides the highest water outlet connector.
amount of pressure. It is best used for removing hard, stuck-on grime or dirt.
Green - Narrow fan tip (25° )
The green pressure washer tip provides high versatility with its 25 degree angle tip.
Referred to as the washing tip, because it provides adequate pressure to remove
25 O dirt from surfaces, but is designed to not damage many surfaces. This pressure 6 Turn on water at outlet.
washer tip is designed for "sweeping" foliage or debris given its wide angle. This tip
is versatile due to its wide area of cleaning and strong pressure application.
White - Wide fan tip (40° )
Installing the upper handle The white 40 degree tip, referred to as the "fan" tip creates the widest area of 7 Run water hose for 30 seconds with the
Push and hold the push-pin buttons on the sides of the upper cleaning with relatively low pressure. This pressure washer tip is best used for light
handle assembly (1) as you slide the handle onto the frame (2). 40 O or delicate cleaning applications. It is recommended for light cleaning on wood motor in OFF position. This helps drain air
decks and other soft or delicate surfaces. from the tank and lines.
(1) 30 S
Black - Soap spray tip
8 Connect power cord to wall outlet
The black soap spray tip, is used for soap application. Soap is applied under low Extension cord not recommended.
Push-pin (2) SOAP pressure high volume for optimum performance. Soap cannot be applied under
high pressure with this machine.
Turbo Nozzle Tip 9
Turn on Pressure Washer
The nozzle rotates in a zero to 15 degree spray pattern in a circular motion to IMPORTANT: Ensure water outlet is On
break down tough dirt and grime. The spray pattern can cover area of 4 to 8 inches before turning power On to avoid damage
wide, depending on a distance between the tip and the surface being cleaned. to the pump.
NOTE:
Missing parts, accessories or need a service center? AUTO ON/OFF SWITCH: This Pressure washer is equipped
with an Auto Start/Stop feature.
Do Not Return to Store To operate: Turn the power switch to the On (I) position.
Call : 1-888-909-6757
Pump will pressurize and shut down immediately.
www.GreenWorksTools.com Once the trigger of the gun is depressed the unit will turn on.
Unit will shut off and be in standby mode when trigger is
Rev:02 released.
