Supero SC827HD-R1400B User Manual

Sc827hd series
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

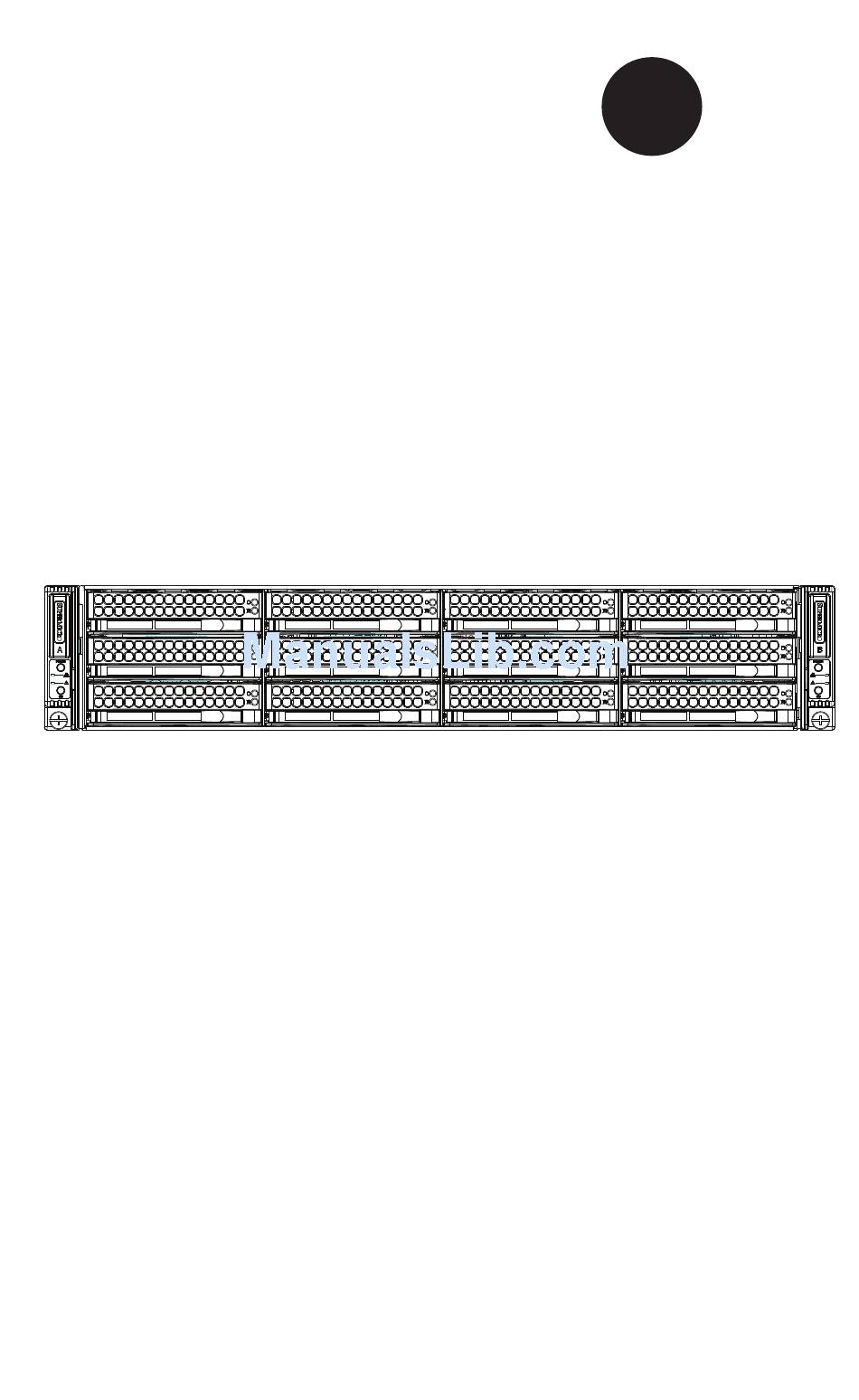

S
UPER
®
SC827HD Chassis Series
SC827HD-R1400B
SC827HD-R1620B
USER'S MANUAL
1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC827HD-R1400B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Supero SC827HD-R1400B

Summary of Contents for Supero SC827HD-R1400B

  • Page 1 UPER ® SC827HD Chassis Series SC827HD-R1400B SC827HD-R1620B USER’S MANUAL...
  • Page 2 SC827HD Chassis Manual The information in this User’s Manual has been carefully reviewed and is believed to be accurate. The vendor assumes no responsibility for any inaccuracies that may be contained in this document, makes no commitment to update or to keep current the information in this manual, or to notify any person or organization of the updates.
  • Page 3 Preface Preface About This Manual This manual is written for professional system integrators and PC technicians. It provides information for the installation and use of the SC827HD 2U chassis. Instal- lation and maintenance should be performed by experienced technicians only. This document lists compatible parts available when this document was published.

  • Page 4: Manual Organization

    SC827HD Chassis Manual Manual Organization Chapter 1 Introduction The first chapter provides a checklist of the main components included with this chassis, and describes the main features of the SC827HD chassis. This chapter also includes contact information. Chapter 2 Warning Statements for AC Systems This chapter lists warnings, precautions, and system safety.
  • Page 5 Preface This section lists compatible cables, power supply specifications, and compatible backplanes. Not all compatible backplanes are listed. Refer to our Web site for the latest compatible backplane information. Appendix A Chassis Cables Appendix B Power Supply Specifications Appendix C SAS-827HD Backplane Specifications...

  • Page 6: Table Of Contents

    SC827HD Chassis Manual Contents Preface About This Manual ..................... iii Manual Organization ..................iv Chapter 1 Introduction Overview ......................1-1 Shipping List ....................1-1 Part Numbers ....................1-1 Contacting Supermicro ..................1-2 Returning Merchandise for Service..............1-3 Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............
  • Page 7 Preface Chapter 5 Chassis Setup and Maintenance Overview ......................5-1 Removing the Power Cord ................5-1 Chassis Cover ....................5-2 Installing and Removing Hard Drives ............. 5-3 Removing and Installing the Backplane ............5-6 Removing the Backplane ................5-6 Installing the Backplane .................. 5-8 Installing the Motherboard ................
  • Page 8 SC827HD Chassis Manual Standard Chassis Installation ................. 6-8 Optional Quick Installation Method ..............6-9 Appendix A Cables, Screws, and other Accessories Chassis Screws ....................A-1 Appendix B SC827HD Power Supply Specifications Appendix C SAS-827HD Backplane Specifications ESD Safety Guidelines ...................C-1 General Safety Guidelines ................C-1 An Important Note to Users ................C-2 Introduction to the SAS-827HD Backplane .............C-2 Front Connectors ....................C-3...

  • Page 9: Chapter 1 Introduction

    Chapter 1: Introduction Chapter 1 Introduction Overview Supermicro's SC827HD chassis is designed to optimize performance per Watt and per dollar with two independent hot-pluggable dual processor computing nodes, efficiently organized into a 2U form factor. Each node provides six 3.5" hard drives for RAID 5 data protection, and is contained in a convenient module to facilitate easy system upgrades, installation and maintenance.

  • Page 10: Contacting Supermicro

    SC827HD Chassis Manual Contacting Supermicro Headquarters Address: Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel:...

  • Page 11: Returning Merchandise For Service

    Chapter 1: Introduction Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required be- fore any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number. When returning to the manufacturer, the RMA number should be prominently displayed on the outside of the shipping carton, and mailed prepaid or hand-carried.
  • Page 12 SC827HD Chassis Manual Notes...

  • Page 13: Chapter 2 Standardized Warning Statements For Ac Systems

    Chapter 2: Warning Statements for AC Systems Chapter 2 Standardized Warning Statements for AC Systems About Standardized Warning Statements The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance.
  • Page 14 SC827HD Chasssis Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 15 Chapter 2: Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬...

  • Page 16: Installation Instructions

    SC827HD Chasssis Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 17: Circuit Breaker

    Chapter 2: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 18: Power Disconnection Warning

    SC827HD Chasssis Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 19 Chapter 2: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 20: Equipment Installation

    SC827HD Chasssis Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 21: Restricted Area

    Chapter 2: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 22: Battery Handling

    SC827HD Chasssis Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬ ‫محظورة‬...
  • Page 23 Chapter 2: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 24: Redundant Power Supplies

    SC827HD Chasssis Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 25: Backplane Voltage

    Chapter 2: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 26: Comply With Local And National Electrical Codes

    SC827HD Chasssis Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 27: Product Disposal

    Chapter 2: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 28: Hot Swap Fan Warning

    SC827HD Chasssis Manual ¡Advertencia! Al deshacerse por completo de este producto debe seguir todas las leyes y reglamentos nacionales. Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent.
  • Page 29 Chapter 2: Warning Statements for AC Systems 警告 當您從機架移除風扇裝置，風扇可能仍在轉動。小心不要將手指、螺絲起子和其他 物品太靠近風扇。 Warnung Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Los ventiladores podran dar vuelta cuando usted quite ell montaje del ventilador del chasis.

  • Page 30: Power Cable And Ac Adapter

    SC827HD Chasssis Manual Power Cable and AC Adapter Warning! When installing the product, use the provided or designated connection cables, power cables and AC adaptors. Using any other cables and adaptors could cause a malfunction or a fire. Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only.
  • Page 31 Chapter 2: Warning Statements for AC Systems Attention Lors de l'installation du produit, utilisez les bables de connection fournis ou désigné. L'utilisation d'autres cables et adaptateurs peut provoquer un dysfonctionnement ou un incendie. Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué...
  • Page 32 SC827HD Chasssis Manual Notes 2-20...

  • Page 33: Chapter 3 Chassis Components

    Chapter 3: Chassis Components Chapter 3 Chassis Components Overview This chapter describes the most common components included with your chassis. Some components listed may not be included or compatible with your particular chassis model. For more information, see the installation instructions detailed later in this manual.

  • Page 34: Unpacking The System

    SC827HD Chassis Manual Power Supply The SC827HD chassis is equipped either: • 1400 Watt high-efficiency 1 + 1 80+ Gold level, redundant power supply • 1620 Watt high-efficiency 94+ Platinum level, redundant power supply In the unlikely event your power supply fails, replacement is simple and can be accomplished without tools.

  • Page 35: Chapter 4 System Interface

    Chapter 4: System Interface Chapter 4 System Interface Overview Several buttons and LEDs indicate the status of the system. There are two control panels, one on each side of the front edges of the chassis, that each monitor the associated computing node. There are also LEDs on the drive carriers the indicate the status of the drive.

  • Page 36: Control Panel Buttons

    SC827HD Chassis Manual Control Panel Buttons There are two push-buttons on each control panel on the front of the chassis. They controll the computing node associated with that control panel. Power: The main power switch applies or removes power to the node from the power supply.

  • Page 37: Drive Carrier Leds

    Chapter 4: System Interface Information LED: Alerts operator of several states, as noted in the table below. Informational LED Status Description An overheat condition has occured. Continuously on and red (This may be caused by cable congestion.) Blinking red (1Hz) Fan failure, check for an inoperative fan.
  • Page 38 SC827HD Chassis Manual Notes...

  • Page 39: Chapter 5 Chassis Setup And Maintenance

    Chapter 5: Chassis Setup and Maintenance Chapter 5 Chassis Setup and Maintenance Overview This chapter covers the steps required to install components and perform mainte- nance on the chassis. The only tool required is a Phillips screwdriver. Note: Review the warnings and precautions listed in the manual before setting up or servicing this chassis.

  • Page 40: Chassis Cover

    SC827HD Chassis Manual Chassis Cover Remove two screws Check Ventilation Openings Figure 5-1. Removing the Chassis Cover Before operating for the first time, remove the protective film covering the top of the chassis to allow for proper ventilation and cooling. Removing the Chassis Cover and Protective Film 1.

  • Page 41: Installing And Removing Hard Drives

    Chapter 5: Chassis Setup and Maintenance Installing and Removing Hard Drives The SC827HD chassis contains two individual motherboards in separate node drawers. Each motherboard node controls a set of six hard drives. If a motherboard node drawer is pulled out of the chassis, the hard drives associated with that node will power down as well.
  • Page 42 SC827HD Chassis Manual Figure 5-3. Removing a Hard Drive Carrier Removing Hard Drive Carriers From the Chassis 1. Press the release button on the drive carrier. This extends the drive bay handle. 2. Use the handle to pull the drive out of the chassis.
  • Page 43 Chapter 5: Chassis Setup and Maintenance The hard drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the drive bays. Only enterprise level hard drives are recommended for use in the SC827HD chassis. Caution: Except for short periods of time while swapping hard drives, do not operate the server with the hard drives bays empty.

  • Page 44: Removing And Installing The Backplane

    SC827HD Chassis Manual Removing and Installing the Backplane The backplane is located behind the hard drives and in front of the front system fans. If it is necessary to remove the backplane, follow the instructions below. Removing the Backplane Removing the Backplane from the Chassis 1.
  • Page 45 Chapter 5: Chassis Setup and Maintenance 7. Loosen the three screws in the spring bar, located on the floor of the chassis, indicated by the arrows below. Figure 5-6. Loosening the Spring Bar Screws in the Floor of the Chassis Figure 5-7.

  • Page 46: Installing The Backplane

    SC827HD Chassis Manual Installing the Backplane Installing the Backplane into the Chassis 1. Ensure that all of the hard drive trays have been removed from the bays in the front of the chassis and that the spring bar has been loosened as directed in the previous section.

  • Page 47: Installing The Motherboard

    Chapter 5: Chassis Setup and Maintenance Installing the Motherboard I/O Shields Figure 5-9. I/O Shield Placement Compatible Motherboards Most Supermicro Twin series motherboards are compatible with the SC827HD chassis. For the most up-to-date information on compatible motherboards and other parts, visit the Supermicro Web site at www.supermicro.com. Hot-swappable motherboards feature different adapter cards, depending upon the motherboard.
  • Page 48 SC827HD Chassis Manual Adapter Card Expander Card Bracket Adapter Card Bracket Figure 5-10. Installing the Motherboard into the Motherboard Node Drawer Installing the Motherboard 1. Review the documentation that came with your motherboard. Become familiar with component placement, requirements, precautions, and cable connec- tions.
  • Page 49 Chapter 5: Chassis Setup and Maintenance 8. Connect the cables between the motherboard, backplane, chassis, front panel, and power supply, as needed. Also, fans may be temporarily removed to allow access to the backplane ports. 9. Replace the expander card bracket and secure the bracket with a screw. 10.

  • Page 50: Installing And Replacing The Adapter Card

    SC827HD Chassis Manual Installing and Replacing the Adapter Card Adapter cards provide hot-swappable functionality to the chassis. Adapter Card Figure 5-11. Adapter Card Installation Removing the Adapter Card 1. Remove the motherboard drawer from the chassis. 2. Disconnect the wiring that connects the adapter card to the motherboard if any is present.

  • Page 51: Expansion Card/Expansion Slot Setup

    Chapter 5: Chassis Setup and Maintenance Expansion Card Slot Setup The SC827HD chassis supports two low-profile PCI slots for each node, for a total of four slots in the chassis. PCI Slot Shields PCI Slot Clips Figure 5-12. I/O Shield Configuration 5-13...

  • Page 52: Installing The Riser Card Onto The Riser Card Bracket

    SC827HD Chassis Manual Figure 5-13. Installing the Riser Card Installing the Riser Card onto the Riser Card Bracket Installing the Riser Card onto the Riser Card Bracket 1. Power down as described in Section 5-2 and lay the chassis on a flat surface. 2.
  • Page 53 Chapter 5: Chassis Setup and Maintenance Expander Card PCI Slot Shield Screw Riser Card Bracket Riser Card Figure 5-14. Installing the Expansion Card Installing Expansion and Riser Cards Installing Expansion and Riser Cards 1. Attach the riser card to the riser card bracket as described in the previous section.

  • Page 54: Installing The Air Shrouds

    SC827HD Chassis Manual Installing the Air Shrouds Air Shrouds Air shrouds concentrate airflow to maximize fan efficiency. The SC827HD chassis requires air shrouds for each motherboard node. Air shrouds vary depending upon the motherboard used. See the illustrations below. Installing an Air Shroud 1.

  • Page 55: Checking The Airflow

    Chapter 5: Chassis Setup and Maintenance 5-10 Checking the Airflow Checking Airflow • Make sure there are no objects to obstruct airflow in and out of the server. In addition, if you are using a front bezel, make sure the bezel's filter is replaced periodically.
  • Page 56 SC827HD Chassis Manual Figure 5-16. System Fan Placement Changing a System Fan 1. If necessary, open the chassis while the power is running to determine which fan has failed. (Never run the server for an extended time without the chassis cover.) 2.

  • Page 57: Power Supply

    Chapter 5: Chassis Setup and Maintenance 5-11 Power Supply Each power supply is auto-switching, which enables it to automatically sense and operate at a 100v to 240v input voltage. An amber light on the power supply indicates the power is off. A green light indicates that it is operating. Power Supply Replacement The SC827HD chassis utilizes two redundant power supplies.
  • Page 58 SC827HD Chassis Manual Changing the Power Supply 1. Unplug the AC power cord from the failed power supply. 2. Push the release tab (on the back of the power supply) as illustrated. 3. Pull the power supply out using the handle provided. 4.

  • Page 59: Chapter 6 Rack Installation

    Chapter 6: Rack Installation Chapter 6 Rack Installation This chapter provides instructions and tips for installing the chassis into a rack. Preparing for Setup Please read this section in its entirety before beginning the installation procedure. Accessories Included in the shipping box: •...

  • Page 60: Adequate Airflow

    SC827HD Chassis Manual Adequate Airflow Equipment should be mounted into a rack so that the amount of airflow required for safe operation is not compromised. Circuit Overloading Avoid overloading the power supply circuitry or any overcurrent protection equip- ment. Use equipment nameplate ratings to calculate your requirements. Reliable Ground A reliable ground must be maintained at all times.

  • Page 61: General Server Precautions

    Chapter 6: Rack Installation General Server Precautions • Review the electrical and general safety precautions that came with the com- ponents you are adding to your chassis. • Determine the placement of each component in the rack. • Install the heaviest server components on the bottom of the rack first, and then work up.

  • Page 62: Rack Mounting Instructions

    SC827HD Chassis Manual Rack Mounting Instructions This section provides information on installing the chassis into a rack unit with the rails provided. There are a variety of rack units on the market, which may mean that the assembly procedure will differ slightly from the instructions provided. You should also refer to the installation instructions that came with the rack unit you are using.

  • Page 63: Locking Tabs

    Chapter 6: Rack Installation Locking Tabs Each inner rail has a locking tab. This tab locks the chassis into place when installed and pushed fully into the rack. These tabs also lock the chassis in place when fully extended from the rack. This prevents the server from coming completely out of the rack when when the chassis is pulled out for servicing.

  • Page 64: Installing The Inner Rails On The Chassis

    SC827HD Chassis Manual Inner Rails Figure 6-3. Installing the Inner Rails Figure 6-4. Inner Rails Installed on the Chassis (The chassis above is an example only. Actual chassis may differ slightly) Installing The Inner Rails on the Chassis Installing the Inner Rails 1.

  • Page 65: Installing The Outer Rails On The Rack

    Chapter 6: Rack Installation L-min=676.00(26.61")(outer rail) 21D01 Figure 6-5. Extending and Releasing the Outer Rails Installing the Outer Rails on the Rack Installing the Outer Rails 1. Press upward on the locking tab at the rear end of the middle rail. 2.

  • Page 66: Standard Chassis Installation

    SC827HD Chassis Manual Ball-Bearing Shuttle Figure 6-6. Installing into a Rack Stability hazard: The rack stabilizing mechanism must be in place, or the rack must be bolted to the floor before you slide the unit out for servicing. Failure to stabilize the rack can cause the rack to tip over. Standard Chassis Installation Installing the Chassis into a Rack 1.

  • Page 67: Optional Quick Installation Method

    Chapter 6: Rack Installation 6. Depress the locking tabs of both sides at the same time and push the chassis all the way into the rear of the rack. 7. If necessary for security purposes, use screws to secure the chassis handles to the front of the rack.
  • Page 68 SC827HD Chassis Manual Notes 6-10...

  • Page 69: Appendix A Cables, Screws, And Other Accessories

    Appendix A: Cables, Screws and Other Accessories Appendix A Cables, Screws, and other Accessories A-1 Chassis Screws The chassis and accessory box includes all of the screws needed to setup your chassis. This section includes descriptions of the most common screws used. Your chassis may not require all of the parts listed.
  • Page 70 SC827HD Chassis Manual Notes...

  • Page 71: Appendix B Sc827Hd Power Supply Specifications

    Appendix B SC827HD Power Supply Specifications This appendix lists power supply specifications for your chassis system. 1400W high-efficiency redundant power supply w/ PMBus SC827HD-R1400B 1400W MFR Part # PWS-1K41P-1R 1100W: 100 - 140V, 50 - 60Hz, 9.5 - 13.5 Amp AC Input 1400W: 180 - 240V, 50 - 60Hz, 7.0 - 9.5 Amp...
  • Page 72 SC827HD Chassis Manual Notes...

  • Page 73: Appendix C Sas-827Hd Backplane Specifications

    Appendix C: Backplane Appendix C SAS-827HD Backplane Specifications To avoid personal injury and property damage, carefully follow all the safety steps listed below when accessing your system or handling the components. C-1 ESD Safety Guidelines Electrostatic Discharge (ESD) can damage electronic com ponents. To prevent dam- age to your system, it is important to handle it very carefully.

  • Page 74: An Important Note To Users

    SC827HD Chassis Guide C-3 An Important Note to Users All images and layouts shown in this user's guide are based upon the latest PCB revision available at the time of publishing. The card you have received may or may not look exactly the same as the graphics shown in this manual. C-4 Introduction to the SAS-827HD Backplane The SAS-827HD backplane has been designed to utilize the most up-to-date tech- nology available, providing your system with reliable, high-quality performance.

  • Page 75: Front Connectors

    Appendix C: Backplane Connectors, Jumpers and LEDs C-5 Front Connectors FAN1 JP57 FAN2 FAN4 JP69 FAN3 SAS827HD JP54 JP56 JP55 REV 1.00 DESIGNED IN USA JP71 UPGRADE#B JP70 C203 UPGRADE#A JP35: OPEN:DEFAULT JP36: JP36 JP35 CLOSE:LED TEST OPEN:DEFAULT CLOSE:ANY POWER BUTTON C201 JPW3 C119...
  • Page 76 SC827HD Chassis Guide 1. Power Supply Connector The 5-pin connector, designated JPI C1 pro- vides power to the SMBUS and power control signals. 2. - 5. Chassis Fan Connectors These connectors, designated FAN1, FAN2, FAN3 and FAN4 supply power to the chassis cooling fans.

  • Page 77: Explanation Of Jumpers

    Appendix C: Backplane FAN1 JP57 FAN4 FAN2 JP69 FAN3 SAS827HD JP54 JP56 JP55 REV 1.00 DESIGNED IN USA JP71 UPGRADE#B JP70 C203 UPGRADE#A JP35: OPEN:DEFAULT JP36: JP36 JP35 CLOSE:LED TEST OPEN:DEFAULT CLOSE:ANY POWER BUTTON C201 JP35 JP36 JPW3 C119 C198 DEBUG JF5-A BAR CODE...

  • Page 78: Front Led Indicator

    SC827HD Chassis Guide Figure C-4. Motherboard Locations In the Chassis C-6 Front LED Indicator D1 HB FAN1 JP57 FAN4 FAN2 JP69 FAN3 SAS827HD JP54 JP56 JP55 REV 1.00 DESIGNED IN USA JP71 UPGRADE#B JP70 C203 UPGRADE#A JP35: OPEN:DEFAULT JP36: CLOSE:LED TEST JP36 JP35 OPEN:DEFAULT...
  • Page 79 Appendix C: Backplane ACT#A5 ACT#B5 ACT#A4 ACT#B4 FAIL#B5 FAIL#A4 FAIL#A5 FAIL#B4 R130 R154 R149 C120 R184 R248 ACT#A2 ACT#A3 ACT#B3 ACT#B2 R147 FAIL#A2 FAIL#A3 FAIL#B3 FAIL#B2 R173 R244 R164 SAS827HD REV 1.00 R101 ACT#B1 ACT#A0 ACT#A1 ACT#B0 FAIL#B1 FAIL#A0 FAIL#A1 FAIL#B0 Figure C-7.

  • Page 80: Sas Ports

    SC827HD Chassis Guide C-8 SAS Ports The SAS-827HD backplane is designed with two separate sections, which support from one to two motherboards independently of each other. The SAS ports are used to connect the SAS drive cables. SAS Port to Motherboard Configurations Number of SAS Port Connect to...
  • Page 81 Appendix C: Backplane Notes...
  • Page 82 SC827HD Chassis Guide Disclaimer (cont.) The products sold by Supermicro are not intended for and will not be used in life sup- port systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency communication devices or other critical systems whose failure to per- form be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
