Using the Flash Trigger

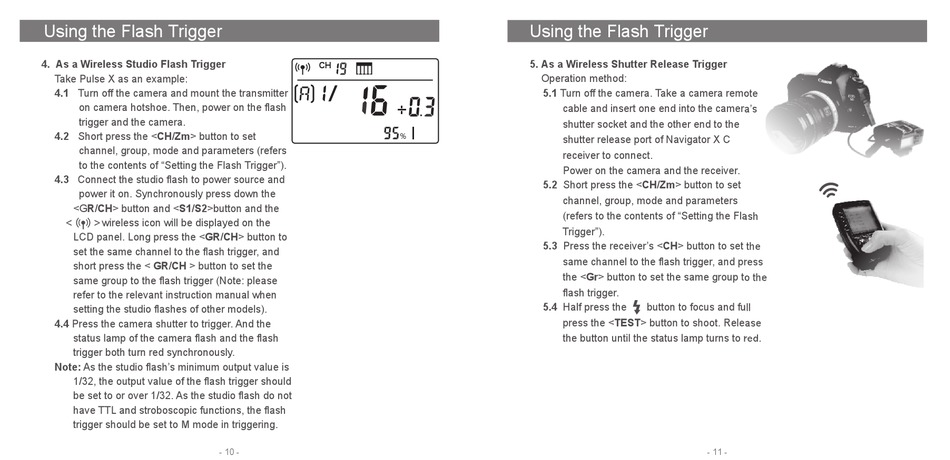

4. As a Wireless Studio Flash Trigger

Take Pulse X as an example:
4.1 Turn off the camera and mount the transmitter
on camera hotshoe. Then, power on the flash
trigger and the camera.
4.2 Short press the <CH/Zm> button to set
channel, group, mode and parameters (refers
to the contents of "Setting the Flash Trigger").
4.3 Connect the studio flash to power source and
power it on. Synchronously press down the
<GR/CH> button and <S1/S2>button and the
< > wireless icon will be displayed on the
LCD panel. Long press the <GR/CH> button to
set the same channel to the flash trigger, and
short press the < GR/CH > button to set the
same group to the flash trigger (Note: please
refer to the relevant instruction manual when
setting the studio flashes of other models).
4.4 Press the camera shutter to trigger. And the
status lamp of the camera flash and the flash
trigger both turn red synchronously.
Note: As the studio flash's minimum output value is
1/32, the output value of the flash trigger should
be set to or over 1/32. As the studio flash do not
have TTL and stroboscopic functions, the flash
trigger should be set to M mode in triggering.
- 10 -
CH
%
Using the Flash Trigger

5. As a Wireless Shutter Release Trigger

Operation method:
5.1 Turn off the camera. Take a camera remote
ake a camera remote
cable and insert one end into the camera's cable and insert one end into the camera's
shutter socket and the other end to the
shutter release port of Navigator X C
receiver to connect.
Power on the camera and the receiver.
5.2 Short press the <CH/Zm> button to set
channel, group, mode and parameters
(refers to the contents of "Setting the Flash (refers to the contents of "Setting the Flash
Trigger").
5.3 Press the receiver's <CH> button to set the
> button to set the
same channel to the flash trigger, and press
the <Gr> button to set the same group to the > button to set the same group to the
flash trigger.
5.4 Half press the Half press the button to focus and full button to focus and full
press the <TEST> button to shoot. Release > button to shoot. Release
the button until the status lamp turns to red. the button until the status lamp turns to red.
