User Manual
HDCP 2.2 and 1.4 compliant with EDID Management
RS-232, IP, IR and Front panel Control with Status LCD Display
Uses Hall Research Genesis™ Control Command Set (GCCS)
CUSTOMER
SUPPORT
INFORMATION
HSM-88-4K
4K 8X8 HDMI Matrix Switch
Supports 4K UHD resolution
Fast-Switch™ Technology
Order toll-free in the U.S. 800-959-6439
FREE technical support: 714-641-6607 or support@hallresearch.com
Hall Research, 1163 Warner Ave. Tustin, CA 92780
www.hallresearch.com
User's Manual
UMA1263 Rev B
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Hall Research Technologies HSM-88-4K
Summary of Contents for Hall Research Technologies HSM-88-4K

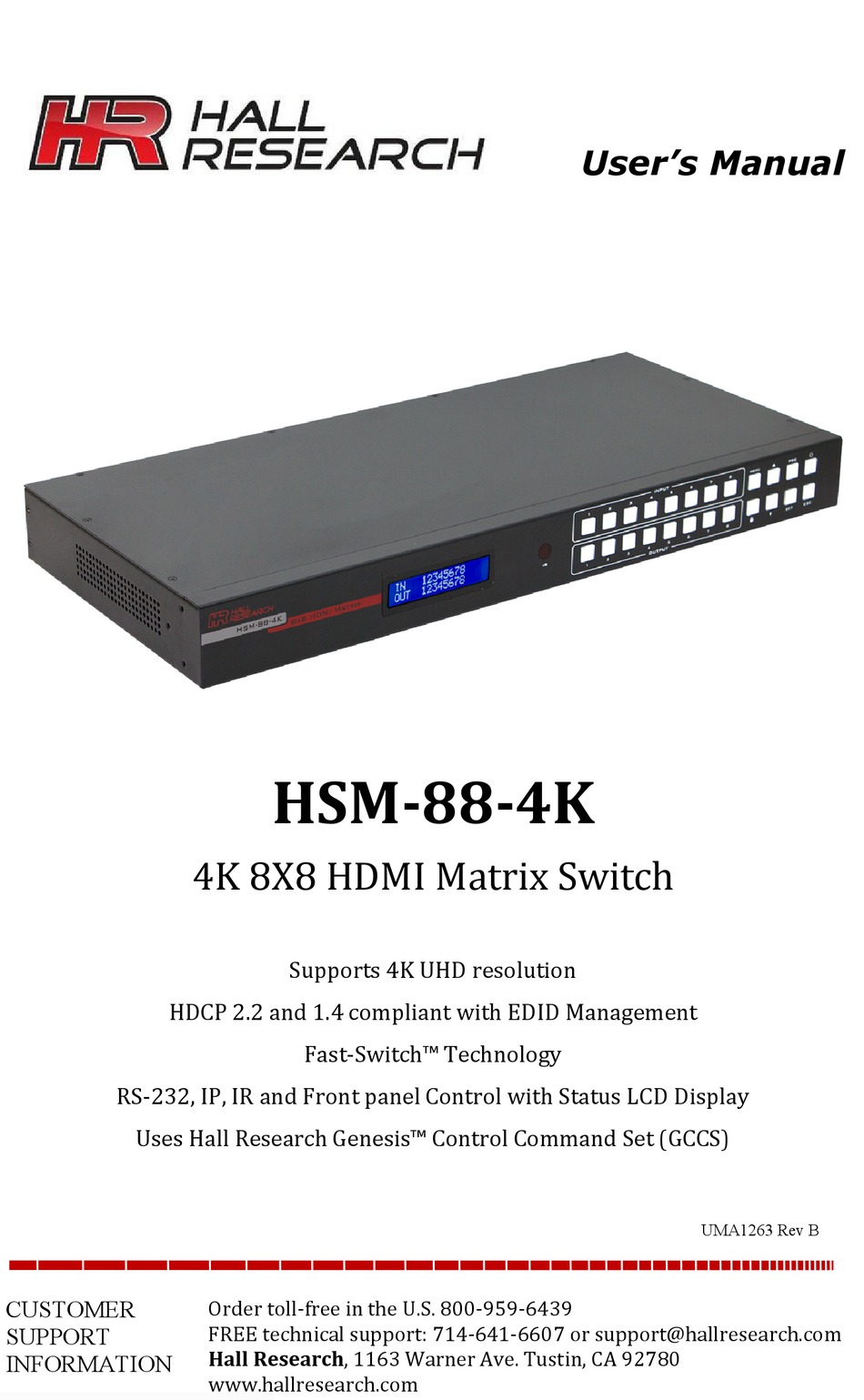

- Page 1 User’s Manual HSM-88-4K 4K 8X8 HDMI Matrix Switch Supports 4K UHD resolution HDCP 2.2 and 1.4 compliant with EDID Management Fast-Switch™ Technology RS-232, IP, IR and Front panel Control with Status LCD Display Uses Hall Research Genesis™ Control Command Set (GCCS) UMA1263 Rev B Order toll-free in the U.S.
-
Page 3: Table Of Contents
4K 8X8 HDMI Matrix Switch Table of Contents 1.1 General .................. 3 1.0 Introduction ............... 3 1.2 Features ................3 2.0 Package Contents ............. 4 3.1 Connection Diagram ............4 3.0 Configuration and Operation ....... 4 3.2 General Operation ............. 5 3.3 Presets (Memorized Routing Patterns) .... - Page 4 HSM-88-4K Hall Research and its logo are trademarks of Hall Research. Any other TRADEMARKS USED IN THIS MANUAL trademarks mentioned in this manual are acknowledged as the property of the trademark owners. This equipment generates, uses, and can radiate radio frequency energy and if...
-
Page 5: General
Hall Research's video matrix switches. The HSM-88-4K is an 8x8 cross-point switch in a compact 1-RU enclosure. It supports HDMI resolutions up to 4K @ 30 Hz 4:4:4 and 4K @ 60 Hz 4:2:0. It also supports HDCP 2.2 and 1.4, 3D, deep-color. -
Page 6: Package Contents
HSM-88-4K 2.0 Package Contents (1) Model HSM-88-4K (1) 12VDC @2.5A Universal Power Supply (1) IR Remote (1) Rack mounting brackets (2 pcs) (1) RS-232 Cable (1) User’s Manual 3.0 Configuration and Operation 3.1 Connection Diagram Typical Connection Diagram © Copyright 2018 Hall Research, Inc. -
Page 7: General Operation
4K 8X8 HDMI Matrix Switch 3.2 General Operation The front panel can be used for the following purposes: 3.2.1 Front Panel Functions View current input/output routings (ties) on LCD Make new ties either starting from input or from output • Recall or Save Preset patterns •... - Page 8 HSM-88-4K The front panel pushbuttons have LEDs built-in. The buttons can be off, on, or blinking. These modes help users control the matrix with ease. Front panel button LED states Easy to understand routing information is displayed on the LCD. On the LCD the 3.2.3 Reading the LCD routing configuration...
- Page 9 4K 8X8 HDMI Matrix Switch To tie an output to an input, perform the following steps: 3.2.6 Making a tie starting from the OUTPUT 1. Press the desired output button. The button for the currently tied input will light up. Note: At this point, you can use the navigation ( ▲...
-
Page 10: Presets (Memorized Routing Patterns)
HSM-88-4K The matrix allows the output to be blanked. You can blank a particular output or 3.2.8 Blanking Outputs you can blank all the outputs that are connected to a specific input. 1. To blank an output, hold the Output button for 3 seconds or until its led starts blinking. - Page 11 4K 8X8 HDMI Matrix Switch 1. To recall a saved preset, press the PRE button. 3.3.2 Recalling Presets 2. Select the desired Preset # by pressing an input button. 3. Press SET to recall the preset. Example: Saving preset #1 from the previous example 1.
-
Page 12: Using The Ir Remote To Route Video
HSM-88-4K The IR Remote included with the Matrix allows simple control 3.4 Using the IR Remote to route video of the matrix. You can use the IR remote to power the matrix on/off and you can use it to make video ties. -
Page 13: Edid Configuration
4K 8X8 HDMI Matrix Switch 4.0 EDID management The HSM-88-4K gives users the flexibility to configure the EDID for each input. The source for the EDID data associated with each input can be from one of 15 standard built-in choices or copied from any of the TVs connected to a particular output. -
Page 14: Compute Edid
HSM-88-4K 1080p 3D Video, 7.1 Audio Index EDID Description 4k*2k@30Hz Video, 2Ch Audio 4k*2k@30Hz Video, 5.1 Audio 4k*2k@30Hz Video, 7.1 Audio 4k*2k@60Hz Video, 2Ch Audio 4k*2k@60Hz Video, 5.1 Audio 4k*2k@60Hz Video, 7.1 Audio When “Compute EDID” mode is selected, the system dynamically generates the 4.2 Compute EDID... -
Page 15: Network Settings
4K 8X8 HDMI Matrix Switch 5.0 Network Settings As shipped from the factory (or after restoring factory defaults), the HSM-88-4K IP address is set for static IP address of 192.168.1.1. To change the IP or to switch to DHCP, you can use either RS-232 or Telnet. - Page 16 HSM-88-4K Connect multiple outputs Response Command Description n= Output [1-8] CVn,m/n,m/n,m CVn,m m= Input [1-8] CVn,m m=x to blank the output. CVn,m Query output routing n= Output [1-8] n= Output [1-8] CVn,? CVn,m m= Input [1-8] m=x means blanked Query input routing...
- Page 17 4K 8X8 HDMI Matrix Switch Lock Front Panel Response Command Description n = 0 Lock OFF Panel Unlock n = 1 Lock ON Panel lock Lock Status Query n = 0 Lock OFF n = 1 Lock ON HOT Plug Query LOW (No Sink) n = Output # [1-8] Read the Hot Plug status of...
-
Page 18: Contacting Hall Research
HSM-88-4K Enable DHCP DHCPn (n=0 or 1) Response Command Description n = 0 (DHCP off) DHCPn n = 1 (DHCP on) DHCP Status Query Firmware Version Query DHCP DHCPn HSM Matrix Status Query FW Version:x.xx FW Version:x.xx CV1,? IP ???.???.???.??? -
Page 19: Specifications
4K 8X8 HDMI Matrix Switch 8.0 Specifications 8xHDMI IN Input Ports 8xHDMI OUT Output Ports HDCP 2.2 and HDCP 1.4 HDCP 480i, 480p, 576i, 576p,720p, 1080i, 1080p 8, 12 or 16 bits per channel (24, 36 or 48 bits aggregate), 4K30 4:4:4, 4K60 4:2:0 HD Resolutions VGA through WUXGA PCM2, PCM5.1, PCM7.1, Dolby5.1, DTS5.1, DD+, D-TrueHD, DTS-HD... - Page 20 © Copyright 2018. Hall Research, Inc. All rights reserved. 1163 Warner Ave., Tustin, CA 92780 Ph: (714)641-6607...
