Hall Research Technologies Genesis Series User Manual

16x16 and 8x8 vga/hdtv video matrix switch with front panel, rs232, and optional audio & ip control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

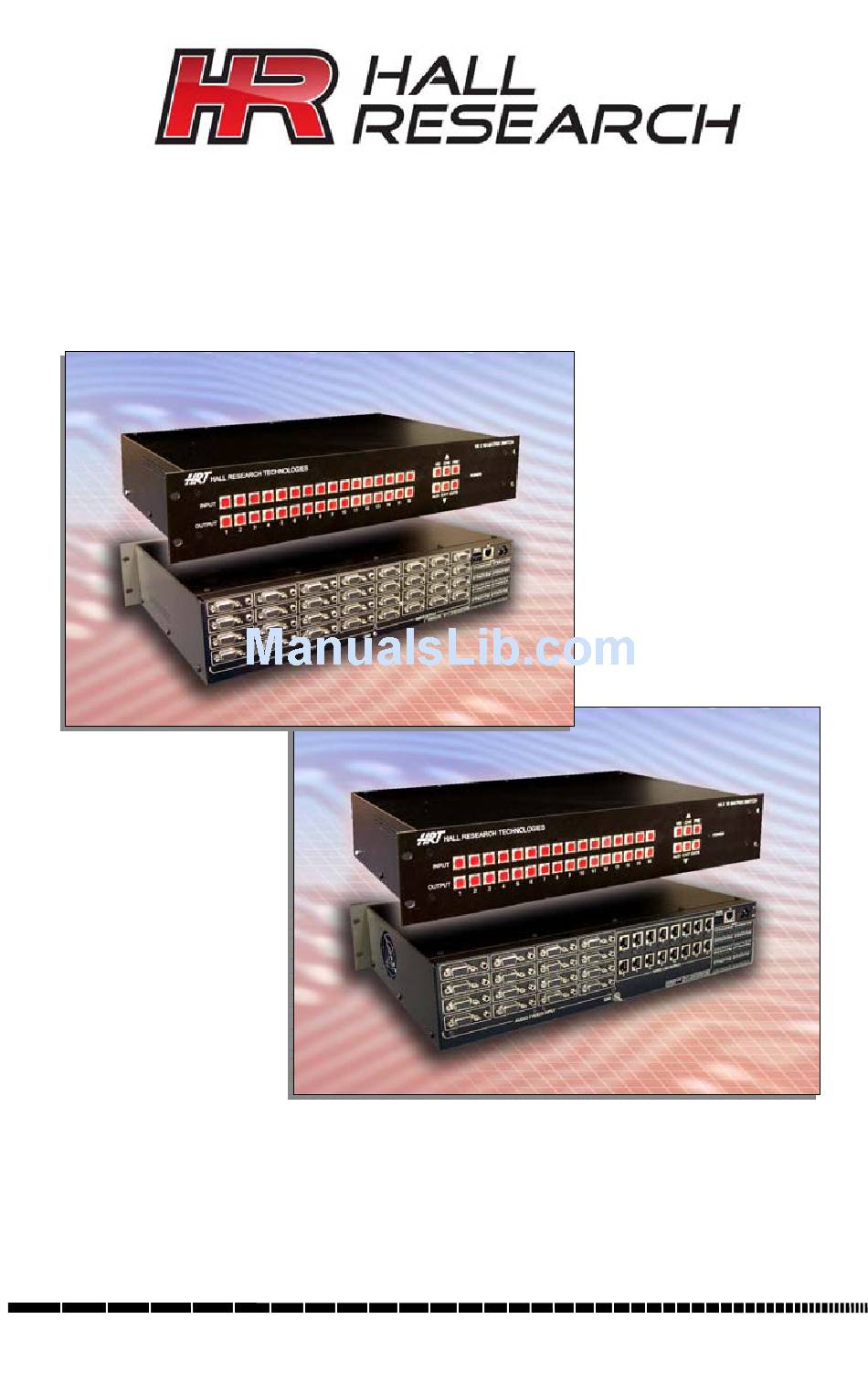

16x16 and 8x8 VGA/HDTV Video Matrix Switch with
Front Panel, RS232, and Optional Audio & IP Control
* This user's manual pertains to a variety of the Hall
Research Genesis™ Line of 16x16 and 8x8 matrix switches that
are constructed in a compact 2 RU chassis
