- Page 1 Installation Guide...
-
Page 2: Table Of Contents
Contents Components ............ Step 1 - Download the MyHeating App ..... Step 2 - Install the Boiler Receiver ......Step 3 - Mounting ..........Step 4 - Pairing the 4iE to the Boiler Receiver .... Step 5 - LED Indications ........Step 6 - Control in event of communication error .. -
Page 3: Components

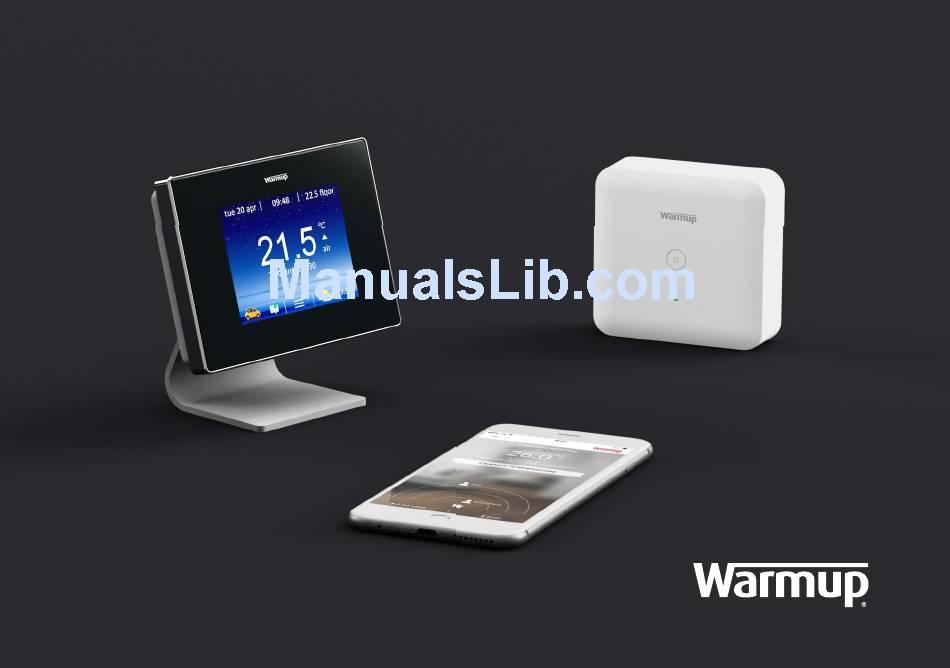

Kit for use with the 4iE Components Power Base Stand Boiler Receiver Power Adapter with 1m USB Cable... -
Page 4: Step 1 - Download The Myheating App
Step 1 - Download the MyHeating App... - Page 5 MyHeating app to your tablet or smartphone. Registration After the app has been successfully downloaded you will need to set up your MyWarmup account. The 4iE Device can be registered via the app or by visiting my.warmup.com...
-
Page 6: Step 2 - Install The Boiler Receiver
Step 2 - Install the Boiler Receiver... - Page 7 Kit for use with the 4iE Step 2 - Install the Boiler Receiver (Electrician Required) Before making any permanent fixtures Warmup recommends progressing through to ‘Step 4 - Pairing the 4iE & Boiler Receiver’ upon identifying preferred locations for the Boiler Receiver and Power Base.
- Page 8 Kit for use with the 4iE Step 2 - Install the Boiler Receiver (Electrician Required) The Boiler Receiver should be installed in the boilers vicinity. Large metal objects such as the boiler, hot water cylinder or radiators, should be at least 300mm away from the Boiler Receiver and not directly between it and the 4iE.
- Page 9 Kit for use with the 4iE Step 2 - Install the Boiler Receiver (Electrician Required) Wiring Diagrams...
- Page 10 Kit for use with the 4iE Step 2 - Install the Boiler Receiver (Electrician Required) After the Boiler Receiver has been wired correctly reattach the front panel to the back plate and tighten both screws to secure. Restore power to the boiler.
- Page 11 Step 3 - Assembly...
-
Page 12: Step 3 - Mounting
Kit for use with the 4iE For Stand Mount Step 3 - Mounting For optimal performance the thermostat should be located in an area with good ventilation. It should not be beside a drafty window/door, in direct sunlight or above another heat generating device (e.g. - Page 13 Kit for use with the 4iE For Wall Mount Step 3 - Mounting For optimal performance the thermostat should be located in an area with good ventilation. It should not be beside a drafty window/door, in direct sunlight or above another heat generating device (e.g.
- Page 14 Setup...
- Page 15 Kit for use with the 4iE Step 4 - Pairing the 4iE & Boiler Receiver Before pairing, please make sure the Power Base and Boiler Receiver are powered. The LED on the Boiler Receiver will flash in RED slowly. Power button Pairing Button Using a device, such as a...
-
Page 16: Step 4 - Pairing The 4Ie To The Boiler Receiver
Kit for use with the 4iE Step 4 - Pairing the 4iE & Boiler Receiver Wi-Fi override target until Warmup 21.0°C 15min back accept back accept The heating indicator Once the 4iE has To check that the system will appear on the 4iE,... -
Page 17: Step 5 - Led Indications
Kit for use with the 4iE LED Status Step 5 - LED Indications LED Colour Status Meaning Not lit Paired Green Lit constantly Relay on Flashing slowly Not paired Flashing quickly Relay off Lit constantly Communication Lost Relay on... -
Page 18: Step 6 - Control In Event Of Communication Error
Kit for use with the 4iE Step 6 - Control in event of communications error The Warmup +Kit for use with the 4iE has been designed to still provide heating control should the communication between the Power Base and Boiler Receiver be interrupted. -
Page 19: Step 7 - Address Setting
Kit for use with the 4iE Address Set-up Step 7 - Address setting When using multiple +Kit’s, each Power Base should be set to a unique address to prevent interference. Use the dip switches on the Power Base to select the unique address. 1 Represents ON (up) and 0 represents OFF (down). - Page 20 Kit for use with the 4iE Address Set-up Step 7 - Address setting...
-
Page 21: Troubleshooting
Troubleshooting... - Page 22 Kit for use with the 4iE Troubleshooting Is the +Kit compatible with Due to the large number of different boiler systems and wiring plans in use, Warmup cannot this heating system? guarantee compatibility with a particular system. Compatible with Combi and System boilers with 230VAC, volt-free or low voltage input up to 3A.
-
Page 23: Technical Specifications
Technical Specifications Power Base Dimensions (Assembled with 4iE face) 120 x 121.4 x 63.3mm Power Supply 5V DC, 300mA IP Rating IP30 Operational Temperature Range 0°C - 50°C Operational Humidity Range <95% RH Boiler Receiver Dimensions 86 x 86 x 26.5mm Power Supply 230V AC, 50Hz Fuse... - Page 24 (ii) contact Warmup. Warmup will determine whether the product should be returned, or replaced. This warranty does not cover removal or reinstallation costs, and shall not apply if it is shown by Warmup that the defect or malfunction was caused by failure to follow the instruction manuals, incorrect installation or damage which occurred while the product was in the possession of a consumer.
