Tamarack Technologies Infinity 2200 Product Manual & Installation Manual

Infinity 2200

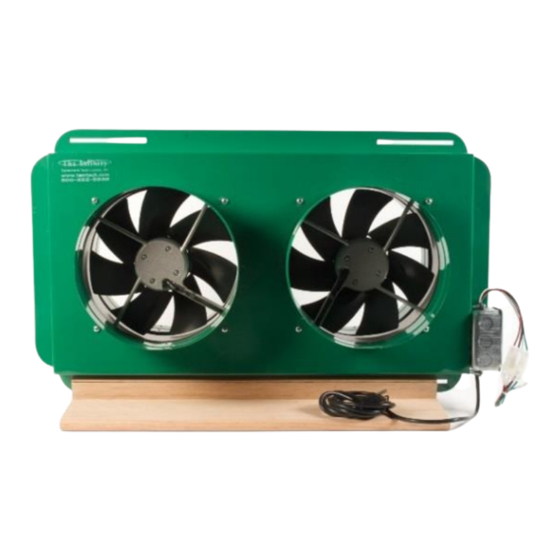

Infinity 2200 Ducted Whole House Fan
PRODUCT MANUAL & INSTALLATION GUIDE
WARNING
: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE
FOLLOWING:
●Use this unit in the manner intended by the manufacturer. If you have any questions contact the manufacturer.
●Before servicing or cleaning unit, switch power off at service panel and lock service panel to prevent power from being
switched on accidentally. When the service disconnect cannot be locked, securely fasten a prominent warning device, such
as a tag, to the service panel.
●When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities.
●Never place a switch where it can be reached from a tub or shower.
●Do not use this fan over a tub or shower.
●Do not use this fan over cooking appliances.
CAUTION: For General Ventilation Use Only. Do Not Use to Exhaust Hazardous or Explosive Materials and Vapors.
CAUTION: This unit has an unguarded impeller. Do Not Use in Locations Readily Accessible to People or Animals.
Material Included
(1) Infinity 2200 (with 6' line cord)
(1) 4 wire patch cable (attached)
(1) Hanger/Install Kit Containing:
(2) Mounting Bracket 5"L
(4) Screw, Wood 12 x 1-1/2
(4) Screw 10-32 x 1" PH
(4) Nut 10-32 w/Nylon Insert
(8) Washer 1/4" Flat
(4) Washer #10 Flat
SERIAL NUMBER_____________
DATE OF PURCHASE_____________
POINT OF PURCHASE_____________
READ AND SAVE THESE INSTRUCTIONS
Tools and Supplied Needed (not provided)

Screw Gun with Phillips Head Bit

Measuring Tape

Utility Knife

Jig Saw
(to create holes for external hoods)

Drywall Hand Saw

4 Lengths of 10" Diameter Duct (Flexible or Rigid)
determine length requirements for the installation

Duct Aluminum Tape or 10" Strap Band/Clamp

Siding Materials (shingles, flashing etc.)

(2) External 10" Vents/Hoods (sold separately)
20 Patterson Brook Rd / West Wareham, MA 02576
774-678-4433 / 800-222-5932 / Fax 774-678-4436
Inf22PG-3
Measure to
(to affix duct)
