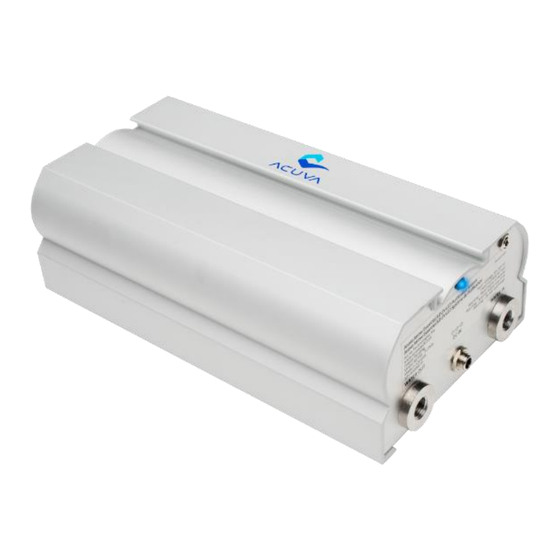

- Page 1 OWNER’S MANUAL Acuva Eco UV-LED Water Acuva Arrow 2 UV-LED Purification System Water Purification System...
-
Page 2: Safety Information And Warnings
• Do not connect to AC power without a power inverter; this device uses 12V DC only. • Do not plug the Arrow systems in backwards (The Eco can flow in either direction). • This product is not ignition protected. Do not install in the engine compartment or other areas where explosive vapours may be present. -
Page 3: Product Information
The quality of the input water is important as it influences the effectiveness of the system and the safety of the water. The input water should be from a potable cold-water source. Acuva purifiers are effective for microbial (viruses, bacteria, and protozoa) disinfection and a 5-micron filter is needed to remove sediments, chlorine, and particulate contamination from water. - Page 4 Status LED indicator Faucet indicator jack Fig. 2 : UV Device Components The Acuva UV Device is designed for automatic operation once the device is properly installed and used. See Fig. 3 for normal operation modes. Fig. 3 : Operation Modes When the device is first plugged into DC power, the unit will power up, turn on the blue light for 10 seconds, and the blue light will turn off as the system enters stand-by mode.
- Page 5 Acuva Eco requires a flow restrictor (Item No. 10 bellow). The Acuva Arrow has a built-in flow sensor and is activated with the flow of water while the Acuva Eco is manually activated with the Acuva Smart Faucet (Item No. 11 bellow).
- Page 6 9.a For the Eco: Cut a length of 1/4” PEX tubing that will connect the UV device and the faucet, install the flow restrictor (Item no.10) at a point on the ¼” PEX tube that is convenient, and proceed to the faucet installation.
-
Page 7: Final Installation Steps
At this point, the device is ready for regular use. 3. Maintenance The Acuva UV-LED Water Purification Systems are designed to give years of trouble free use. Using state-of-the-art long-life UV-LEDs, there are no mercury bulbs to replac. However, there are some simple tasks that should be performed to ensure continued trouble-free operation. -
Page 8: Troubleshooting
To prevent freezing, pump a non-toxic antifreeze into the water system or flush with compressed air. Open the point of use faucet connected to the Acuva device and pump non- toxic antifreeze or air until you see the antifreeze or air coming out of the faucet. In the spring, remember to flush with fresh water to clear the antifreeze before use. -
Page 9: Standard Terms And Conditions
5. Standard Terms and Conditions The sale and use of all Acuva products is governed by the Acuva Technologies Inc. Standard Terms and Conditions of Sale and Use (the “Agreement”), a copy of which is available at www.acuvatech.com. -
Page 10: Warranty
Limited Warranty. Where you purchased the Product from Acuva's Site or other online vendors the date of purchase is the date of the purchase invoice issued to you by Acuva or such online vendors by email. Where you purchased the Product from an authorized reseller at a physical location, the date of purchase is the date of the invoice issued to you at the physical location. - Page 11 7. Contacting Acuva You can contact Acuva as follows: Email: service@acuvatech.com Telephone: 1.800.980.8810 Mail: Acuva Technologies Inc., Suite 162, 2366 Main Mall Vancouver, British Columbia, Canada V6T 1Z4.
