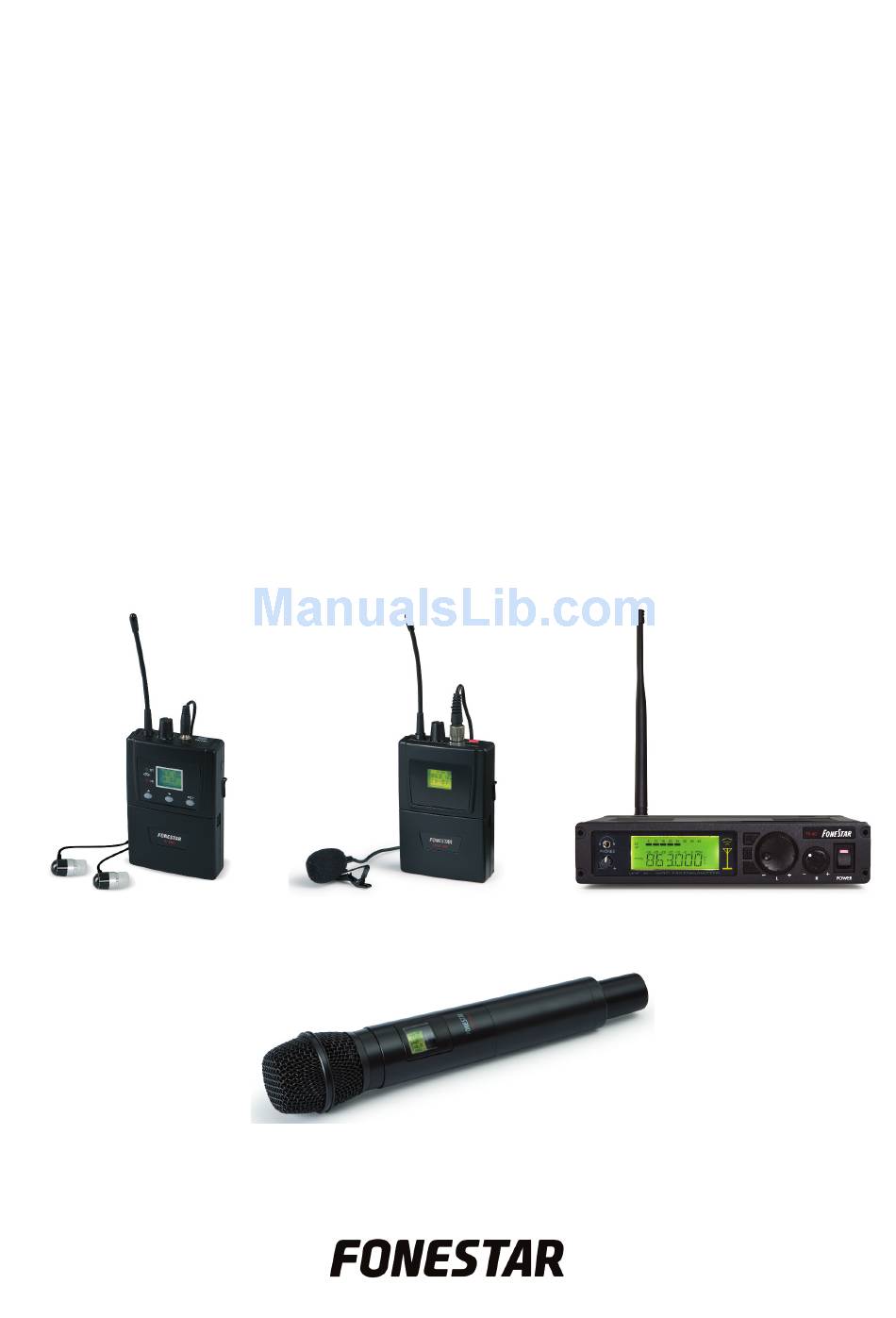

- Page 1 TMRI-844, TPRI-845, TSRI-841 WIRELESS PERSONAL MONITOR SYSTEM 40 PLL UHF 863-865 MHz CHANNELS INSTRUCTION MANUAL RI-840 MSHT-45P TSI-40 MSHT-40M...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions
DESCRIPTION Wireless personal monitor system for audio signal transmission in the band UHF 863-865 MHz. The system is composed of a wireless in ear belt-pack monitor receiver (mod. RI-840) with silicone rubber earphones and a wireless hand-held microphone transmitter (mod. MSHT-40M) or a tie-clip microphone (mod. MSHT-45P) with wireless belt-pack transmitter, depending on the model chosen. - Page 5 MSHT-40M Wireless hand-held microphone transmitter 1.- Grille: protects the microphone capsule and helps to reduce noises from breathing or the wind blowing. 2.- Display: displays information on the tuned frequency, channel number, battery level, RF signal level and audio signal level. If the battery level is low, the screen will light up red. 3.- Battery compartment: unscrew this cover to access the battery compartment.
- Page 6 MSHT-45P Tie-clip microphone with wireless belt-pack transmitter 1.- Display: displays information on the tuned frequency, channel number, battery level, RF signal level and audio signal level. If the battery level is low, the screen will light up red. 2.- w/s: allows selection of required optionsin order to configure the wireless belt-pack microphone. 3.- SET: allows selection among the different configuration options: channel number and frequency, RF transmission level (high/low), battery type selection (1.2 V - rechargeable/1.5 V - alkaline) to display the battery level correctly and lock the receiver.
-
Page 7: Front Panel
TSI-40 UHF transmitter for desktop or installing in 1 U 19" rack FRONT PANEL 1.- Headphone output volume control. 2.- Headphone output for monitoring the signal to be transmitted. 3.- Information display: displays information about input and output signals, frequency, etc. A. -
Page 8: Installation And Connection
INSTALLATION AND CONNECTION RI-840 Wireless in ear UHF belt-pack monitor receiver with earphones 1.- Insert the batteries in the battery compartment respecting the polarity indicated on it. If rechargeable batteries have been used, they can be recharged following the instructions in the Rechargeable battery section. - Page 9 INSTRUCTIONS FOR USE RF CHANNEL SELECTION FOR TRANSMISSION/RECEPTION The transmitter (hand-held microphone or belt-pack microphone) and the receiver (belt-pack in ear monitor) must be tuned to the same channel. Select a channel that is free of interference in the receiver and select the same channel in the transmitter.
-
Page 10: Troubleshooting
Wireless in ear belt-pack monitor receiver with 40 selectable PLL UHF 863-865 MHz channels. Reception with mono FM modulation. For use with the FONESTAR wireless in ear monitor system. Several receivers (RI-840) can be used in the same channel with one transmitter. - Page 11 TMRI-844 (transmitter: MSHT-40M + receiver: RI-840) Personal in ear monitor system for audio signal transmission in the UHF 863-865 MHz band. Composed of a wireless hand-held microphone transmitter (MSHT-40M) and a wireless in ear monitor belt- pack receiver (RI-840) with silicone rubber earphones. 40 selectable PLL UHF 863-865 MHz channels.
- Page 12 UHF transmitter for desktop or installing in 1 U 19" rack. 40 selectable PLL UHF 863-865 MHz channels. Transmission with mono FM modulation. For use with the FONESTAR wireless monitor in ear system. INPUTS 2 mic./L and R line, 6.3 mm jack 1 aux, 3.5 mm stereo jack...
-
Page 13: Declaration Of Conformity
DECLARATION OF CONFORMITY FONESTAR SISTEMAS S.A. Polígono de Trascueto s/n 39600 Revilla de Camargo, Cantabria (España) Declares, under its responsibility, that the following equipment: Description: Wireless UHF personal in ear monitor systems Brand: FONESTAR Models: TMRI-844, TPRI-845 comply with that shown in theEuropean Parliament and Council directive 1999/5/EC of 9th March 1999, transposed to Spanish legislation through the Real Decreto 1890/2000, on 20th November. -
Page 14: Warranty
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out. - Page 15 - 15 -...
- Page 16 www.fonestar.com...
