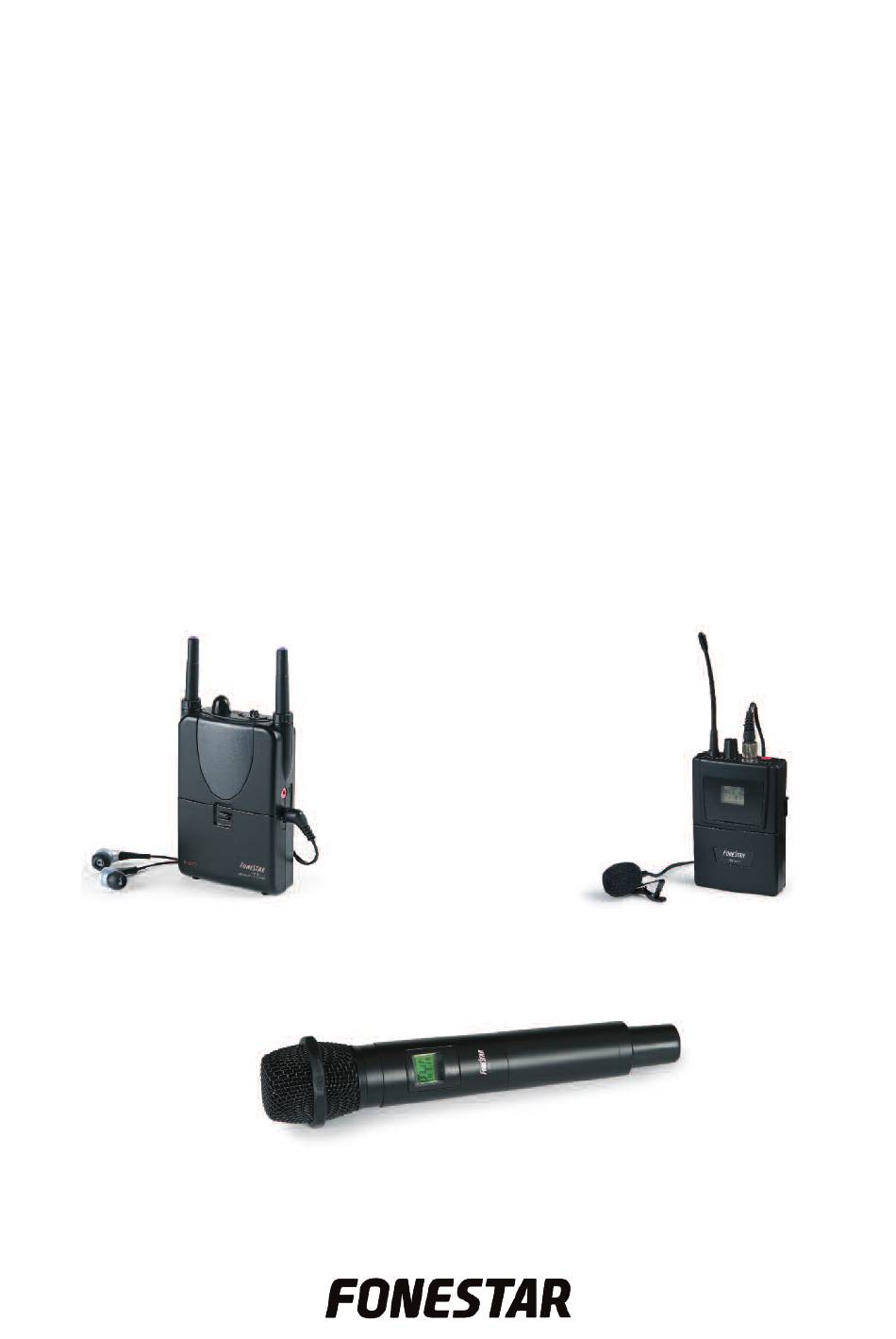

- Page 1 TMRI-806, TPRI-807 WIRELESS PERSONAL MONITOR SYSTEM 16 PLL UHF 863-865 MHz CHANNELS INSTRUCTION MANUAL RI-800 TPI-817 TMI-816...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. -
Page 4: Controls And Functions
(mod. TMI-816) or a tieclip microphone (mod. TPI-817) with wireless belt-pack transmitter, depending on the model chosen. The system has 16 transmission channels on the band UHF 863-865 MHz, with PLL frequency control that allows an interference-free channel to be easily selected. - Page 5 TMI-816 Wireless hand-held microphone transmitter 1.- Grille: protects the microphone capsule and helps to reduce noise from breathing and gusts of wind. 2.- Display: shows information on the tuned frequency, channel number, battery level, RF signal level and audio signal level. If the battery level is low, the display lights up red. 3.- Battery compartment lid: unscrew this lid to access the battery compartment.
- Page 6 TPI-817 Tie-clip microphone with wireless belt-pack transmitter 1.- Display: shows information on the tuned frequency, channel number, battery level, RF signal level and audio signal level. If the battery level is low, the display will light up red. 2.- w/s: for selecting the required options for setting the wireless belt-pack microphone.
-
Page 7: Installation And Connection
INSTALLATION AND CONNECTION RI-800 UHF Diversity in ear monitor belt-pack receiver with earphones 1.- Insert the batteries in the battery compartment respecting the polarity shown in it. If you have used rechargeable batteries, you can recharge them following the indications in the Rechargeable batteries section. - Page 8 TPI-817 Tie-clip microphone with wireless belt-pack transmitter 1.- Insert the batteries in the battery compartment respecting the polarity shown in it. If you have used rechargeable batteries, you can recharge them following the indications in the Rechargeable batteries section. 2.- Connect the tie-clip microphone or the required audio source.
- Page 9 LED CHARGE indicator will light up in red. When the charging process has finished, the LED FULL indicator will light up green. TPI-817 Tie-clip microphone with wireless belt-pack transmitter Place the microphone in the corresponding compartment in the MSC-2 recharge docking station. In order to insert the wireless belt-pack transmitter, remove the plastic adapter first.
-
Page 10: Troubleshooting
RI-800 CHARACTERISTICS Wireless UHF in ear diversity belt-pack monitor receiver with earphones. For use with the FONESTAR wireless in ear monitor system. Possibility to use various receivers (RI-800) with a hand-held transmitter (TMI-816) or belt-pack (TPI-817) in the same channel RESPONSE Earphones: 100-10,000 Hz (±3 dB) - Page 11 Wireless personal in-ear monitor system for transmitting the audio signal in the UHF 863-865 MHz band. Composed of a tie-clip microphone with wireless belt-pack transmitter (TPI-817) and a wireless belt-pack in- ear monitor receiver (RI-800) with earphones with silicone ear-tips.16 selectable UHF 863-865 MHz channels.
-
Page 12: Declaración De Conformidad
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre.
