Summary of Contents for FONESTAR MSH-206, MSH-209

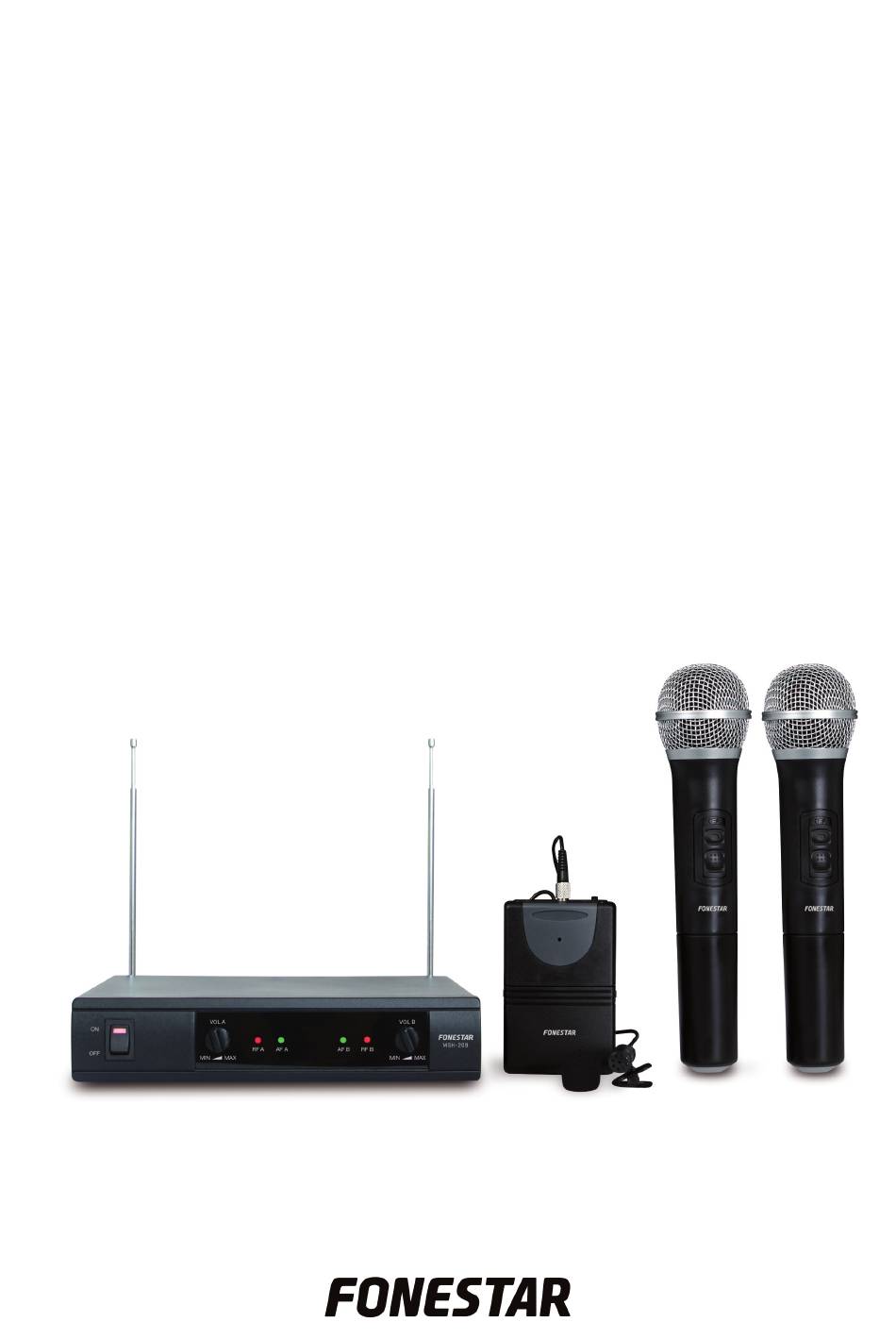

- Page 1 MSH-206, MSH-209 WIRELESS VHF HAND-HELD MICROPHONE SYSTEMS INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
- Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

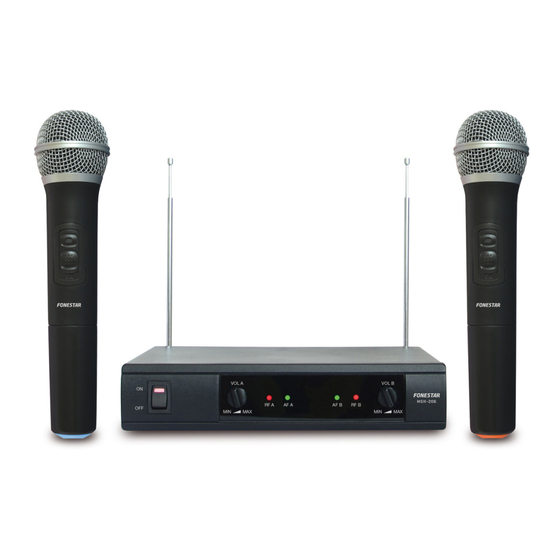

- Page 4 DESCRIPTION Wireless microphone system for audio signal transmission on the VHF band 174-194 MHz. Composed of a double receiver and two wireless hand-held microphones or one tie-clip microphone with wireless belt-pack transmitter and one wireless hand-held microphone depending on the model. The system has 4 transmission channels on the VHF band 174-194 MHz, with fixed to quartz frequency control and volume control.
- Page 5 HAND-HELD MICROPHONE 1.- Battery compartment cover. Unscrew this cover to access the battery compartment. Use two batteries type LR-6AA, preferably alkaline. When inserting the batteries, make sure that the polarity is correct. 2.- Power switch. It has 3 positions, ON , STANDBY (central position) and OFF . Place it in the ON position to operate.
- Page 6 INSTRUCTIONS FOR USE 1.- Connect the receiver to 12-18 V DC using the mains adapter supplied with the device. 2.- Place the extendable aerials in a vertical position and extend them fully for better reception. 3.- Connect the receiver’s unbalanced audio output MIXED OUT to the input of an amplifier, mixer, etc., using, if you wish, the 6.3 mm jack audio cable provided.
-
Page 7: Technical Specifications
TECHNICAL SPECIFICATIONS MSH-206 MSH-209 Compact VHF receiver 174 to 194 MHz. CHARACTERISTICS Compact VHF receiver 174 to 194 MHz. Fixed to quartz frequency control. Fixed to quartz frequency control. Volume control. Volume control. Unbalanced output. Unbalanced output. 1 hand-held microphone and 1 tie-clip 2 wireless hand-held microphones microphone with... -
Page 8: Declaration Of Conformity
2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it.
