Related Manuals for Moxa Technologies MPC-2000 Series
Summary of Contents for Moxa Technologies MPC-2000 Series

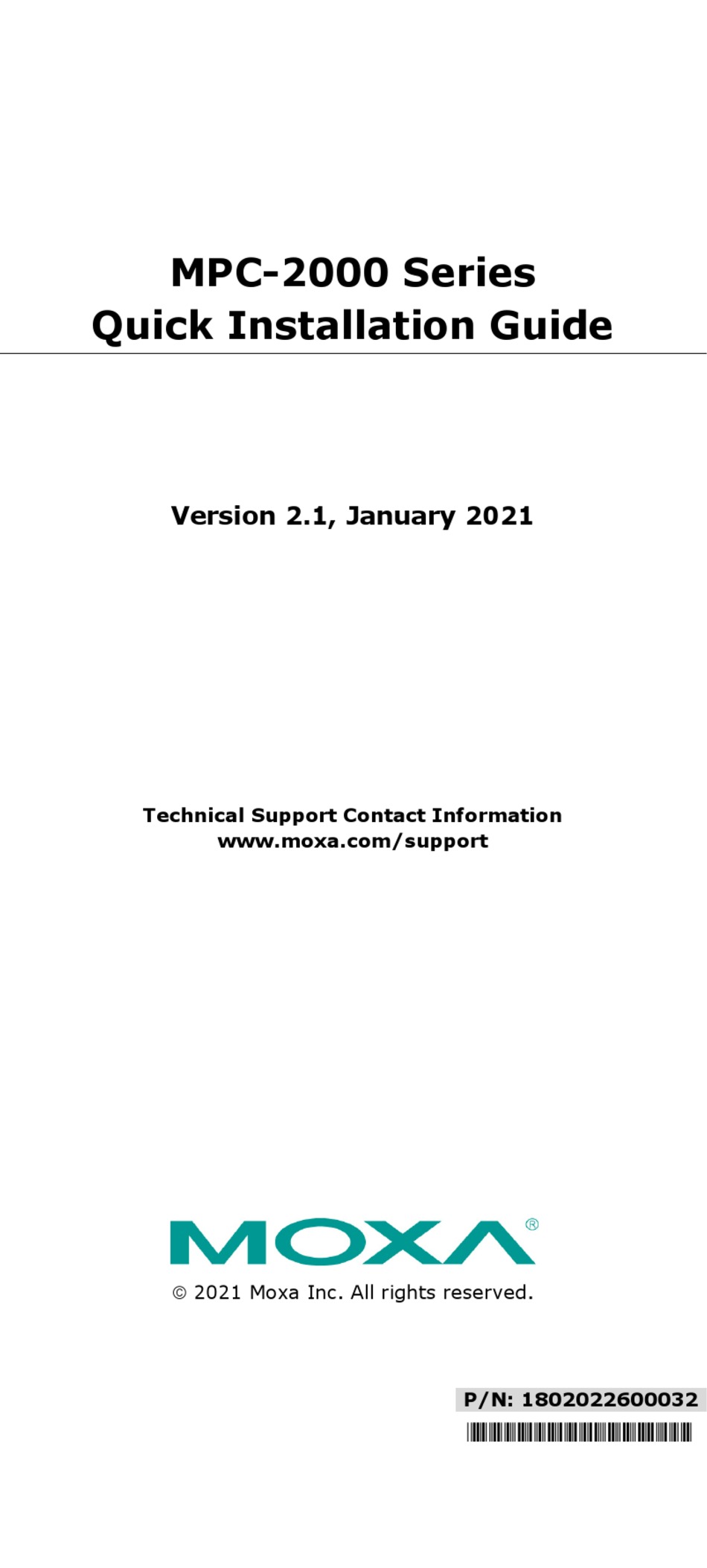

- Page 1 MPC-2000 Series Quick Installation Guide Version 2.1, January 2021 Technical Support Contact Information www.moxa.com/support 2021 Moxa Inc. All rights reserved. P/N: 1802022600032 *1802022600032*...
- Page 2 With its RS-232/422/485 serial, NMEA 0183, and Gigabit Ethernet LAN ports, the MPC-2000 series supports a wide variety of serial- and marine-specific interfaces with high-speed network communications and native network redundancy.
- Page 3 SavvyTouch Display Control Buttons The following table describes the SavvyTouch display controls on the front panel of the MPC-2000 series. These intelligent controls will light up with a simple wave over the area of the screen where they are located.
- Page 4 Use the short M4 SUS screws to fasten the clamp arms to the MPC-2000 series mounting slots, as shown in the following figure. Next, use the clamps to fasten the MPC-2000 series to its mounting point; note the torque value as shown in the figure.
- Page 5 An additional four screws (not included in the kit) are required to mount the MPC-2000 series on a VESA rack. For this purpose, use M6 screws with a length between 10 and 12 mm. Connector Description...
- Page 6 Serial Ports The MPC-2000 series has two software-selectable RS-232/422/485 DB9 serial ports. Refer to the MPC-2000 Series Hardware Manual for information on serial port configuration. The pin assignments for the ports are shown in the following table. RS-485 RS-485 RS-232...
- Page 7 It takes about 10 to 30 seconds for the system to boot up. To power off the MPC-2000 series, touch the MENU button for four seconds; depending on the power management settings of the operating system, you can select the “standby”, “hibernation”, or “system...
