Moxa Technologies EXPC-1319-STS-W7E Quick Installation Manual

EXPC-1319 Series
Panel Computer

Quick Installation Guide

First Edition, July 2013

1. Overview

EXPC-1319 panel computers are fanless, durable devices made for
both indoor and outdoor hazardous environments. The EXPC-1319
series features the Intel Atom dual core D525 1.8 GHz processor,
with up to 4 GB of memory available to deliver high performance
processing for the sorts of hazardous environments found in oil
and gas fields.

2. Model Names and Package Checklist

The EXPC-1319 Series includes the following models:
EXPC-1319-STS-W7E: Fanless, industrial-rugged Zone 2

19-inch 1000 nits LCD panel computer, single point touch
screen, IP66, dual core Atom D525 CPU, -20 to 60°C operating
temperature
EXPC-1319-STS-IHS-W7E: Fanless industrial-rugged Zone

2 19-inch 1000 nits LCD panel computer, single point touch
screen, IP66, dual core Atom D525 CPU, -40 to 60°C operating
temperature, with Intelligent Heating Solution (IHS)
EXPC-1319-MTS-W7E: Fanless industrial-rugged zone 2

19-inch 1000 nits LCD panel computer, multi point touch
screen, IP66, dual core Atom D525 CPU, -20 to 60°C operating
temperature (available on request)
EXPC-1319-MTS-IHS-W7E: Fanless industrial-rugged Zone

2 19-inch 1000 nits LCD panel computer, multi point touch
screen, IP66, dual core Atom D525 CPU, -40 to 60°C operating
temperature, with Intelligent Heating Solution (IHS) (available
on request)
Each basic system model is shipped with following standard items:
1 EXPC-1319 panel computer

Quick Installation Guide

Documentation & Software DVD

Ethernet Cable: RJ45 to RJ45 cross-over cable, 100 cm

Waterproof USB connector pack x 2

Waterproof DB9 connector pack x 2

Waterproof LAN connector pack x 2

Waterproof power connector pack x 1

Wall mounting kit

Warranty statement

P/N: 1802013190010
– 1 –

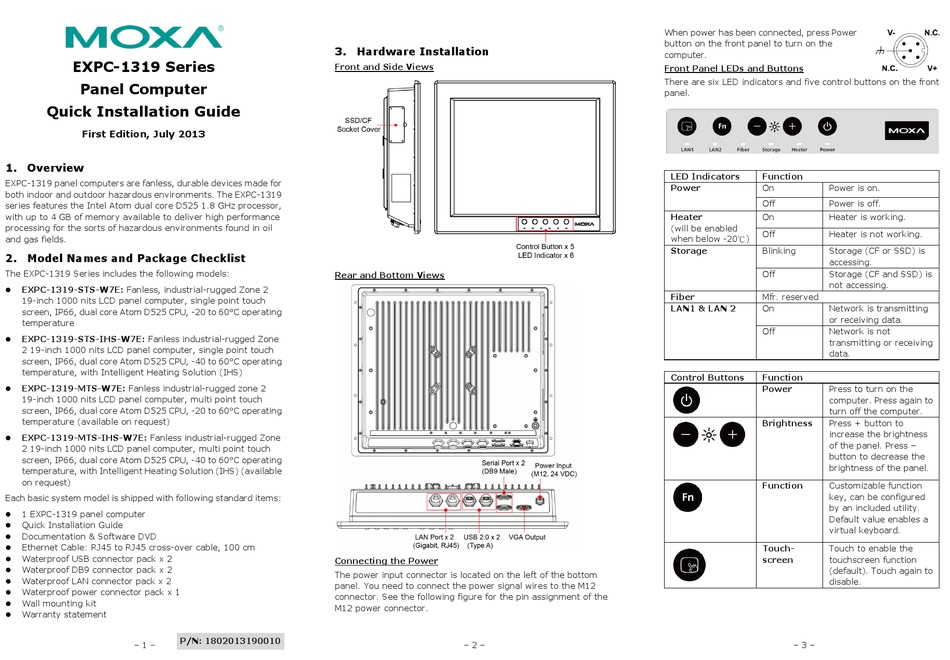

3. Hardware Installation

Front and Side Views
Rear and Bottom Views

Connecting the Power

The power input connector is located on the left of the bottom
panel. You need to connect the power signal wires to the M12
connector. See the following figure for the pin assignment of the
M12 power connector.
– 2 –
When power has been connected, press Power
button on the front panel to turn on the
computer.

Front Panel LEDs and Buttons

There are six LED indicators and five control buttons on the front
panel.
LED Indicators Function
Power On Power is on.
Off Power is off.
Heater On Heater is working.
(will be enabled
Off Heater is not working.
when below -20℃)
Storage Blinking Storage (CF or SSD) is
accessing.
Off Storage (CF and SSD) is
not accessing.
Fiber Mfr. reserved
LAN1 & LAN 2 On Network is transmitting
or receiving data.
Off Network is not
transmitting or receiving
data.
Control Buttons Function
Power Press to turn on the
computer. Press again to
turn off the computer.
Brightness Press + button to
increase the brightness
of the panel. Press –
button to decrease the
brightness of the panel.
Function Customizable function
key, can be configured
by an included utility.
Default value enables a
virtual keyboard.
Touch-
Touch to enable the
screen touchscreen function
(default). Touch again to
disable.
– 3 –
